Chauvin Arnoux CA8333 Qualistar+ Power Quality Analyser (Choice of Kit)

SKU: CHAUCA8333
  • Provides comprehensive diagnostics of electrical systems
  • Includes transient and inrush modes
  • Handheld design with PC connectivity, full colour screen & more
  • 'Try Before You Buy' available on this product
More Info
Typically ships in 2-4 working days
Choose Your Free Gift

Chauvin Arnoux CA8333 Qualistar+ Power Quality Analyser

Simple to use and offering full diagnostics on electrical systems, the Chauvin Arnoux CA8333 Qualistar+ is a multifunctional power quality analyser helping to identify energy losses & complex systems, allowing corrective action against incorrect power quality.

Displaying results on a full-colour screen with an intuitive interface, the Chauvin Arnoux CA8333 Qualistar+ offers a range of functionality, including the option to carry out a single test or measure over a period of time.

The Chauvin Arnoux CA8333 Qualistar+ is the upgrade of CA8331, including new features such as a transient mode (up to 50) and inrush mode on 4 periods. It also comes with user-configured alarms and can record data from a few days to several weeks.

Chauvin Arnoux Clamp Comparison table

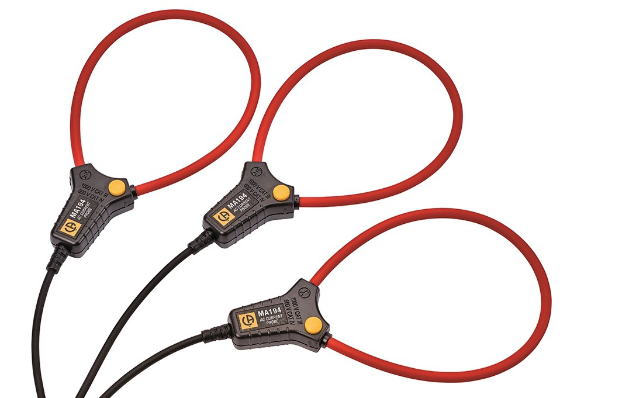

The Chauvin Arvoux CA8333 is available as a standalone unit or with a choice of either the MA194-350 or A193-450 Clamps. Please select from the drop down box at the top of the page to determine how you would like your analyser shipped. Below is a table outlining the differences between the two available clamps;

  MA194-350 A193-450 Clamps
IEC 61010 1,000V CAT III / 600V CAT IV 1,000V CAT III / 600V CAT IV
Rating 200mA to 10kAac 100 mA to 10 kAac
Overall Length 350 mm 450 mm
Closed Diameter Ø 100 mm 140 mm

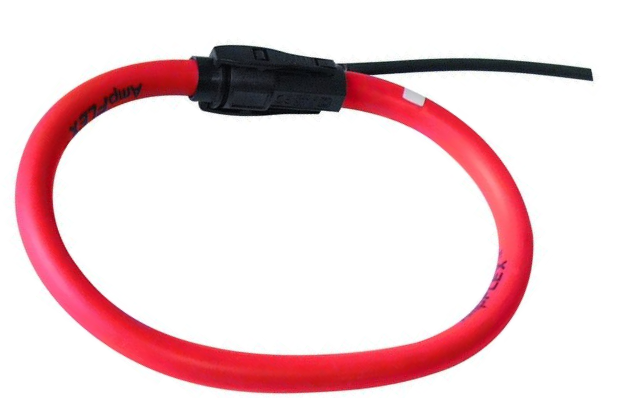

The CA8333 Qualistar+ Power Analyser is compatible with a range of Chauvin Arnoux clamps, with the manufacturer recommending their MN93, MN93A, MA193, PAC93, A193-450, A193-800, C193 and E3N current clamps to carry out current measurements.

Model Measurement Range Clamping Ø / Length IEC 61010
MN93 500mA to 200A AC 20mm 600V CAT III / 300V CAT IV
MN 93A 0.005A to 100A AC 20mm 600V CAT III / 300V CAT IV
MA193 100mA to 10kA AC Ø 70 mm / 220 mm 1,000V CAT III / 600V CAT IV
PAC93 1A to 1,000A AC, 1A to 1,300A DC 1 x Ø 39mm, 2 x Ø 25mm 600V CAT III / 300V CAT IV
A193-450 & A196-450* 100mA to 10kA ac Ø 140mm / 450mm 1,000V CAT III / 600V CAT IV
A193-800 100mA to 10kA AC Ø 250mm / 800mm 1,000V CAT III / 600V CAT IV
C193 1A to 1,000A AC 52mm 600V CAT IV
E3N 50mA to 10A AC/DC, 100mA to 100A AC/DC 11.8mm 600V CAT III / 300V CAT IV

*A196-450 is IP67-rated version of A193-450 clamps, suitable for use with the CA8435.

Below, we have included a comparison table showing the key features of each of the Chauvin Arnoux CA series analyers. This table is intended to help you make an informed purchasing decision.

  CA 8331 CA 8333 CA 8336 CA 8436
# of channels 3U/4I 3U/4I 4U/4I 4U/4I
# of inputs 4V/3I 4V/3I 5V/4I 5V/4I
IEC 61000-4-30 N/A EN50160 reports EN50160 reports EN50160 reports
Voltage (TRMS AC+DC) 2V - 1000V 2V - 1000V 2V - 1000V 2V - 1000V
Voltage ratio Up to 500kV Up to 500kV Up to 500kV Up to 500kV
Current (TRMS AC+DC)
MN clamps MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC
C193 clamps 1A to 1,000 AAC 1A to 1,000 AAC 1A to 1,000 AAC 1A to 1,000 AAC
AmpFlex or MA clamps 100mA to 10,000AAC 100mA to 10,000AAC 100mA to 10,000AAC 100mA to 10,000AAC
PAC93 clamp 1A to 1,300 AAC/DC 1A to 1,300 AAC/DC 1A to 1,300 AAC/DC 1A to 1,300 AAC/DC
E3N clamp 50mA to 100 AAC/DC 50mA to 100 AAC/DC 50mA to 100 AAC/DC 50mA to 100 AAC/DC
J93       50A to 3,500 AAC/5000 ADC
Current ratio Up to 60kA Up to 60kA Up to 60kA Up to 60kA
Frequency 40Hz to 69Hz 40Hz to 69Hz 40Hz to 69Hz 40Hz to 69Hz
Power W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f W (P), VA (S), var (N, Q1, D), PF, DPF, cos f, tan f
Energy Wh, varh (Nh, Q1h, Dh), VAh Wh, varh (Nh, Q1h, Dh), VAh Wh, varh (Nh, Q1h, Dh), VAh Wh, varh (Nh, Q1h, Dh), VAh
Harmonics
THD ✔ (0-50th order) ✔ (0-50th order) ✔ (0-50th order) ✔ (0-50th order)
Expert Mode
Transients   50 210 210
Flicker PST PST PST & PLT PST & PLT
Unbalance Yes Yes Yes Yes
Recording - min/max Yes Yes Yes Yes
of a selection of parameters at max. sampling rate 4 hrs to 2 weeks Afew days to sevearl weeks 2 weeks to several years 2 weeks to several years
Alarms   4000 to 10 different types 10000 to 40 different types 10000 to 40 different types
Peak Yes Yes Yes Yes
Vectorial representation Automatic Automatic Automatic Automatic
Display Colour 1/4 VGA TFT - 320 x 240 Colour 1/4 VGA TFT - 320 x 240 Colour 1/4 VGA TFT - 320 x 240 Colour 1/4 VGA TFT - 320 x 240
Capture of screens & curves 12 12 50 50
Electrical safety IEC 61010 1 000 V CAT III / 600 V CAT IV IEC 61010 1 000 V CAT III / 600 V CAT IV IEC 61010 1 000 V CAT III / 600 V CAT IV IEC 61010 1 000 V CAT III / 600 V CAT IV
Ingress protection IP53 IP53 IP53 IP67
Languages 27+ 27+ 27+ 27+
Battery life up to 13 hours up to 13 hours up to 13 hours up to 13 hours
Interface USB USB USB USB
Power supply 9.6 V NiMH battery or mains power supply 9.6 V NiMH battery or mains power supply 9.6 V NiMH battery or mains power supply 9.6 V NiMH battery or mains power supply
EN50160 report   Yes - DataView Software Yes - DataView Software Yes - DataView Software
Dimensions/weight 240 x 180 x 55 - 1.9kg 240 x 180 x 55 - 1.9kg 240 x 180 x 55 - 1.9kg 270 x 250 x 180mm / 3.7kg
Warranty 3 years 3 years 3 years 3 years



We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.

Chauvin Arnoux DataView® Software

The Chauvin Arnoux CA8333 is compatible with the Chauvin Arnoux DataView® Software that allows for the configuration of instruments and performing measurements. Recorded data can be recovered with standard or customisable reports generated. The software will automatically recognise the instrument connected, when connected to a PC, the user will have direct access to any data recorded on the instrument, its configuration and data shown in real time.

Further features include;

  • The ability to zoom onto graphs for more detailed analysis
  • Display various recorded parameters on request
  • Export any stored measurements into Excel
  • Linking and integration of objects (OLE)
  • Automatically links the address details of customers and work sites
  • Database measurement
  • Configurations of alarms, transients and trends
  • Backup of measurement files
  • Export in .pdf format
  • Database management

Chauvin Arnoux CA8333 Key Features

  • Complete power quality management system, capturing all parameters, transients, alarms and waveforms simultaneously
  • Features automatic recognition of current sensors
  • 4 voltage inputs and 3 current inputs
  • Measures frequency, Power, Energy, Harmonics, Transients, Flicker, Inrush and more
  • Displays data on high-quality colour screen
  • Capture up to 12 screens and curves
  • IEC 61010 CAT III 1000V, CAT IV 600V safety ratings
  • MIN/MAX recording
  • Compatibility with a wide selection of Chauvin Arnoux clamps

What's In The Box?

  • Chauvin Arnoux CA8333 Qualistar+ Power Quality Analyser
  • 5 x 4mm Banana Voltage Leads (3m)
  • 5 x Crocodile Clips
  • 12 x Colour Inserts/Rings for Lead/Input Identification
  • Scratch-Proof Screen Protection Film
  • USB Cable
  • Mains Power Cable
  • Mains Power Pack
  • Safety Datasheet
  • Multi-Language Operating Manual CD
  • PC Data Retrieval Software (Power Analyser Transfer)
Specification
Model:  CA 8331   C.A 8333   C.A 8336   C.A 8435
Number of Channels 3U/ 4I 4U/4I
Number of Inputs 4V/3I 5V/4I
Voltage (TRMS AC + DC) 2V to 1000V
Voltage Ratio up to 500kV
Current (TRMS AC+DC)
 (Range dependant on clamp used -  sold separately)

MN93 Clamps  MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Clamp 1A to 1000A AC
AmpFLEX or MA193 Clamps 100mA to 10000A AC 30A to 6500A AC
PAC93 1A to 1300A AC/DC
E3N 50mA to 100A AC/DC
Current Ratio Up to 60kA
Frequency 40Hz to 69Hz
Power Values W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values Wh, varh, VAh, VADh
Harmonics Yes
THD Yes, orders 0 to 50, phase
Expert Mode - Yes
Transients - 50 210
Flicker (Pst & Plt) Yes
Inrush Mode -  Yes on 4 periods  Yes > 10 minutes
Unbalance Yes
Recording MIN/MAX Yes
Recording of a selection of parameters at the max sampling rate  4 hours to 2 weeks   Few days to several weeks  2 weeks to several years
Alarms - 4000 of 10 different types 10000 of 40 different types
Peak Yes
Vectorial Representation Automatic
Display Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves 12 50
Electrical Safety IEC 61010 1000V, CAT III / 600V CAT IV
Protection IP53 / IK08 IP67
Languages More than 27
Communication Interface USB
Battery Life Up to 13 Hours
Power Supply 9.6V NiMH rechargeable battery or external mains charger
Dimensions 240 x 180 x 55mm  270 x 250 x 180mm
Weight 1.9kg 3.7kg
Label Type Size Download
pdf Chauvin Arnoux Qualistar Spec pdf 4.1 MB Download
pdf Chauvin Arnoux Power Energy Loggers pdf 339.5 KB Download
