ETI 9215 Differential Manometer

ETI
SKU: ETI9215
  • Measures differential or gauge pressure from -1034mbar to +1034mbar
  • Choice of 11 different units with min/max recording and data hold
  • IP65 rating thanks to ASB housing and watertight rubber seal
More Info
In Stock - Available Next Day

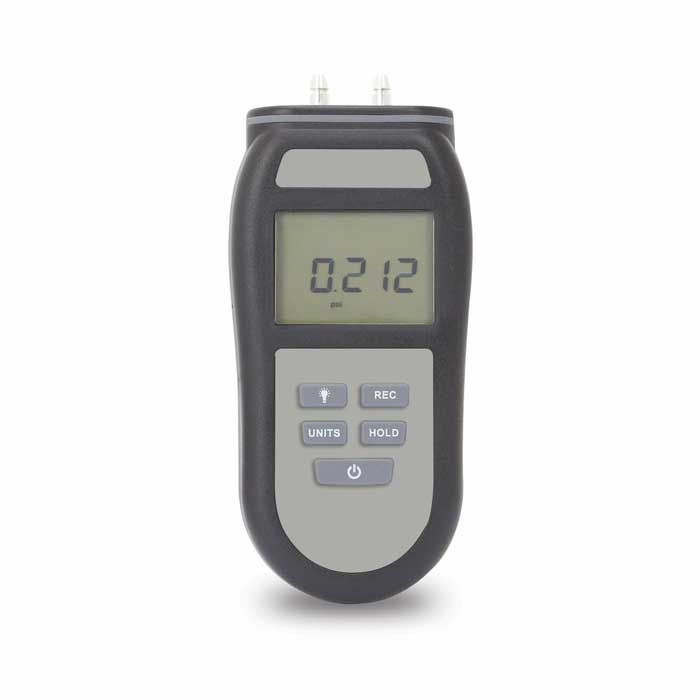

ETI 9215 Differential Manometer

The ETI 9215 Differential Manometer has a differential/gauge pressure measurement range of -1034mbar to +1034mbar with readings that are accurate to ±0.3% and precise to 1mbar. Readings have a repeatability of ±2% and it has multiple applications across various different sectors e.g. HVAC, gas systems and industrial systems.

The ETI 9215 has a clear digital display with backlighting and a choice of 11 different units of pressure. Readings from both pressure hoses and a differential pressure reading can be shown on screen and there is a display hold function that freezes a reading on screen. Min/max recording is also available.

A 100-hour battery life makes the ETI 9125 extremely practical and it has tough ABS housing and an IP65-rated waterproof seal. Two 500mm hoses are supplied as standard and the manometer is also covered by a two-year warranty.

9200 Series Pressure Meters Comparison table

  ETI 9205 ETI 9215 ETI 9230 ETI 9275
Range & Resolution - psi:

Range: ±5,    Resolution: 0.001

Range: ±15,    Resolution: 0.01

Range: ±30,    Resolution: 0.01

Range: ±75,  Resolution: 0.1
Range & Resolution - inH2O: Range: ±138.4, Resolution: 00.1 Range: ±415.2, Resolution: 0.1 Range: ±830.4, Resolution: 1 Range: ±2076, Resolution: 1
Range & Resolution - mbar: Range: -334.7 to +344.7,          Resolution: 0.1 Range: -1034.2 to +1034.2,          Resolution: 1 Range: -2068.4 to +2068.4,          Resolution: 1 Range: -5171 to +5171,        Resolution: 1
Range & Resolution - kPa: Range: ±34.47, Resolution: 0.01 Range: ±103.4, Resolution: 1 Range: ±206.8, Resolution: 0.1 Range: ±517.1, Resolution: 0.1
Range & Resolution - inHg Range: ±10.18, Resolution: 0.001 Range: ±30.54, Resolution: 0.01 Range: ±61.08, Resolution: 0.01 Range: ±152.7, Resolution: 0.1
Range & Resolution - mmHg: Range: ±258.5, Resolution: 0.1 Range: ±775.7, Resolution: 0.1 Range: ±1551.4, Resolution: 1 Range: ±3879, Resolution: 1
Range & Resolution - ozin2: Range: ±80,      Resolution: 0.01 Range: ±240, Resolution: 0.1 Range: ±480, Resolution: 0.1 Range: ±1200, Resolution: 1
Range & Resolution - ftH2O: Range: ±11.53, Resolution: 0.001 Range: ±34.60, Resolution: 0.01 Range: ±69.20, Resolution: 0.01 Range: ±173.0, Resolution: 0.1
Range & Resolution - cmH2O: Range: ±351.5, Resolution: 0.1 Range: ±1055, Resolution: 1 Range: ±2109, Resolution: 1 Range: ±5273, Resolution: 1
Range & Resolution - kgcm2: Range: ±0.351, Resolution: 0.001 Range: ±1.055, Resolution: 0.001 Range: ±2.109, Resolution: 0.001 Range: ±5.273, Resolution: 0.001
Range & Resolution - bar: Range: ±0.344, Resolution: 0.001 Range: ±1.034, Resolution: 0.001 Range: ±2.068, Resolution: 0.001 Range: ±5.171, Resolution: 0.001
Accuracy ±0.5%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C
Two 500mm long x 6mm ID connection hoses with batteries ✔
Two 300mm long x 4mm ID hoses with batteries   ✔ ✔ ✔

ETI part number: 825-915

Key Features

  • Range: -1034mbar to +1034mbar
  • Resolution: 1mbar
  • Accuracy: ±0.3%
  • Differential and gauge pressure
  • Records min/max values
  • IP65-rated ABS casing with rubber seal
  • 2 x 500mm hoses supplied
  • Two-year warranty
Specification
  • Range: -1034mbar to +1034mbar
  • Resolution: 1mbar
  • Accuracy: ±0.3% FS (25˚C)
  • Units: psi, inH2O, mbar, kPa, inHg, mmHg, ozin2, ftH2O, cmH2O, kgcm2, bar
  • Repeatability: ±0.2% (Max. 0.5% FS)
  • Battery: 3 x 1.5V AAA
  • Battery life: 100 hours
  • Display: Custom LCD
  • Dimensions: 32mm x 71mm x 141mm
  • Weight: 220g
