Fluke 1674FC Multifunction Tester

Fluke 1674FC Multifunction Tester

The Fluke 1674FC Multifunction Tester boasts a full colour screen with a rotary dial to easily navigate the the menu to enable fast and reliable testing in domestic, commercial and industrial settings to IEC/HD 60364-6 requirements . The 1674FC provides a number of tests that the other 167X series testers cannot perform. These include the insulation monitoring device (IMD), the Surge protection Device (SPD) tests and Loop and line impedance — mΩ resolution.

Perform All Required Tests up to 30% Faster

The Fluke 1674FC includes the Auto Test Function, that allows for the entire installation test sequence to be completed at the touch of a button reducing the time-consuming process by reducing repetitive and manual test setups that can be frustrating and introduce the opportunity for errors. Automatic measurement validation with user defined limit warnings compares the test results to the required standards and provide an immediate pass/fail indication. Eliminating manual testing and automating measurement validation means testing can be up to 30% faster, allowing for more time to focus on other tasks and whilst increasing productivity. A number of other tests that can be conducted by the 1674FC include, resistance, loop and line impedance, tripping speed, Wiring polarity checker, detects broken PE and N wires, prospective Earth Fault Current (PEFC/IK)and Prospective Short-Circuit Current (PSC/IK). Continuity testing with a low test current (10mA) that can be used to measure motor windings.

Simplified User Interface and Testing Setup

The Fluke 1674FC provides users with a streamlined test set up and preparation that uses the testers bidirectional user interface. Using hierarchical tree topology for clients, sites, distribution boards, circuits and test points that are fully customisable using the colour touchscreen, a smart device or PC. Editing, adding, deleting or alter information directly on the 1674FC to ensure accurate data is captured. Test tables can be produced to enable capturing the right measurement data is captured at the right time, every time. Saving time setting up the tester and organising measurement data, allows for valuable testing to be conducted.

High current loop mode allows for faster measurements on loop tests with non trip mode for RCD protected circuits. The trip time and current for RCD types AC, A and F can all be completed in a single test and smooth DC sensitive RCDs type B and B+ also tested.The Fluke 1673FC can be used alongside an adaptor such as the Fluke FEV300 (available separately) that allows users to complete testing of EV charging stations with 6mA DC RCD testing of charging points also been able to be conducted using the adaptor.

The Fluke 1674FC can conduct a number further tests to complete the installation process including, Z-max memory for loop tests that allow for the highest loop test value to be analysed and simultaneous readings of voltage measurements between L-N, L-PE and N-PE can be conducted using the main cords eliminating the need to change the measurement connections.

Insulation PreTest™️ Functionality

The 1674FC includes Flukes patented Insulation PreTest™️, that better protects the installation and can avoid costly errors. If the tester detects that an appliance is connected to the system during a test, the 1674FC will stop the insulation test and provide the operator with a visual and audible alarm. This PreTest™️ function will help to eliminate any accidental damage to equipment with the possibility to save both time and money.

Compact and lightweight, the 1674FC is also provided with a neck strap to allow the operators hands to be free when conducting testing. The rechargeable battery allows for a full day of use in the field with USB-C allowing for on the go charging if needed. the included hard carry case offers protection in the storage and transportation of the tester. With a full colour touchscreen and rotary dial, Flukes 1674FC allows for quick and easy navigation through the display menu even when operated with safety gloves. The 1674FC incorporates a number of impressive safety features such as the colour coded input terminals rated at CAT III 600V and CAT IV 300V offering over voltage protection and being able to detect raised voltages from >50V allowing potentially dangers environments to be highlighted. The Fluke 1674FC can be updated in the field allowing for any changes in regulations or enhancements to the tester to be completed.

For even more detailed discussion about the 1670 range, watch our podcast episode below

Fluke 1660 Series and 1670 Series Comparison Chart

Fluke part number: 5580876

Key Features

• Full colour touch screen and rotary dial
• High loop mode for faster measurements
• Insulation Monitoring Device (IMD) tests
• Surge Protection Device (SPD) functional test
• Insulation PreTest safety function
• Voltage drop measurement function
• Loop and line impedance — mΩ resolution
• Z Max memory for loop testing to evaluate the highest loop test value
• Unique zero adapter for fast, reliable and accurate test lead and main card compensation
• Simultaneous readings of voltage measurements between L-N, L-PE and N-PE using the mains cord
• RCD trip current and trip time measurement in parallel displaying them together on the dual display
• Ring testing enabling the selection of the required inputs sockets without exchanging test leads
• Continuity test with low test current (10mA) to measure motor windings
• Earth Volt touchpad that detects earth voltages >50V

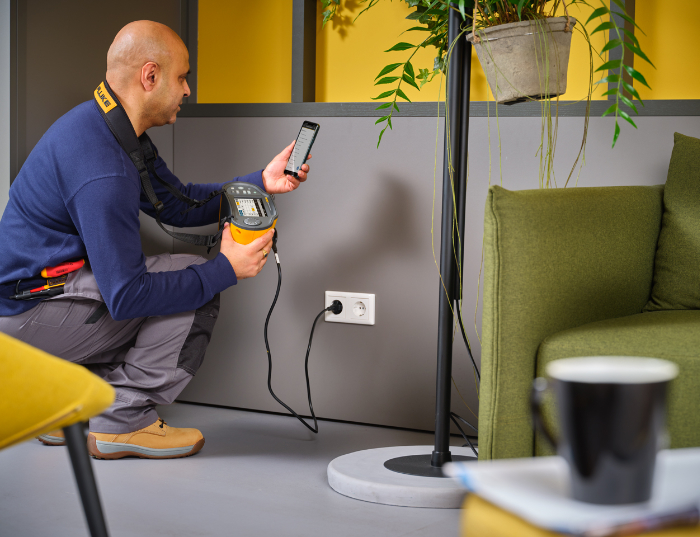

• Compatible with Fluke Connect and Fluke Cloud Storage
• Prospective Earth Fault Current (PEFC/IK)
• Prospective Short-Circuit Current (PSC/IK)
• Rechargeable battery
• USB-C charging point
