- Kewtech KT66DL 12-in-1 Multifunction Tester
- Kewtech KEWEVA EV Charge Point Testing Adaptor
- Soft canvas bag
- Mains lead
- DB leads
- Remote test probe
- Software
- Padded neck strap
Kewtech KT66EVA Multifunction Tester and EVSE Adaptor Kit
SKU: KEWTKT66EVA
- Combines the KT66DL MFT and the KEWEVA EV Charge Point Testing Adaptor
- Comprehensive RCD testing including 6mA DC RCD test for EVSE
- KT66DL includes both 2 and 3 wire low current test options of loop testing
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£1,522.80
£1,269.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Kewtech KT66EVA Multifunction Tester and EVSE Adaptor Kit
The Kewtech KT66EVA Multifunction Tester and EVSE Adaptor Kit features the Kewtech KT66DL Multifunction Tester and the Kewtech KEWEVA EV Charge Point Testing Adaptor with wireless connection for a complete solution for EV charge point commissioning. Electrical safety can be tested alongside full EVSE testing including EV testing with Type B RCDs and 6mA residual current devices in both TN or TT configurations.
Kewtech KT66DL 12-in-1 Multifunction Tester
The KT66DL 12 in 1 Multifunction Tester is built for domestic, commercial and industrial installations. Both 2 and 3 wire low current test options of loop testing can be completed
- Two continuity tests 200mA & 15mA
- Insulation: 4 test voltages, resistance bar graph & DAR / PI functionality
- Hi Current Loop: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
- Lo Current Loop: Two options 3 wire & 2 wire
- PSC
- PFC with a range of 50KA
- RCD: Tests Type AC, ACS, A, AS, F, B, BS & EV
- Volts: UC contact voltage test
- Earth Resistance: 3 and 2 wire options
- SPD testing with both DC and AC breakdown voltage displayed with a range of 1000V
- Phase Rotation: test three-phase lines; with the sequence is clearly indicated on screen
- PAT function including download
The KT66DL boasts a 3.5" LCD dot matrix display with a single rotary dial and four function keys for a user friendly interface. Simultaneously on screen, users can view all auto tests at once without the need to navigate multiple menus. The KT66DL has three modes for starting a test, Single button press testing, lockdown test button for continuous testing and the alternate set button featured in the additional probe. The type of test can be signed, circuit number and DB to test results can all be spared on the internal memory. The KT66DL is CAT IV 300V and CAT III 600V rated to fully comply with IEC safety standards. The KT66DL can simultaneously display L-N, L-N and L-E voltages (TRMS) and show Max Zs tables for both old and current standards.

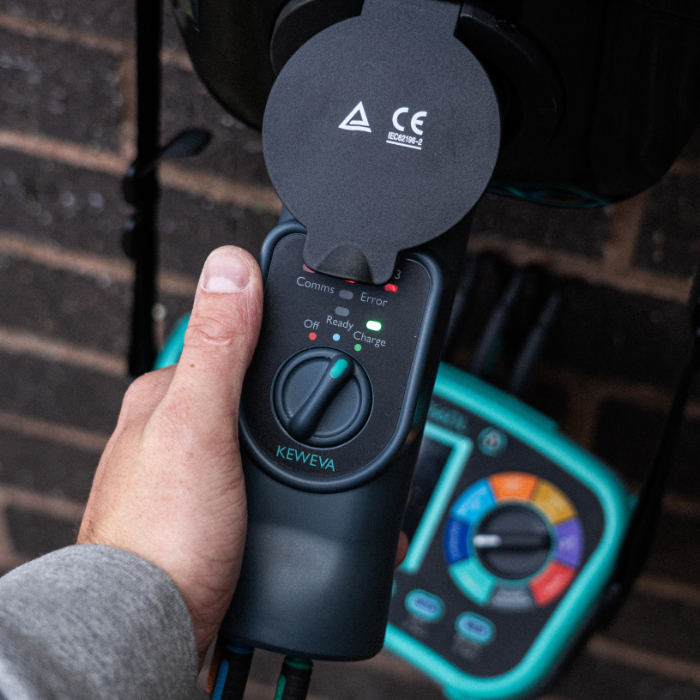

Kewtech KEWEVA EV Charge Point Testing Adaptor
The Kewtech KEWEVA EV Charge Point Testing Adaptor with its simple single dial operation to control the CP status is designed with the operator in mind. By simulating the presence of a car, the KEWEVA can test the functionality of an EV charging station. The KEWEVA automatically checks the control pilot errors and a low resistance design ensures the high-test quality loop measurements with no cable attached to negotiate whilst testing.
The KEWEVA yes standard 4mm connectors that are rated at 10A for testing purposes and is suitable for both single and three phase charging equipment. The red LEDs indicate the live status per phase and separate LEDs indicate when voltage is applied to output connectors. The adapter incorporates an IEC 62196-2 type 2 connector for EV charging units and has a type 2 male connector for EVSE connection.
Key Features
- 12 in 1 multifunction tester
- Perform continuity and insulation testing
- High and low current testing with anti-trip technology
- Phase rotation and earth rotation
- RCD testing facility complete with EV charging point test capacity
- Loop testing system includes both 3 & 2 wire low current test options
- 3.5" LCD colour screen
- Advanced internal memory
- CAT IV 300V and CAT III 600V rated
- Large LCD colour dot matrix display
- Easy to use interface with one rotary dial and four function keys
- Simultaneous display of L-N, L-N, L-E voltage (TRMS)
- Three modes for starting a test: single press of the test button, continuous testing and by test button in the test probe
- Advanced memory - assigns DB, circuit no. ad type of test i.e. Zs or Ze
- Kewtech KEWEVA - For type 2 charge points
- Communications light for auto check of control pilot (CP)
- Single and three phase charger compatibility
- Single dial operation
- Compact unit with no cables
What's In The Box?
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
