Martindale ET6000 Multifunction Tester

Martindale
SKU: MARTET6000
  • Accurate testing to adhere to 18th Edition Wiring regulations
  • Quick and accurate high current and non-trip loop testing
  • Backlit colour display with help function for simple and accurate use
More Info
In Stock - Available Next Day
Choose Your Free Gift
Test Meter PRO TMP775 Earth Leakage Clamp Meter
Test Meter PRO TMP775 Earth Leakage Clamp Meter
Free
£99.00
Test Meter PRO 50m R2 Wander Lead
Test Meter PRO 50m R2 Wander Lead
Free
£45.00

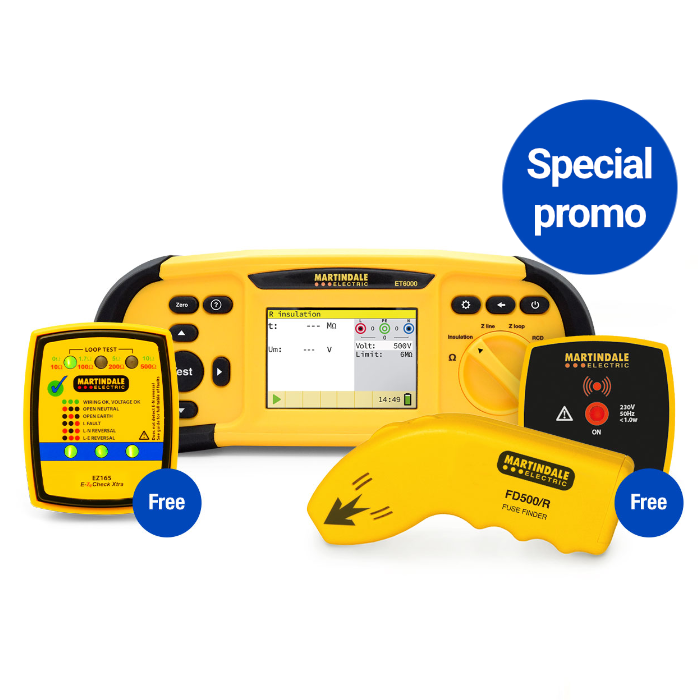

Limited Time Offer – Martindale ET6000 + Fault Finding Kit
Includes: EZ165 Socket Tester | FD500 Circuit breaker & Fuse Finder kit
HURRY! While stocks last.

Martindale ET6000 Multifunction Tester

The Martindale ET6000 Multifunction Tester is deigned for professional and accurate testing of electrical safety verifications the adhere to the 18th edition Wiring regulations. With fast and reliable high current testing and non- trip loop testing, the ET6000 offers both reliable sands rugged testing.

With a large backlit colour display, the ET6000 allows users to perform Auto RCD testing and ramp testing all on one screen with multiple help menus at the push of a button for most functions including sample connection diagrams where appropriate to ensure users are always able to perform the required testing safely and accurately. Insulation resistance testing and voltage (0V to 500V) and frequency from 10HZ to 499HZ

With a large backlit colour display, the ET6000 allows users to perform Auto RCD testing and ramp testing all on one screen with multiple help menus at the push of a button for most functions including sample connection diagrams where appropriate to ensure users are always able to perform the required testing safely and accurately. Insulation resistance testing and voltage (0V to 500V) and frequency from 10HZ to 499HZ

Martindale ET6000 series comparison table

  ET6000 ET6300 ET6500
Voltage 0V - 500V ✔ ✔ ✔
Frequency 10kHz to 499kHZ ✔ ✔ ✔
EV ready   ✔ ✔
Insulation resistance ✔ ✔ ✔
Continuity resistance Low R (200mA) Low R (200mA) Low R (200mA)
Continuity (low current)   ✔ ✔
RCD testing nominal residual currents (mA) 10/30/100/300/500 10/30/100/300/500-650/1000 10/30/100/300/500-650/1000
RCD Type A, AC, G, S A, AC, B, B+, F, G, S A, AC, B, B+, F, G,S
Loop-Rs   ✔ ✔
Voltage drop detection     ✔
Earth resistance Re (3-wire and 4-wire)1Ω / 9999Ω*     ✔
Earth resistance Ro (specific earth resistance testing)*     ✔
Automatic polarity change     ✔
Calibration date reminder ✔ ✔ ✔
Memory and reporting (Excel reporting)     ✔
Rechargeable batteries suitable for on-board charging Optional ✔ ✔
Systems TN, TT TN, TT, |it, LV (2 x 55V) TN, TT, |it, LV (2 x 55V)
Supplied with external probe with button Compatible ✔ ✔
Supplied with TL305EV adapter   Optional ✔
4mm leads stackable plugs   ✔ ✔

*Earth Resistance (Requires optional Martindale ER2KIT-S or Martindale ER4KIT-S Earth Spike Kit)

Further testing for the ET6000 includes voltage measurement and phase rotation and the calibration date reminder allows users to always know the tester is always up to date. The ET6000 offers a high level input protection and provides CST III 600V and CAT

Supplied with a soft carrying protecting both the tester and accessories in transport and storage. TL36 test leads with 4mm plugs and TL207 mains test leads

Key Features

  • Test to 18th edition Writing regulations
  • Accurate and fast testing for current, frequency and non-trip testing
  • Voltage measurements and phase rotation
  • Large backlit display
  • Help function with sample connection diagrams
  • Voltage measurements and phase rotation
  • Insulation resistance testing
  • Auto RCD and ramp testing with results shown on one screen
  • Carry case included
  • TL36 test leads with 4mm plugs

What's In The Box?

  • Martindale ET6000 Multifunction Tester
  • TL36 test leads with 4mm plugs
  • 6x AA batteries
  • TL207 mains test leads
  • Test and go carry bag
  • Instruction manual
  • Warranty registration
  • Verification certificate
Specification

Specifications

  • Voltage: 0V - 500V
  • Frequency: 10Z -499HZ
  • Complies with: BS EN 61010-1 CAT III 600V CAT IV 300V, BS EN 61557, BS 57671:2018 18th Edition, BS EN 61326-1
  • Dimensions: 250mm x 107mm x 135mm
  • Weight: 1.3KG approx (excluding batteries)
  • Insulation resistance: Nominal ranges 50, 100, 250 500, 1000V DC
  • Continuity resistance: Low R (200mA)

RCD Testing:

  • Nominal residual currents (mA):10/30/100/300/500
  • RCD types: A, AC, G, S
  • Contact voltage: Yes
  • Trip-out time: Yes
  • Trip-out current: Yes

Fault Loop impedance and prospective fault current :

  • Z loop L-PE lpfc: Yes
  • Z loop L-PE RCD, lpfc, non-trip subduction
  • Line impedance and prospective short-circuit current (PSC): Yes

Other features:

  • Calibration date reminder: Yes
  • Rechargeable batteries suitable for on-board charging: Optional
  • Systems: TN, TT
  • Compatible with external probe with button: Yes
  • 4mm leads- straight plugs Yes
Label Type Size Download
pdf Martindale ET6000 Series Multifunction Testers Datasheet pdf 336.9 KB Download
