Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - PRO Kit

SKU: METRMI3109PRO
  • Multifunction Tester optimised for testing Photovoltaic Installations
  • Autotest mode provided for one-click programme of all EN62446 tests
  • Pro kit includes Pyranometer, test probes, remote, complete standard set as well as EuroLink Pro software
More Info
In Stock - Available Next Day
Choose Your Free Gift

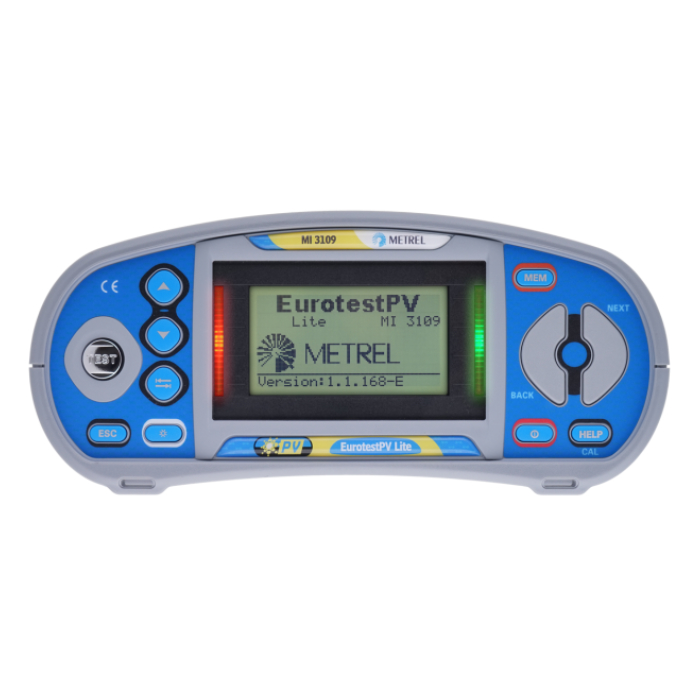

Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - PRO Kit

Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - PRO Kit is a versatile photovoltaic multifunction tester (MFT), providng all required tests for PV Installations.

The focus of the EurotestPV Lite is on PV testing and this is demonstrated by its Autotest one-button setting, providing a complete set of tests needed for certification of PV installations according to EN62446 at the push of a single button.

The MI3109 has a variety of capabilities, providing voltage, current and power measurements on both sides of a PV installation, as well as installation resistance on electrical installations and the continuity of PE conductors.

The MI3109 also performs I-U characteristic measurements, single-phase power measurements on both Inverter sides (AC and DC) and calculation to STC values, in addition to efficiency calculations, making it the ideal tool for photovoltaic engineers.

Metrel EuroLink PRO software

To aid accessibility even further, the MI3109 comes complete with Metrel’s EuroLink PRO software, perfect for creating Visual Inspection Reports and Testing Result Reports.

Metrel A1378 EurotestPV Remote

The included Metrel A1378 allows for simultaneously measurements of solar irradiation and temperature of PV module. The unit comes with a backlight LCD display, offering users the ability to read results, Indications, measurement parameters and messages easily.

The Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - PRO Kit comes packaged with a large assortment of practical accessories. The Pro Kit comes complete with the contents of the standard set, meaning you also receive a range of Universal PV and PV Continuity test leads, test probes, crocodile clips and PV MC3/4 male/female adapters, plus a carrying strap and soft carry case to look after the instruments in the field. The PRO kit also includes as well as both a PV Safety Probe A 1384 and Temperature Probes

  • Provides measurements of voltage, current and power on both sides of a PV installation
  • Autotest functionality for quick and effective EN 62446 compliance
  • Uoc (Open Circuit Voltage) and Isc (Short Circuit Current) measurements (DC only)
  • I - U curve of PV modules and strings (DC only)
  • Irradiance  and Module temperature (DC only)
  • Efficiency of PV module, inverter, PV system calculation (AC only)
  • Measures insulation resistance and continuity of PE conductors
  • Calculation to STC values and efficiency calculations
  • Graphical representation of module’s I - U curve
  • 2 voltage & 2 current channels for simultaneous AC & DC parameters tests

Metrel Solar PV Tester and I-V Curve Tracers comparison table

  Metrel MI3109 Metrel MI3109 PRO Kit Metrel MI3108ST Metrel MI3108 PS PRO Kit
Auto Tests (Auto PV (ISC, Uoc, Ins= Ins-)
Auto-sequences Pass/Fail System Evaluation
Automatic Test sequences (Multi-test sequence)
Three phase (3-phase system phase sequence) Optional Optional
Z Line/ Loop impedance
RCD
Earth Resistance 2-wire and 3-wire/Ground Resistance
Power measurements
Harmonics: THD Voltage and Voltage Harmonics
Graphical user interface Scope
PV Reference Cell Optional Optional
Metrel A1378 EurotestPV Remote Optional Optional
PV Safety Probe Optional Optional
Tip Commander
Plug Commander
Generator Current Clamp
RIFD Reader
PV Safety Probe
Pyranometer
Temperature Probe
Power Supply adaptors x2
Mains plug cable 1.5m
UK Mains came for charging adapter x2
Universal PV Test lead, 3 x 1.5m
PV Continuity Test Lead 1.5m x2 x2 x3 x3
Test Probes Red, Blue and Green Red, Blue and Green Red, Blue and Green Red, Blue, Green and Brown
Crocodile Clips Red, Blue and Green Red, Blue and Green Red, Blue and Green Red, Blue, Green and Brown
PV MC3/4 Male/Female adaptors
AC/DC Current Clamp
Power supply adaptor, AA batteries x6 x6 x6 x12
USB and RS232 PS/2 Cable
PC SW EuroLink PRO
Soft Carrying bag x1 x2 x1 x1
Carry Strap x1 x1 x1 x2
Short Instruction Manual
Instruction Manual and Handbook on CD
Calibration Certificate

Specialists In Solar PV Test Equipment

Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.


As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.

Find the best solution for your application and budget through:

  • Onsite-demo/remote consultations on request
  • 'Try Before You Buy' and hire options available
  • After-sales care that provides ongoing calibration and servicing
  • Finding the optimal software package, ensuring the correct reporting and data functionality for your needs

Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk

What's In The Box?

  • MI 3109 ST EurotestPV
  • EurotestPV Remote A 1378
  • PV Safety Probe A 1384
  • Pyranometer A 1399
  • Temperature probe A 1400
  • Soft carrying bag (2 pieces)
  • 3 x 1.5m Universal PV test lead
  • 2 x 1.5m PV Continuity test lead
  • 3 x Test probe and crocodile clip
  • PV MC3/4 male/female adapters
  • AC/DC current clamp A 1391
  • Power supply adapter + 6 AA NiMH batteries
  • USB and RS232 - PS/2 cable
  • PC SW EuroLink Software PRO
  • Carrying strap
  • Instruction manual / handbook (Book and CD)
  • Calibration certificate
Specification

Photovoltaic Installation Measurements

Voltage: Measuring range/ Basic accuracy

  • Measuring Range: 0 VDC - 999 VDC/ Basic Accuracy ±(1% of reading + 2 digits)
  • 0 VAC - 999 VAC/ ±(1.5% of reading + 3 digits)
  • I-V m.: 0 VDCC-999 VDC/ ±(1% of reading + 2 digits)

Current: Measuring range/ Basic accuracy

  • Panal m.: 0.0mA - 300ADC/ ±(1% of reading + 2 digits)
  • Invert. M.: 0.0mA - 300AAC/ ±(1.5% of reading + 3 digits)
  • I-V m.: 0.00 A - 15 ADC/ ±(1% of reading + 2 digits)

Power: Measuring range/ Basic accuracy

  • Panal m.: 0 -199.9kW/ ±(2.5% of reading + 6 digits)
  • I-V m.: 0 - 14.99 kW/±(2 % of reading + 3 digits)

U/ I Curve: Measuring range/ Basic accuracy

  • 1000V/ 15A/ 15kW

Irradiation: Measuring range/ Basic accuracy

  • 000 - 1.75 kW/m2 / ±(4% of reading + 5 digits)

Temperature

  • -10ºC to +85ºC

Electrical Installations Measurements

Insulation Resistance (EN 61557-2): Measuring range/ Basic accuracy

  • U= 50, 100, 250VDC/ ±(5% of reading + 3 digits)
  • R: Up to 199.9MΩ/ ±(5% of reading + 3 digits)
  • U= 500VDC, 1kVDC/ ±(5% of reading + 3 digits)
  • R: Up to 999MΩ/ ±(5% of reading + 3 digits)

Continuity, 200mA (EN 61557-4): Measuring range/ Basic accuracy

  • 0.00 Ω to 1999Ω/ ±(3% of reading + 3 digits)

Continuity 7mA: Measuring range/ Basic accuracy

  • 0.0Ω to 1999Ω/ ±(5% of reading + 3 digits)

General Specifications

  • Main Unit Display: 128 x 64 dots matrix display with backlight
  • Remote Unit Display: 128 x 64 dots matrix display with backlight

Power Supply

  • Main Unit 6 x 1.2 V NiMH batteries, type AA
  • Remote Unit: 6 x 1.2 V NiMH batteries, type AA
  • Over voltage category: CAT II / 1000 VDC; CAT III / 600 V; CAT IV / 300V
  • Protection Class: Double Insulation

CDM Port

  • Main Unit: RS232 and USB
  • Remote Unit: RS232

Dimensions

  • Main Unit: 230 x 103 x 115mm
  • Remote Unit: 140 x 230 x 80mm

Weight

  • Main Unit 1.3KG
  • Remote Unit: 1KG
Label Type Size Download
pdf Metrel MI3109 EurotestPV Lite pdf 2.2 MB Download
