Protimeter Digital Mini Moisture Meter

SKU: PROTBLD5702
The Protimeter Digital Mini Moisture Meter can help building professionals assess moisture levels during building refurbishment and new builds.
More Info
In Stock - Available Next Day

Protimeter Digital Mini Moisture Meter

The Protimeter Digital Mini Moisture Meter (BLD5702) is a pin-type moisture meter ideal for assessing building moisture levels in order to diagnose different types of damp, the extent of moisture penetration and for tracking changes in moisture levels.

This reliable moisture meter features pin electrodes that measure moisture level at the surface of a material, whilst sub-surface measurements can be obtained by using optional probes suited for the task at hand.

The Protimeter Digital Mini moisture meter is calibrated for wood and so displays the actual percentage moisture content when used on wood. When the meter is used on other materials such as concrete, plaster or masonry, the instrument displays a Wood Moisture Equivalent (WME) value.

Comparative moisture levels can also be measured using the Digital Mini Moisture meter on ‘reference mode’. This mode is very useful for comparing moisture levels at numerous points in a building, compared to the original reference reading.

Concurrent to displaying any measurement, the Digital Mini Moisture Meter also highlights dry (green), yellow (at risk) and wet (red) by a sequence of 60 LEDs.

Applications

The Digital Mini has a range of potential applications and is appropriate for use with many typical building materials. It uses the same attachments as the rest of the Protimeter range and may be useful in the following contexts:

  • Building Survey
  • Fire and flood restoration
  • Concrete surface measurement
  • Indoor air quality
  • Environmental health
  • Wooden sub-floor and hardwood flooring

Optional Moisture Probes

The Protimeter Digital Mini Moisture Meter is supplied with a fixed 2 pin electrode as well as a heavy-duty 2 pin probe that plugs into the instrument via an auxiliary port. Additional optional probes can be selected to purchase from above, adding versatility to the types of material that the instrument can be used to measure. These include:

Hammer Electrodes - Hammer electrodes are used to obtain sub-surface moisture measurements of wood. Available in both light and heavy duty versions; the light duty electrode is suitable for occasional use in softwood, whereas the heavy duty electrode is designed for more frequent softwood use as well as occasional hard wood use.

Deep Wall Probes - used to obtain damp measurements at depth within solid and composite walls. A varied depth of insertion holes will need to be drilled before the wall probes are inserted in order to record a moisture content gradient.

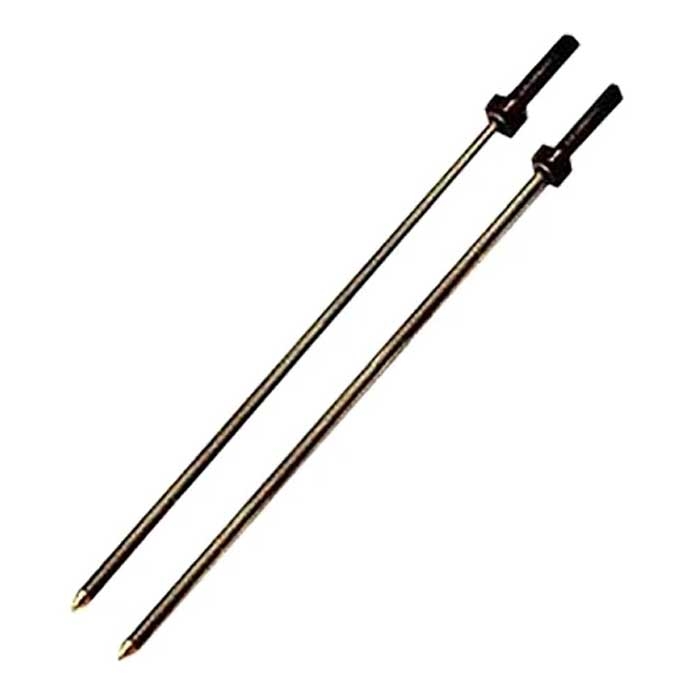

EIFS Probes – suitable for measuring moisture within and through Exterior Insulation and Finishing Systems (EIFS) and other wall claddings.

Protimeter moisture meters by applications and functions

  Protimeter Aquant Protimeter BLE Protimeter Digital Mini Protimeter Hygromaster 2 Protimeter Hygromaster L Protimeter Mini Protimeter Mini C Protimeter MMS3 Protimeter ReachMaster Pro Protimeter Surveymaster2 Protimeter Timbermaster Protimeter MMS3 Flooring Kit
Find your Meter by application
Building Construction
Building Survey
Concrete floors
Flood damage restoration
Home Inspection
HVAC Commissioning
HVAC Commissioning
Industrial Coatings
Marine Surveys
Wood Floors
Wood Working
Find your Meter by function
Pin moisture measurement
Non-evasive Moisture Measurement
Non-contact Temperature Measurement
Plug in Temperature Probe
Ambient Humidity
Ambient Temperature
Dew-Point
Psychorometric Humidity Readings
Data Logging
WME Accessory Port

Key Features

  • Suitable for most building materials
  • Dual LCD/LED display
  • Easy to use

What's In The Box?

  • Protimeter Mini Digital Moisture Meter
  • Two pin moisture probe and lead (BLD5079)
  • Pouch with Belt Loop
  • User Instructions and Wood Species Calibration Tables
  • Calibration Check Device with 2 x Spare Pins
Specification

Protimeter Digital Mini Moisture Meter

Measurement Range 7.9% to 99% WME (pin measurement)
Depth of moisture pin up to 1/2 inch (12.7mm)
Display 1 Digital LCD display
Display 2 60 LEDs -green (dry), yellow (at risk), red (wet)
Power 9V battery (included)
Case pouch with belt loop
Weight 225g
Dimensions (mm) 190mm x 70mm x 49mm
