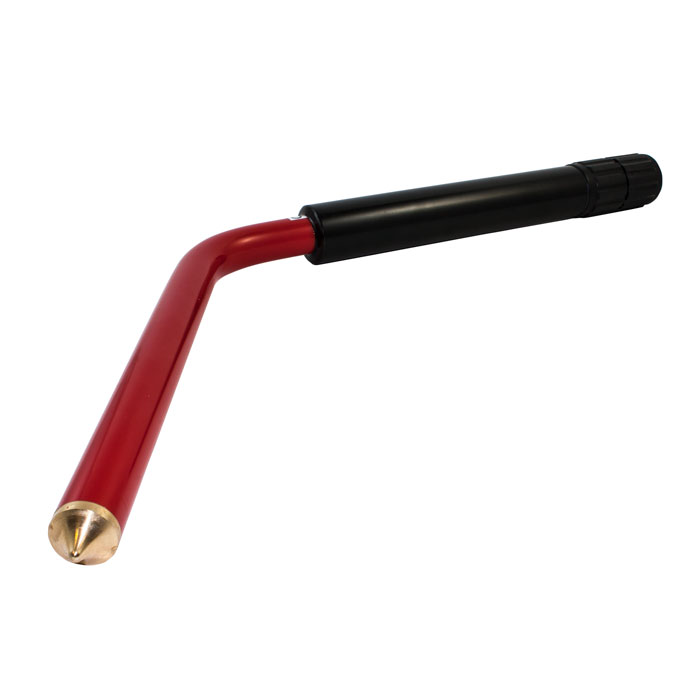

Seaward 120 Degree Bent End Adaptor 33KV

SKU
SEAW120DEGREEADAPTOR
Seaward's 120 degree bent end adaptor suitable for testing hard to reach earthed neutral systems up to 33kV.
More Info
inc VAT £316.80 ex VAT £264.00
Typically ships in 7-10 working days


Product Details

Seaward 120 Degree Bent End Adaptor 33KV 141A912

This 120 degree high voltage adaptor is a unique product from Seaward designed to assist engineers working on vertical type switchgear applications.

The bent nature of the adaptor will ensure hard to reach areas can be easily tested thus saving time on difficult jobs. The device has been designed to act as an extension and be compatible with a selection of Seaward's HV potential indicators including the PR33D, PR15D, KD1E/15D, KD1E/33D.

The Seaward 120 degree bent end adaptor 141A912 is ideal for anyone wanting to test earthed neutral systems up to 33kV.

This product is best paired in a kit with Seaward 90 Degree Bent end adaptor suitable for jobs up to 15kV.

What's In The Box?
  • Seaward 120 Degree Bent End Adaptor - 141A912
More Information
Specification
  • Maximum System voltage - 33kV
  • Dielectric leakage current - 130µA nominal @ 40kV
  • Length (mm) - 780
  • Diameter (mm) – 25
  • Contact Electrode Type – Domed
