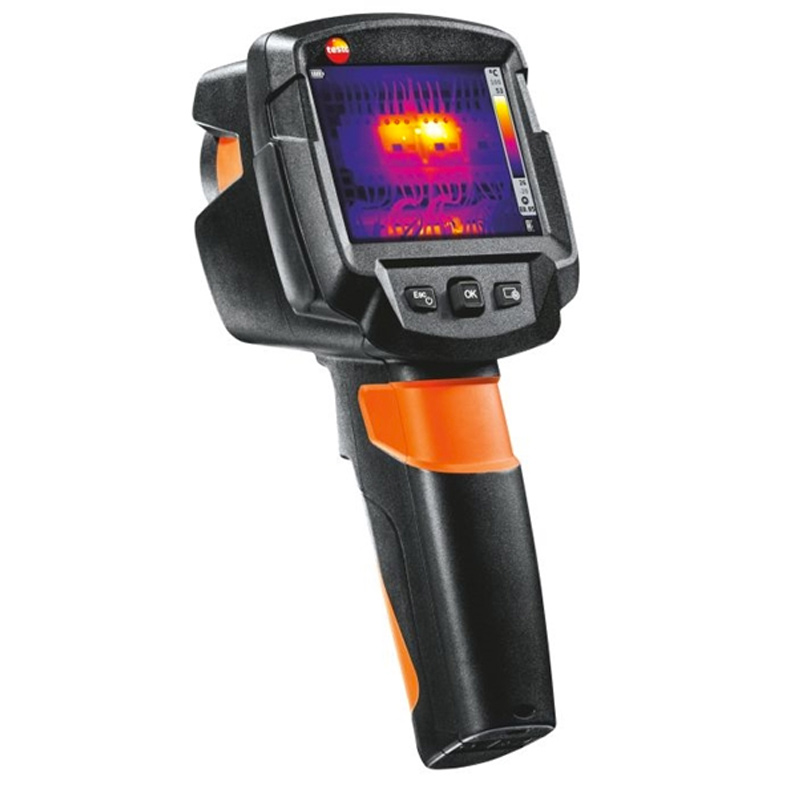

Testo 869 Thermal Imaging Camera

Testo
SKU: TESTO896
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

Discontinued
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 749 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • High resolution 3.5” LCD screen with choice of four colour scales
  • Visualises temperature differences of less than 120mK
  • Saves up to 2000 .jpg images and comes with analysis software for PC
Description

Testo 869 Thermal Imaging Camera

This product has now been discontinued. The nearest current equivalents are the Testo 865 Thermal Camera and Testo 871 Thermal Camera.

The Testo 865 is an entry level thermal camera is an excellent camera for basic applications such as detecting leaks, overheating components, thermal bridges and sturcutral defects thanks to its 160 x 120 pixel thermal sensor that measures temperature from -20˚C to 280˚C. It has a large 2.8GB internal memory which can save thousands of images.

The Testo 871 is a higher-spec thermal imager with a 240 x 180 pixel thermal sensor that measures temperature from -30˚C to 650˚C. This increases the range of possible applications in the electrical and HVAC sectors. The camera also has a 2.8GB internal memory but benefits from additional wireless connectivity to the Testo Thermography App, the Testo 605i Thermohygrometer and the Testo 770-3 Clamp Meter.

The Testo 869 Thermal Imaging Camera is an easy-to-use, accurate and sensitive IR thermal imaging camera which has several different applications. Principle uses include mechanical inspections, building inspections, heating inspections and electrical troubleshooting.

The high-resolution 160 x 120 pixel screen has fixed focus and a wide 34º field of vision so images are immediately clear and the user gets a good idea of the temperature distribution throughout an object. The 9Hz refresh rate ensures a smooth, real time picture. The camera itself also allows for detailed and accurate inspection thanks to its 19,220 temperature measurement points which permit differences of less than 120mK to be shown on screen. The display of critical temperature conditions means that hot and cold spots are automatically recognised.

The 869 is the lightest thermal imaging camera in its class (550g) making it easy to hold, transport and use. Furthermore, images can be saved in .jpg format for later analysis whilst the product comes with PC software to help you analyse the saved pictures. The 1.6GB internal storage has enough space for over 2000 pictures so memory capacity is not a problem. Battery life is also nothing to worry about because one charge provides four hours of scanning. The Testo 869 therefore offers a simple, precise and accurate way of remotely and quickly assessing a whole range of objects across a range of sectors.

Testo part number: 0560 8690

Key Features

  • 19,220 temperature sensor points
  • 160 x 120 infrared pixel 3.5” LCD screen
  • Function to save images in .jpg format
  • Mean point measurement
  • Hot/cold spot recognition
  • 34º x 25º field of vision
  • Measures from -20℃ to +280℃
  • Comes with Windows compatible analysis software

What's In The Box?

  • Testo 869 IR Thermal Imaging Camera
  • Pro software
  • USB cable
  • Mains unit
  • Li-ion rechargeable battery
Specification
Show Trustpilot Reviews
Specification
No

Infrared Image Output

  • Infrared resolution: 160 x 120 pixels
  • Thermal sensitivity (NETD): <120mK at +30℃
  • Field of vision: 34º x 26º
  • Minimum focussing distance: <0.5m (fixed focus)
  • Geometric resolution (IFOV): 3.68 mrad
  • Image refresh rate: 9Hz
  • Focus: fixed focus
  • Spectral range: 7.5 to 14µm

Image presentation

  • Image display: 3.5" LCD with 320 x 240 pixels
  • Display options: IR image only
  • Colour palettes: 4 (iron, rainbow HC, cold-hot, grey)

Measurement

  • Measuring range: -20℃ to 280℃
  • Accuracy: ±3℃ / ±3%
  • Emissivity/reflected temperature compensation: 0.01 to 1 / manual

Measurement functions

  • Analysis functions: Mean point measurement, hot/cold spot recognition

Imager equipment

  • Lens: 34º x 26º
  • Save JPEG: Yes
  • Fullscreen mode: Yes

Image storage

  • File format: .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, and .xls
  • Memory: Internal storage 1.6GB / >2000 images

Power supply

  • Battery type: Li ion rechargeable battery exchangeable on site
  • Operating time:  4 hours
  • Charging options: in instrument / in charging station
  • Mains operation:  Yes
  • Weight: 550g
  • Dimensions (LxWxH): 219 x 96 x 95 mm
  • Housing: PC -ABS
  • PC software
  • System requirements: Windows XP (Service Pack 3), Windows Vista, Windows 7, Windows 8, Windows 10
  • Interface: USB 2.0

Warranty

  • Warranty: 2 years
