Anton Sprint Pro6 Multifunction Flue Gas Analyser Reporting Kit (Kit A)

Anton Sprint Pro6 Multifunction Flue Gas Analyser Reporting Kit (Kit A)

The Anton Sprint Pro6 Multifunction Flue Gas Analyser Reporting Kit (Kit A) is an extremely versatile flue gas analysis option thanks to the highly advanced Anton Sprint Pro6 and an array of useful accessories. In particular, it is suitable for commercial applications and COMCAT/CMDDA1 inspections.

The Anton Sprint Pro6 Multifunction Flue Gas Analyser is capable of measuring a wide range of variables including CO, O2, temperature, pressure and NO as well as calculating values such as CO2 level, CO/CO2 ratio and combustion efficiency. Notably, it is also possible to conduct a tightness/let by test as well as directly measuring ambient CO and CO2 via an IR sensor.

As a smart instrument, the Anton Sprint Pro6 can communicate with the user’s smartphone via a wireless connection (Anton Smart Pro app is required). Furthermore, it has IR connectivity with a portable printer and a USB port for charging and connecting to a PC. The intuitive menu-based operation system and large push buttons make the analyser easy to use whilst a robust design with a double condensate trap prevents damaging water ingress.

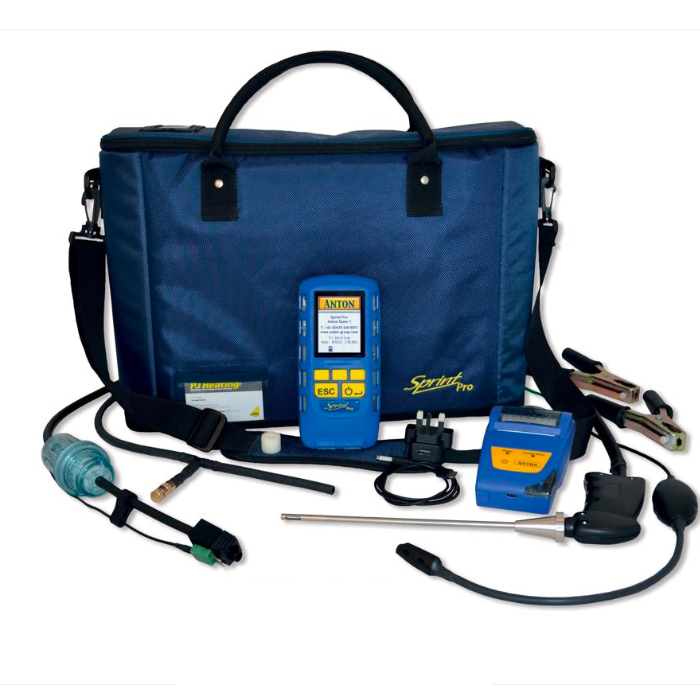

A wide range of different probes is supplied with Anton Sprint Pro6 Reporting Kit (Kit A). There is a standard flue gas probe that is suitable for taking readings from flues and a pair of pipe clamp temperature probes allow differential temperature measurement on inflow and outflow types. Additionally, a combustible gas leak sensor is also included whilst a standard pressure hose and APRV pressure release valve and hose set are included for tightness/let by testing.

Other accessories in Anton Sprint Pro6 Reporting Kit (Kit A) include a USB charger and communications lead and a spare dust filter. There is also a portable, battery-powered infrared printer that can be used to create hard copies on site.

Double Condensate Trap

One of the most impressive features of the new Anton Sprint Pro Flue Gas Analyser range is the double condensate trap that prevents moisture from reaching the analyser pump and causing down time. A moisture filter in the condensate trap prevents ingress towards the analyser and double protection is provided by a second filter at the click-in connection. The trap is robustly designed and very quick and easy to empty. Additionally, the particle filter has beens switched from paper to foam so it can be quickly dried on the spot without necessitating a second filter.

Anton Sprint Pro App

The Anton Sprint Pro App is available for Android and iOS smart devices from the Google Play Store or Apple App Store. It is capable of working with the Anton Sprint Pro Flue Gas Analyser range through wireless Bluetooth connectivity. The app allows the user to efficiently and professionally test combustion systems thanks to a wide range of report generation features, account management systems and a great choice of calculation features.

Anton part number: Sprint Pro6 Kit A

• Measurement features: CO, O2, NO, temperature, pressure
• Calculation features: CO2, CO/CO2 ratio, combustion efficiency
• Let by and tightness testing
• Water stop technology provides double protection against water ingress
• Condensate trap is easier to empty and clean
• BSI tested to EN50379:2012 1 & 3
• Option for direct infrared CO2 measurement
• Options for NO and NOx measurement
• Connect to iOS or Android devices
• Robust construction designed for professional engineers
• Intuitive, menu-driven software
• High-contrast colour screen
• USB-C charging and connectivity
• Drop in bag with every analyser
• Secure click in flue probe
• Over range protection for sensors
• Upgradeable to higher models

Kit Comparison
