- Z300 PVT HE instrument
- Rechargeable Li-Ion battery pack
- AC charger and country-specific power cable
- Handheld tone pickup probe
- 1500 V CAT III test leads
- MC4 PV measuring cords
- Ground lead with crocodile clip
- Insulated alligator clips
- Fine probe set
- Carry bag for accessories
Emazys Z300 HE PV String Analyser
SKU: EMAZZ300HE
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
Key Features
- Supports 1500 VDC utility-scale PV systems with optimisation for high-efficiency modules
- IV Curve Analysis providing estimated Vmpp, Impp, Pmpp, and Fill Factor
- Accurate Isc measurements up to 40 A on high-capacitance strings, with inrush management 0-200A
Related Categories
£5,850.00
£7,020.00
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
Key Features
- Supports 1500 VDC utility-scale PV systems with optimisation for high-efficiency modules
- IV Curve Analysis providing estimated Vmpp, Impp, Pmpp, and Fill Factor
- Accurate Isc measurements up to 40 A on high-capacitance strings, with inrush management 0-200A
Related Categories
Emazys Z300 HE PV String Analyser
The Emazys Z300 HE PV String Analyser is purpose-built for utility-scale solar farms using modern high-efficiency PV technologies, including TOPCon, HJT, IBC and n-PERT modules. It is designed to operate where conventional instruments often struggle, supporting testing on up to 1500 VDC systems while delivering reliable commissioning, troubleshooting and diagnostic capabilities.
High-efficiency modules often generate elevated diffusion capacitance, which may produce inrush currents exceeding 100 A during testing. The Z300 HE PV addresses this challenge using proprietary measurement techniques, enabling safe and accurate short-circuit current (Isc) measurements up to 40 A, even on high-capacitance strings.
The Z300 HE is built to take on the most challenging PV environments, supporting fast commissioning, IV curve analysis, and pinpoint troubleshooting with cloud-connected disagnostics to enable plant operators and EPC contractors improve testing accuracy, reduce downtime and monitor long-term string performance across large-scale solar installations.
Comprehensive IEC 62446-1 Commissioning Tests
The Z300 HE PV performs all key string-level tests required for solar commissioning and maintenance in a single instrument, including open open-circuit voltage (Voc), short-circuit current (Isc) and insulation resistance (Riso), while also performing automatic polarity verification to prevent incorrect connections during testing.
In addition to standard commissioning checks, the analyser includes advanced diagnostic tools such as:
- Ground fault localisation to within ±0.5 PV module
- Series resistance (Rs) measurement using impedance spectroscopy
- String capacitance analysis
- Continuous three-channel voltmeter monitoring
- Integrated tone generator with handheld pickup probe
- Maximum Power Point (MPP) estimation
These capabilities allow technicians to identify underperforming strings, locate faults faster and detect early degradation before they can impact plant performance.
Advanced IV Curve Analysis and String Diagnostics
The Z300 HE enables users to perform IV Curve Analysis, providing estimated Vmpp, Impp, Pmpp and fill factor for string-level performance assessment and comparison with module datasheet values. This provides fast insight into string performance while reducing test complexity in the field. When used with the optional Tempirra environmental sensor, the system can also apply STC correction to improve the accuracy and comparability of results across installations and time periods.
The integrated Emazys MPP method estimates Vmpp, Impp, Pmpp and fill factor without needing the full IV curve tracing. This provides fast insight into string performance while reducing test complexity in the field. When used with the optional Tempirra environmental sensor, the system can also apply STC correction to improve the accuracy and comparability of results across installations and time periods.
The Z300 HE PV integrates with the Emazys Cloud platform, which includes an AI-based analysis tool known as Max, which helps identify recurring ground fault patterns, abnormal resistance trends and early-stage degradation across multiple sites. By simply logging in to the Emazys Cloud, Max AI can access your test data and give you actionable insights and diagnostic guidance, making it one of the fastest ways to make decisions and reduce reliance on manual date interpretation.
The analyser connects via Bluetooth to iOS and Android devices, allowing full control through the Emazys mobile app. Every measurement is automatically synchronised to the Emazys cloud, including: test results, GPS coordinates, environmental data, site photos and string identifiers. Data is organised by site and string for streamlined commissioning and maintenance workflows. Reports can be exported in PDF, CSV and Excel formats for compliance documentation and customer handover.
Available cloud plans include Free, Premium and Team options to allow scalability from individual engineers to large portfolio operators.
Add the Emazys Tempirra to Your PV Testing Setup
Add irradiance and temperature measurements to your Emazys PV testing with the Emazys Tempirra PV Irradiance and Temperature Datalogger. Measuring real site conditions alongside your electrical test results gives you clearer context when assessing PV system performance.
Tempirra measures solar irradiance, PV module temperature and ambient temperature, helping you understand whether changes in system performance are being caused by environmental conditions or may indicate a genuine system issue.
- Measure solar irradiance during PV testing
- Record PV module and ambient temperature
- Add environmental context to your electrical test results
- Helps support more informed fault finding and performance analysis
- Designed for use alongside compatible Emazys Z300 instruments
- Compact, rechargeable and designed for field use
Add the Emazys Controller Tablet to Your Testing Setup
Pair your Emazys tester with the dedicated Emazys Controller Tablet for a ready-to-use field setup, without needing to rely on your own phone or tablet.
The tablet comes pre-configured for use with compatible Emazys instruments, including the Z300 PVT, Z300 HE and Tempirra. Use it to control your instrument, manage measurements and access your test data from one dedicated device.
- Pre-configured for compatible Emazys instruments
- No need to use your personal phone or tablet
- Store and manage test results in the field
- USB data export and Emazys Cloud connectivity
- Rugged IP68-rated tablet for field use
- Ideal for individual engineers, teams and shared test equipment

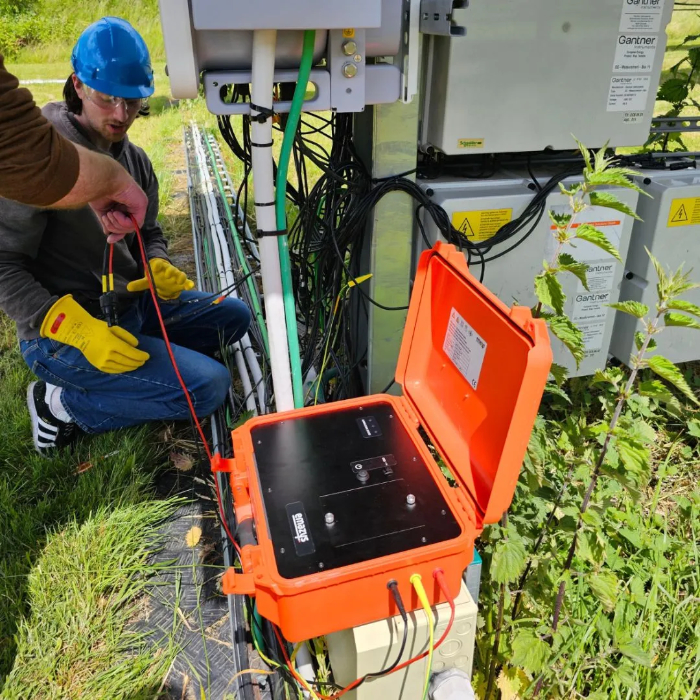

Designed for Utility-Scale Field Work

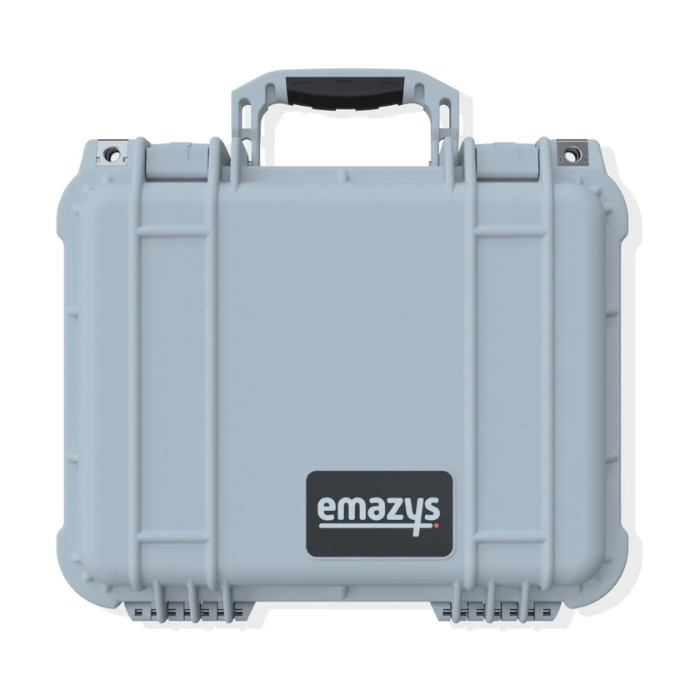

The Z300 HE PV is housed in a rugged IP65-rated Peli 1400 case with sealed feed-throughs for dependable outdoor use. Reinforced insulation and CAT III 1500 V safety compliance provide protection when testing high-voltage solar strings in demanding environments. Its rechargeable lithium-ion battery delivers approximately 8 to 10 hours of operation, with recharge times between 1 and 2 hours, ensuring minimal downtime between field tasks.
Part number: Z300 HE
Emazys Z300 PVT, Z300 Zuno & Z300 HE PV Comparison Table
| Z300 Zuno | Z300 PVT | Z300 HE PV | |
|---|---|---|---|
| Best used for | Fast string validation and standard electrical checks | Advanced diagnostics and fault finding | High-efficiency utility-scale PV diagnostics |
| Target module types | Standard PV modules | Standard utility-scale PV modules | TOPCon, HJT, IBC and n-PERT modules |
| System Voltage Rating | Up to 1500 V DC | Up to 1500 V DC | Up to 1500 V DC |
| Maximum Current | Up to 30 A DC | Up to 30 A DC | Up to 40 A DC |
| Advanced troubleshooting | Basic insulation fault location only | Full diagnostics, including Rs analysis | Full diagnostics with enhanced HE module analysis |
| Series Resistance (Rs) Measurement | Not included | Included | Included with impedance spectroscopy |
| Ground Fault Localisation | Basic | Included | Included with ±0.5 module accuracy |
| Tone Generator & Amplifier Probe | Not included | Included | Included |
| MPP Estimation | Not included | Not included | Included |
| Cloud Sync & Reporting | Basic cloud functionality | Full cloud sync and reporting | Full cloud sync with AI analysis |
| Upgradeable to Higher Model | Yes via cloud activation | Not applicable | Not applicable |
Specialists In Solar PV Test Equipment
Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
Key Features
- Supports 1500 VDC utility-scale PV systems
- Optimised for TOPCon, HJT, IBC & n-PERT modules
- Accurate Isc measurements up to 40 A on high-capacitance strings
- Handles >100 A inrush currents with proprietary measurement method
- IEC 62446-1 compliant (Voc, Isc, Riso, polarity test)
- Ground fault localisation (±0.5 module accuracy)
- Measures series resistance (Rs) via impedance spectroscopy
- Fast MPP estimation (no IV curve required)
- 3-channel voltage monitoring for real-time diagnostics
- Integrated tone generator & probe for cable tracing
- Bluetooth + mobile app control (iOS & Android)
- Automatic cloud sync with AI diagnostics (Max AI)
- Logs GPS, environmental data, photos & string IDs
- STC correction support (with Tempirra sensor)
- Rugged IP65 Peli case for field durability
- CAT III 1500 V safety rated
- 8–10 hour battery life, fast recharge
What's In The Box?
- Z300 PVT HE instrument
- Rechargeable Li-Ion battery pack
- AC charger and country-specific power cable
- Handheld tone pickup probe
- 1500 V CAT III test leads
- MC4 PV measuring cords
- Ground lead with crocodile clip
- Insulated alligator clips
- Fine probe set
- Carry bag for accessories
| No |
|
Electrical Measurements Capabilities
Performance & Diagnosis Functions
Standards & Compliance
Connectivity & Data Management
Mechanical & Environmental
Power Supply
Supported PV Technologies
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Emazys Z300 HE PV Datasheet | 442.1 KB | Download |
