- Emazys Z300 PVT Kit (1500V)
- Battery
- Battery charger
- Banana MC4 PV testing leads
- GND testing leads
- Power cord
- Tone pickup
Emazys Z300 PVT Kit 1500V Solar Tester
SKU: EMAZZ300PVT
- Perform complex troubleshooting and photovoltaic testing
- String test sequence that will measure Voc, ISC Riso and the position of an eventual Riso fault
- App controlled and cloud connected for effortless data management
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Emazys Z300 PVT Kit (1500V)
The Emazys Z300 PVT Kit (1500V) is a solar PV tester designed to perform photovoltaic testing and troubleshooting with app control and cloud connection for effortless data management. The Emazys Z300 PVT provides users with a number of functions including String test sequence which allows for the measurements of Voc (0 to 1500V) , Isc (0-30A), Riso (0 – 40 MΩ) and the position of an eventual Riso fault with the resistance range for insulation resistance RISO test of 0 – 40 MΩ. Once a measurement has been taken, users may add the PV module data from the database and record the irradiance levels, alongside the cell and ambient temperatures.
Emazys data cloud and Controller App
The Controller app can be downloaded on both iOS and Android devices with Images also taken using the controller app with session level information, PV site name, PV site address and String. The GPS coordinates of test measurements will automatically be stored on the report to further enhance traceability. Open circuit voltage (1500V) and short circuit current (30A) test measurements can be stored and accessed in future when used alongside the Emazys data cloud and saved with one click when logged into the Z300 PVT controller app. When viewing data on the cloud, users can study test results individually on a GEO map and export the data as a customisable PDF and CSV files.
The tone generator function of the Z300 PVT allows for tracing cables, modules and faults in PV arrays and module assemblies. When the tone generator is activated users are able to trace any transmitted signals in cases and modules that are connected to the Z300 PVT. Battery powered, the Z300 PVT has an operation time of 8-10 hours, suitable for a full days use in the field.
Irradiance and temperature measurement
The Z300 PVT is compatible with the Emazys Tempirra PV Irradiance and Temperature Datalogger and the Testo 810 Thermometer, where test readings obtained with these units can be manually entered into the Emazys Controller App for further analysis. You can find both of these instruments in the 'Optional Accessories' tab above.
When used with the Emazys Z300, the Tempirra Logger adds irradiance and temperature measurements alongside your PV electrical test results, so you can assess performance against the real site conditions. This helps confirm whether low generation is caused by low sunlight or high module temperature, or if it points to a genuine system fault, and provides clearer context for reporting and troubleshooting.
Emazys Z300 PVT, Z300 Zuno & Z300 HE PV Comparison Table
| Z300 Zuno | Z300 PVT | Z300 HE PV | |
|---|---|---|---|
| Best used for | Fast string validation and standard electrical checks | Advanced diagnostics and fault finding | High-efficiency utility-scale PV diagnostics |
| Target module types | Standard PV modules | Standard utility-scale PV modules | TOPCon, HJT, IBC and n-PERT modules |
| System Voltage Rating | Up to 1500 V DC | Up to 1500 V DC | Up to 1500 V DC |
| Maximum Current | Up to 30 A DC | Up to 30 A DC | Up to 40 A DC |
| Advanced troubleshooting | Basic insulation fault location only | Full diagnostics, including Rs analysis | Full diagnostics with enhanced HE module analysis |
| Series Resistance (Rs) Measurement | Not included | Included | Included with impedance spectroscopy |
| Ground Fault Localisation | Basic | Included | Included with ±0.5 module accuracy |
| Tone Generator & Amplifier Probe | Not included | Included | Included |
| MPP Estimation | Not included | Not included | Included |
| Cloud Sync & Reporting | Basic cloud functionality | Full cloud sync and reporting | Full cloud sync with AI analysis |
| Upgradeable to Higher Model | Yes via cloud activation | Not applicable | Not applicable |
Specialists In Solar PV Test Equipment
Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
Key Features
- Voltage range for Voc test: 0-1500V
- Inc test: 0-30A
- Resistance range for isolation resistance Riso test: 0 – 40 MΩ
- Condition for Riso fault position test Riso: < 3MΩ
- Polarity testing
- Tone generator to map out strings
- Amplifier probe
- Wireless connection via Bluetooth to controller device
- Controller app available on both iOS and Android devices
- Cloud solution for controller app and save test results immediately to the cloud
- String tests complete in 20 seconds
- PDF and customisable CSV reports
- Rechargeable battery with operating time of 8-10 hours
What's In The Box?
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Emazys Z300 Datasheet | 1.9 MB | Download |
-
-
-
-
IET Code Of Practice for Grid Connected Solar Photovoltaic Systems (2nd Edition) SKU: IETCODESCSPS£67.50 (ex VAT)£67.50 (inc VAT) -
-

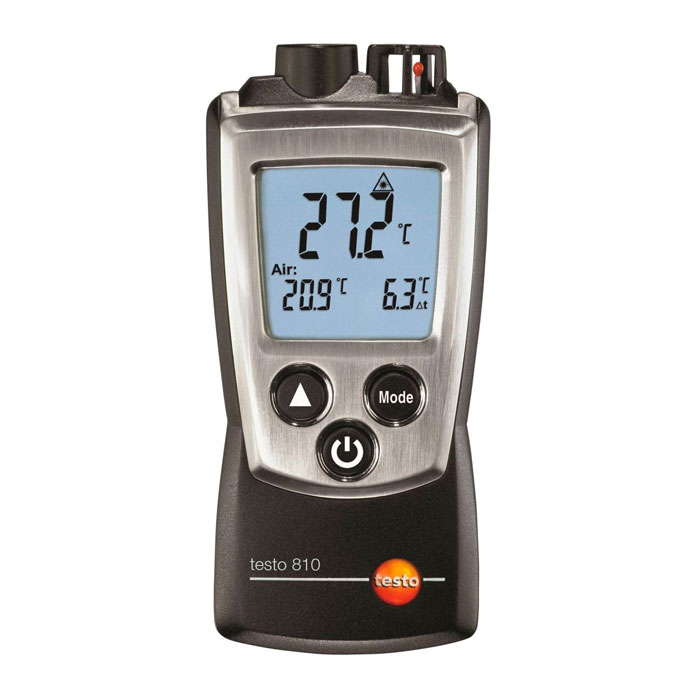

Testo 810 Infrared Air and Surface Temperature Thermometer SKU: TESTO810£75.00 (ex VAT)£90.00 (inc VAT) -
Emazys Tempirra PV Irradiance and Temperature Datalogger SKU: EMAZTEMPIRR£1,095.00 (ex VAT)£1,314.00 (inc VAT)
