Emazys Z300 zuno 1500V Solar Tester

Emazys
SKU: EMAZZ300ZUNO
  • A simplified PV tester designed for fast and standard electrical checks
  • Max-AI Empowered
  • Fully field-upgradable to the Z300 PVT if specialist diagnostic features are required at a later date
More Info
In Stock - Available Next Day

Emazys Z300 zuno 1500V Solar Tester

The Emazys Z300 zuno 1500V Solar Tester is a simplified PV tester designed to perform fast, standard electrical checks during modern solar farm commissioning and maintenance. The electrical tests it performs include open-circuit voltage, short-circuit current, polarity, insulation resistance, and insulation fault location – covering everything required to efficiently validate a PV string in the field.

All results are captured and synchronised in real time through the Emazys Cloud, giving users immediate visibility across an entire project. Each measurement is automatically tagged with GPS location, timestamp, and optional on-site photos, ensuring full traceability while simplifying reporting. Users can access their data from anywhere, generate professional reports in PDF, CSV, or Excel formats, and structure results to match their existing workflows.

AI-Powered Insights with Max

Emazys’ AI assistant, Max – built directly into the cloud platform – helps you interpret field test results, provides quick insight summaries, and answers technical questions. By simply logging in to the Emazys Cloud, Max AI can access your test data and deliver tailored insights instantly, making it one of the fastest ways to obtain expert-level guidance, anytime, 24/7. A public version of Max AI is also available on the Emazys website. While it does not access personal or project data, it can still answer general questions and guide users through technical topics and product-related enquiries. Max AI is still learning. The more it interacts with users, the smarter and more accurate it becomes, and your patience is appreciated as it continues to improve and expand his knowledge.

Hardware & Module Compatibility

Despite its simplicity, the Z300 zuno shares the same inrush‑robust hardware platform as the Z300 PVT. This makes it fully compatible with high‑efficiency module technologies including TOPCon, HJT, and bifacial panels. The instrument uses Bluetooth to connect to the Emazys Controller App, allowing operation to be straightforward while maintaining high levels of safety and measurement precision.

The Z300 zuno is fully field‑upgradable to the Z300 PVT, unlocking advanced diagnostic features through a cloud‑based activation, without having to return the it to a service centre. Once upgraded, all historical test data will automatically be enriched with series resistance values, adding deeper analytical value to previous measurements.

Please note: Should you consider this upgrade at a later stage, you can simply get in touch with the Test-Meter sales department to have this additional function enabled.

Irradiance and Temperature Measurement

The Z300 zuno is compatible with the Emazys Tempirra PV Irradiance and Temperature Datalogger, where test readings obtained on this unit can be manually entered into the Emazys Controller App for further analysis. You can find the instrument in the 'Optional Accessories' tab above or add tick it before adding to the basket.

The Tempirra Datalogger, used with the Z300 zuno, adds irradiance and temperature measurements alongside your PV electrical test results, so you can assess performance against the real site conditions. This helps confirm whether low generation is caused by low sunlight or high module temperature, or if it points to a genuine system fault, and provides clearer context for reporting and troubleshooting.

Part number: Z300 zuno

Emazys Z300 PVT, Z300 Zuno & Z300 HE PV Comparison Table

  Z300 Zuno Z300 PVT Z300 HE PV
Best used for Fast string validation and standard electrical checks Advanced diagnostics and fault finding High-efficiency utility-scale PV diagnostics
Target module types Standard PV modules Standard utility-scale PV modules TOPCon, HJT, IBC and n-PERT modules
System Voltage Rating Up to 1500 V DC Up to 1500 V DC Up to 1500 V DC
Maximum Current Up to 30 A DC Up to 30 A DC Up to 40 A DC
Advanced troubleshooting Basic insulation fault location only Full diagnostics, including Rs analysis Full diagnostics with enhanced HE module analysis
Series Resistance (Rs) Measurement Not included Included Included with impedance spectroscopy
Ground Fault Localisation Basic Included Included with ±0.5 module accuracy
Tone Generator & Amplifier Probe Not included Included Included
MPP Estimation Not included Not included Included
Cloud Sync & Reporting Basic cloud functionality Full cloud sync and reporting Full cloud sync with AI analysis
Upgradeable to Higher Model Yes via cloud activation Not applicable Not applicable

Specialists In Solar PV Test Equipment

Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.

As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.

Find the best solution for your application and budget through:

  • Onsite-demo/remote consultations on request
  • 'Try Before You Buy' and hire options available
  • After-sales care that provides ongoing calibration and servicing
  • Finding the optimal software package, ensuring the correct reporting and data functionality for your needs

Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk

Key Features

  • Test 1000s of modules per day
  • Locate faults
  • Highly user-friendly software - easy to get started
  • Reports are instantly available in the cloud
  • Compatible with high efficiency and bifacial modules
  • Upgrade to Z300 PVT features any time
  • Cloud: Free, Premium, and Team licence available
  • AI analysis and support available on all cloud tiers

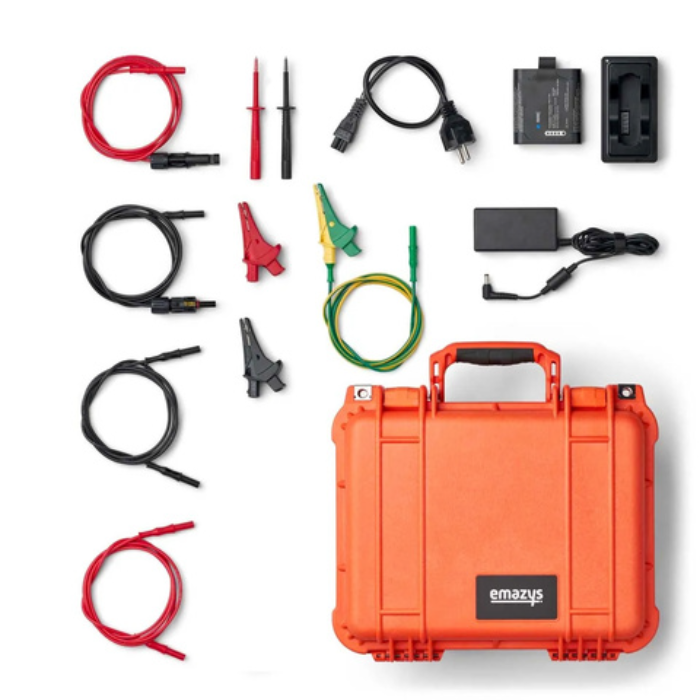

What's In The Box?

  • Z300 zuno instrument
  • RRC 2054 rechargeable Li-ion battery
  • RRC-SMB-MBC-RRC battery charger
  • Power cable for charger, country specific
  • Test lead (black) 1500V CAT III
  • Test lead (red) 1500V CAT III
  • PV measuring cord, MC4 female 1500V CAT III (black)
  • PV measuring cord, MC4 male 1500V CAT III (red)
  • Crocodile clip to banana lead, GND 1500V CAT III (yellow/green)
  • Insulated alligator clip 1500V CAT III (black)
  • Insulated alligator clip 1500V CAT III (red)
  • Fine probe 1000V CAT IV (black)
  • Fine probe 1000V CAT IV (red)
  • Carry bag for accessories
Specification
  • Open circuit voltage Voc: [0 – 1500V]
  • Short circuit current Isc: [0 – 30A]
  • In-rush current protection: Yes, zuno works well with high efficiency and bi-facial PV modules
  • Electrical polarity: [OK or Reverse]
  • Isolation resistance Riso: [0 – 99 MΩ]
  • Ground Fault Locater function: Yes, faults can be located when Riso < 3MΩ
  • One-click upgrade to Z300 PVT: Yes, unlocks full feature set on same hardware; historical data enriched with series resistance
  • Save to cloud functionality: Yes, included, free user cloud solution, unlimited storage
  • Controller App for smart devices: Yes, supports iOS and Android
  • Meta data in reports: GPS, timestamp, photo, environment data, user data etc.
  • Module data base: Yes, included on cloud
  • Web / cloud interface: Yes, access to test results data via web portal (cloud)
  • Report formats: PDF, CSV, EXCEL
  • Typical fault types that can be located at module level: Ground faults
  • External dimensions: 334.6 x 303 x 155.2 (mm)
  • Hard case: resin case, polypropylene TTX01
  • Weight: 3.75 kg
  • HS Code: 90304000
  • Rechargeable battery with operating time of 8-10 hours
