Fluke TiX580 Thermal Imaging Camera

Fluke
SKU: FLUKETIX580
  • Thermal imaging camera with 640 x 480 (307,200 pixels) Fluke SuperResolution creates a 1280 x 960 resolution image (1,228,800 pixels)
  • LaserSharp Auto Focus feature, calculates & displays target distance before adjusting the focus
  • 5.7 inch rotating and responsive LCD touchscreen. Available in 9Hz or 60Hz frame rate
More Info

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke TiX580 Thermal Imaging Camera

The Fluke TiX580 Infrared Camera is a high definition infrared thermal imager that can be used in numerous fields to identify potential issues before they become a problem. Suitable for preventative maintenance and outdoor inspections the Fluke TiX580 is an ergonomic and robust thermal camera giving users the ability to capture high quality images in multiple environments. The TiX580 boasts a detector resolution of 640 x 480 (307,200 pixels) which, when used alongside Flukes SuperResoultion, images of 4 times the pixel data (1280 x 960 pixels) can be generated.

The 5.7inch touch screen of the TiX580 shows viewers images and measurements on a 640 x 480 resolution LCD screen. The integrated laser distance meter, provides users the ability to accurately measure the distance of target objects, with the measurement shown on screen. The digital zoom (2x, 4x and 8x) allows users to zoom in on objects without losing focus. The 240º rotating lens allows users to capture images in hard to reach places.

The Fluke TiX580 offers a temperature range of -20ºC and 1000ºC with an accuracy of ±2°C/ 2%. The thermal sensitivity of ≤0.05°C at 30°C target temp (50 mK) and field of view 34°H x 24°V offer a minimum focus distance of 15cm.

The Fluke TiX580 Infrared Camera is available in two models with different frame rates:

  • Fluke TiX580 High Resolution Thermal Imaging Camera 9Hz
  • Fluke TiX580 High Resolution Thermal Imaging Camera 60Hz

The TiX580 is powered by one of the two lithium batteries supplied. Each battery provides 2-3 hours of use. Adjustable neck and hand straps provide the user with added comfort when operating the TiX4580. The camera is IP54 rated protecting the unit from water and dust ingress and I drop tested from 1m with the standard lens. The included hard carry case offers further protection. Using the MATLAB® and LabVIEW® tool boxes, users can integrate camera data, infrared video and images into software to support R&D analysis. With a two year warranty from Fluke, The TiX680 is a rugged and durable camera suitable for industrial use in many environments.

Voice annotation up to 60 seconds maximum recording time per image can be attached and are reviewable with playback on the camera. Data can also be stored on the 4GB microSD memory card and 4GB flash memory.

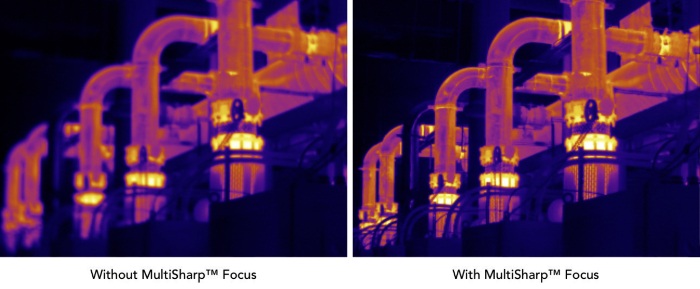

Fluke MultiSharp™ Focus

Using the Fluke MultiSharp™ Focus ensures the images and targets are in focus in the TiX580 field of view. The camera captures multiple images and then combines them into one single image with all targeted subjects in focus. When combined with SuperResolution, Fluke MultiSharp™ Focus can be used when images are blurry.

Fluke LaserSharp™ Auto Focus

The Fluke TiX580 includes an integrated laser distance meter which calculates the distance the camera is from a specified target. Using the Fluke LaserSharp™ Auto Focus allows the thermographer to view the target object in the clearest clarity.

Fluke Connect™

Thew Fluke TiX580 when used with the Fluke Connect™ App on a smart device (available as a free download from Fluke) users are able to manage, store and analyse data. Files can be exported using the software in Bitmap (.bmp), GIF, JPEG, PNG, TIFF files. Fluke connect can be connected to a users smart device and can be used in the field allowing real time data to be viewed and shared remotely. Reports can be generated easily and shared via email with colleagues and/or customers. Data from the Fluke Connect™ can be uploaded to Fluke Cloud for further storage.

IR-Fusion™ Blending Technology

Using the IR-Fusion™ Blending Technology adds the context of the visible details to the infrared image. The Fluke TiS580 also includes a built in 5MP digital camera allowing the TiX580 to blend the IR and digital images together providing a more detailed image.

The user is able to alter the IR image colour palette in order to view temperature differences clearer. 8 colour palettes can be chosen on the touch screen: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra and Grayscale Inverted Ultra. Users are able to apply a colour alarm (temperature alarms): High temperature, low temperature, and isotherms (within range) and marker, when the pre set temperatures are exceeded the alarm alerts the user.

SuperResolution

Using SuperResolution transforms a 680 x 480 px image into a 4x pixel datas image of 1280 x 960. The TiX580 takes one image and using the Fluke SuperResolution four images are taken and overlapped creating the 1280 x 960 image.

Optional Fluke Smart Lenses

Using Flukes telephoto smart lens (x2) and wide-angle smart lens, users are able interchange lenses without the need for calibration. Users are able to combine the TiX580 with the optional additional lenses to capture differing sized targets, at different distances, allowing for complete inspections in varying environments.

Key Features

  • 640 x 480 (307,200 pixels) detector resolution
  • 4x resolution 1280 x 960 with SuperResolution
  • Temperature measurement range of -20 °C to +800 °C (-4 °F to +1472 °F)
  • Thermal sensitivity (NETD) = 0.05 °C at 30 °C target temp (50 mK)
  • IFOV with standard lens: 0.93 mRad, D:S 1065:1
  • MultiSharp Focus
  • LaserSharp Autofocus
  • In-built laser for accurate distance measurement
  • 5.7inch landscape LCD touchscreen
  • 240º Rotatable lens
  • 2x, 4x and 8x digital zoom
  • AutoBlend mode combines IR and digital images
  • In built 4MP digital camera
  • Picture in Picture 100%, 75%, 50% 25% IR
  • Fluke Connect Connectivity
  • Colour alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)
  • Hand and neck straps for added comfort
  • 2 x lithium battery
  • 2-3 hours usage per battery
  • 8 Colour palettes: Ironbow, High Contrast, Amber, Amber Inverted, Blue-Red, Hot Metal, Grayscale, Grayscale inverted
  • Up to 60 second voice annotations can be added to images
  • Laser pointer and LED torch
  • Continuous level and span adjustments
  • MATLAB® and LabVIEW® compatibility to allow users to integrate camera data, infrared video and images to support R&D analysis.

Fluke Ti-Series Comparison Table

  Ti300+ Ti401 PRO Ti480 PRO TiX501 TiX580
Field of View 34 °H x 24 °V
IFOV 1.85 mRad, D:S 532:1 0.93 mRad, D:S 1065:1
Infrared Resolution 320 x 240 (76,800 pixels) 640 x 480 (307,200 pixels)
MATLAB & LabVIEW tool boxes - Integrate camera data, infrared video and images into software to support R&D analysis
Touchscreen Display 3.5 inch (landscape), 640 x 480 LCD 5.7 inch (14.4 cm) landscape 640 x 480 LCD
Ergonomic Design Pistol-grip design for one-handed use 240 ° rotatable (articulating) lens
Drop 2 meter (6.5 feet) 1 meter (3.3 feet)
Size (H x W x L) 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) 27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in)
Weight (with battery) 1.04 kg (2.3 lb) 1.54 kg (3.4 lb)
Super Resolution - - ✔ - ✔
MultiSharp Focus - - ✔ - ✔
LaserSharp Auto Focus ✔ ✔ ✔ ✔ ✔
IR-Fusion ✔ ✔ ✔ ✔ ✔
Auto Capture - - ✔ - ✔
Thermal Sensitivity (NETD) = 0.075 °C at 30 °C target temp (75 mK) = 0.075 °C at 30 °C target temp (75 mK) = 0.05 °C at 30 °C target temp (50 mK) = 0.075 °C at 30 °C target temp (75 mK) = 0.05 °C at 30 °C target temp (50 mK)
Digital Zoom - - 2x and 4x 2x 2x, 4x, 8x
Image File Formats bmp, jpeg, is2 bmp, jpeg, is2 bmp, jpeg, is2 bmp, jpeg, is2 bmp, jpeg, is2
IR-PhotoNotes ✔- 2 images ✔- 2 images ✔- 5 images ✔- 2 images ✔- 5 images
Video Recording - - Standard and radiometric Standard Standard and radiometric
Remote Control - Remote display through Fluke Connect Remote display and control operation through Fluke Connect Remote display through Fluke Connect Remote display and control operation through Fluke Connect

What's In The Box?

  • Fluke TiX580 Thermal Imager with standard infrared lens
  • Ac Power supply and battery pack charger (including universal AC adaptors)
  • Two rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Bluetooth headset (where available)
  • Rugged, hard carry case
  • Adjustable neck and hand strap
  • Fluke Connect® SmartView® desktop software and users manual downloadable for free
Specification

Key Features

  • IFOV with standard lens (spatial resolution: o.93 mRad, D:S 1065:1
  • Detector resolution: 640 x 480 (307,200 pixels)
  • SuperResolution: Yes on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
  • MultiSharp™ Focus: Yes focused near and far, throughout the field of view
  • LaserSharp® Auto Focus: Yes, for consistently in-focus images
  • Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance in screen
  • Advanced manual focus: Yes
  • Touch screen display (capacitive): 5.7 inch (14.4cm) landscape 640 x 480 LCD
  • Rugged and ergonomic design: 240º retake (articulating) lens
  • Digital zoom: 2x 4x and 8x
  • Pre-calibrated lenses: wide angle, 2x telephoto, 4x telephoto and 25 micron/macro
  • Temperature measurement range (not calibrated below -10ºC): -20ºC to 1000ºC (-4ºF to 1832ºF)
  • Accuracy: ±2°C or 2% (at 25°C nominal, whichever is greater)
  • Thermal sensitivity (NETD): ≤ 0.05°C at 30°C target temp (50 mK)
  • On-screen emissivity correction: Yes (both value and table)
  • On-screen reflected background temperature compensation: Yes
  • On-screen transmission correction: Yes
  • Live line marker: Yes

Wireless connectivity

  • To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
  • Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
  • Fluke Connect Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
  • Fluke Connect Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
  • Fluke Connect tool compatible: Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported.
  • Fluke Connect SmartView desktop software: Yes

IR-Fusion® technology

  • Adds the context of the visible details to your infrared image
  • AutoBlend™ mode: Continuously variable
  • Picture-In-Picture (PIP): 100%, 75%, 50%, 25% IR
  • Built-in digital camera (visible light): 5MP

Lenses

    Standard Lens:
  • IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
  • Field of view: 34°H x 24°V
  • Minimum focus distance: 15cm (approx. 6in)
  • IR-Fusion® technology: Picture-in-picture and full screen
    • Optional 2x telephoto smart lens
  • IFOV (spatial resolution): 0.33 mRad. D:S is 2145.1
  • Field of view: 12°H x 8.5°V
  • Minimum focus distance: 45cm (approx. 18in)
  • IR-Fusion® technology: Picture-in-picture and full screen
    • Optional wide-angle smart lens
  • IFOV (spatial resolution): 1.85 mRad, D:S is 525:1
  • Field of view: 48°H x 34°V
  • Minimum focus distance: 15cm (approx. 6in)
  • IR-Fusion® technology: Full screen

Level and Span

  • Smooth auto and manual scaling
  • Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen
  • Fast auto toggle between manual and auto modes: Yes
  • Fast auto-rescale in manual mode: Yes
  • Minimum span (in manual mode): 2ºC (3.6ºF)
  • Minimum span (in auto mode): 3ºC (5.4ºF)

Data storage and image capture

  • Extensive memory options: Removable 4GB micro SD memory card, 4GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
  • Image file formats: Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
  • Memory view: Thumbnail and fullscreen review
  • Software: Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
  • Export file formats with Fluke Connect software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF
  • Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera
  • IR-PhotoNotes™: Standard and radiometric
  • Remote display viewing: Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
  • Auto capture (temperature and interval): Yes
  • MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into these software platforms to support R&D analysis

Battery

  • Battery (field- replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level
  • Battery life: 2-3 hours per battery (actual life varies depending on settings and usage)
  • Battery charge time: 2.5 hours to full charge
  • Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
  • AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
  • Power saving: User selectable sleep and power off modes

Colour palettes

  • Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
  • Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General Specifications

  • Frame rate: 60 Hz or 9Hz
  • Laser pointer: Yes
  • LED light (torch): Yes
  • Colour alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)
  • Center-point temperature measurement: Yes
  • Spot temperature: Hot and cold spot markers
  • User-definable: 3 user-definable spot markers
  • Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display
  • Infrared spectral band: 7.5 μm to 14 μm (long wave)
  • Operating temperature: -10°C to +50°C (14°F to 122°F)
  • Storage temperature: -20°C to +50°C (-4°F to 122°F)
  • Relative humidity: 10% to 95% non-condensing
  • Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2
  • Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
  • Australian RCM: IEC 61326-1
  • US FCC: CFR 47, Part 15 Subpart B
  • Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
  • Shock: 25g, IEC 60068-2-29
  • Drop: 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
  • Size (H x W x L): 27.3 x 15.9 x 9.7cm (10.8 x 6.3 x 3.8in)
  • Weight (battery included): 1.54kg (3.4lb)
  • Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
  • Warranty: Two years (standard) extended warranted are available
  • Recommended calibration cycle: Two-years (assumes normal operation and normal aging)
  • Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Label Type Size Download
pdf Fluke TiX580 Thermal Camera Datasheet pdf 2.6 MB Download
