Kewtech KT63DL Multifunction 5 in 1 Tester

SKU
KEWTKT63DL
  • A user-friendly 5 in 1 multifunction tester boasting a multitude of features
  • Up to 1000V insulation test & auto-ranging continuity measurement up to 2000Ω
  • Anti-Trip Technology for full no trip Loop testing of all RCD types
More Info
inc VAT £534.00 ex VAT £445.00
Typically ships in 1-3 working days
Choose Your Free Gift
50m R2 Wander Lead
Free
£39.00

Key features:

  • Easy-to-use 50m R2 Wander Reel in a sturdy drum
  • Direct R2 measurement suitable for main earth bond testing
  • Ideal for increasing electrical installation testing efficiency
VTEK900 Electricians Kit (FREE GIFT)
Free
£38.95

VTEK900 Kit includes:

  • TEK900 Voltage & Continuity Tester
  • TEK989 Socket Tester
  • TEK7100 Non-contact Volt Stick
HandyMAN TEK775 Earth Leakage Clamp Meter
Free
£69.00

Key features:

  • Compact and east to operate Earth Leakage Clamp Meter
  • Ideal for fault finding leakage currents causing nuissance tripping
  • Includes 3 ranges: 200mA, 2A and 200A and resolution of 100µA


Product Details

Kewtech KT63DL Multifunction 5 in 1 Tester

The Kewtech KT63DL Multifunction 5 in 1 Tester packs an array of features into a simple, user-friendly system ideal for testing and certifying both domestic and commercial electrical installations. The device is capable of insulation testing up to 1000V with an auto discharge function, auto ranging continuity measurements up to 2000Ω and full no trip Loop testing on all types of RCD. PSC/PFC results are displayed simultaneously with loop impedance and new anti-trip loop testing technology which when combined with continuous live monitoring, ensures no bangs during testing including throughout the auto test for RCDs up to 30mA. These results include a low susceptibility to RCD uplift and noise interference for maximum reliability, a ramp test function is also incorporated.

Featuring test leads which auto-null for continuity, the KT63DL can perform mains polarity tests and is fully protected against phase to phase connection. An independent hands-free mode controlled by a separate button and built-in instant correct wiring status check improves not only the efficiency of the instrument, but the overall safety of the operator. The IP65 rated casing is lightweight and ergonomic with a tactile interface consisting of easy-press buttons and a single rotary dial for function selection. An end of line calibration certificate is included with the KT63DL, completed with an ACC063 3 wire distribution board test lead and soft carrying case.

Key Features

  • Easy to use 5 in 1 tester
  • 250 / 500 / 1000V insulation test with auto discharge.
  • Rapid loop circuits
  • Auto ranging Continuity measurement up to 2000Ω
  • New Anti Trip Technology loop test
  • Full no trip Loop testing for RCDs of all types
  • RCD auto test mode for 30mA RCDs
  • Low susceptibility of RCD uplift and noise interference
  • RCD ramp test function
  • Displays PFC/PSC alongside Loop readings
  • Test leads auto-null for continuity mode.
  • Mains polarity test
  • Protected against phase to phase connection
  • Continuous live monitoring preventing fuse blowing
  • Hand-free mode controlled by separate button
  • Instant correct wiring status check
  • End of line calibration certificate included
  • Ergonomic user interface
  • Single rotary dial for function selection
  • IP65

Kewtech part number: KT63DL

Kewtech KT6x Series Comparison Table

  KT63DL KT63 Plus KT65DL KT66DL
200mA Continuity Test
Automatic Test Lead Null
250, 500 & 1000V Insulation Resistance

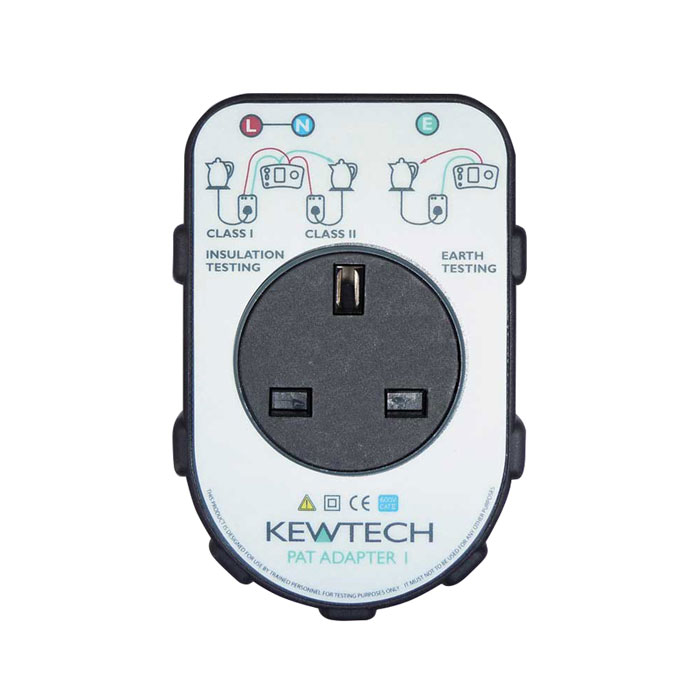

PAT Testing with optional PAT Adaptor 1
Continuous Live Warning
High Voltage LED Light
3 Wire No-Trip Loop Test
2 Wire No-Trip Loop Test
High Current Loop Test
PSC/PFC Test
RCD Type AC & A: 10, 30, 100, 300 & 500 mA
RCD Type ACS & A: 100 & 300 mA
RCD Type AC: ACS, ACS & AS 10, 30, 100, 300, 500 & 1000 mA
RCD Auto Test: 30 mA
RCD Auto Test: 10, 30, 100, 300, 500 & 1000 mA
RCD Auto Test All Results On One Screen
6mA DC RCD Test (for EVSE)
'Hands Free' Testing
Wiring & Lead Polarity Check
Volts Measurement
Backlight
Soft Carry Case
IP Rating 54 54 40 40
All Auto RCD Results On One Screen
Remote Test Probe Included
0.001Ω Resolution High Current Loop Test
55V Loop Test
Phase Rotation
Protective Lid On Instrument
Touch Pad for Earth Potential Limits (25V or 50V)
Lockout Test Button
Earth Resistance Test
PAT Test Firmware
Download Memory
Colour Screen
Kewtech KT63DL Multifunction 5 in 1 Tester The Kewtech KT63DL Multifunction 5 in 1 Tester packs an array of features into a simple, user-friendly system ideal for testing and certifying both domestic and commercial electrical installations. The device is capable of insulation testing up to 1000V with an auto discharge function, auto ranging continuity measurements up to 2000Ω and full no trip Loop testing on all types of RCD. PSC/PFC results are displayed simultaneously with loop impedance and new anti-trip loop testing technology which when combined with continuous live monitoring, ensures no bangs during testing including throughout the auto test for RCDs up to 30mA. These results include a low susceptibility to RCD uplift and noise interference for maximum reliability, a ramp test function is also incorporated. Featuring test leads which auto-null for continuity, the KT63DL can perform mains polarity tests and is fully protected against phase to phase connection. An independent hands-free mode controlled by a separate button and built-in instant correct wiring status check improves not only the efficiency of the instrument, but the overall safety of the operator. The IP65 rated casing is lightweight and ergonomic with a tactile interface consisting of easy-press buttons and a single rotary dial for function selection. An end of line calibration certificate is included with the KT63DL, completed with an ACC063 3 wire distribution board test lead and soft carrying case. Key Features Easy to use 5 in 1 tester 250 / 500 / 1000V insulation test with auto discharge. Rapid loop circuits Auto ranging Continuity measurement up to 2000Ω New Anti Trip Technology loop test Full no trip Loop testing for RCDs of all types RCD auto test mode for 30mA RCDs Low susceptibility of RCD uplift and noise interference RCD ramp test function Displays PFC/PSC alongside Loop readings Test leads auto-null for continuity mode. Mains polarity test Protected against phase to phase connection Continuous live monitoring preventing fuse blowing Hand-free mode controlled by separate button Instant correct wiring status check End of line calibration certificate included Ergonomic user interface Single rotary dial for function selection IP65 rated Kewtech part number: KT63DL Kewtech MFT Model Comparison  KT63DLKT64DLKT65DL 200mA Continuity Test ✔ ✔ ✔ Automatic Test Lead Null ✔ ✔ ✔ 250, 500 & 1000V Insulation Resistance ✔ ✔ ✔ Anti-trip (ATT) Loop Test ✔ ✔ ✔ PSC/PFC Test ✔ ✔ ✔ RCD Test ✔ ✔ ✔ Automatic RCD Test 30mA Only ✔ ✔ RCD Ramp Test ✔ ✔ ✔ Phase Rotation Test     ✔ Earth Resistance Test     ✔ PAT Test Firmware      ✔ Download Memory     ✔ Live Circuit Warning   ✔ ✔ Remote Test Probe Included   ✔ ✔ Protective Lid   ✔ ✔ Lockout Test Button   ✔ ✔
What's In The Box?
  • Kewtech KT63DL Multifunction 5 in 1 Tester
  • ACC063 distribution board test lead set
  • Kamp 12 mains lead
  • Batteries
  • Printed Instruction Manual
  • Calibration Certificate
  • Soft Carry Case

RCD (Type AC, ACS, A, AS)

More Information
Specification

Continuity

Open Circuit Voltage
(DC)
Short Circuit CurrentRanges (Auto Range)Accuracy
> 4V, < 10V> 200mA9.99Ω, 99.9Ω, 1999Ω±3% ±2 digits

Test Lead Null 4Ω, Hazard warning LED > 25V, Typical Test Time (2Ω) < 2sec

Insulation

Open Circuit Voltage
(DC)
Output CurrentRanges (Auto Range)Accuracy
250V1mA - 0 = + 20% @ 250kΩ9.99MΩ, 99.9MΩ, 199MΩ±3% ±2 digits
500V1mA - 0 = + 20% @ 500kΩ9.99MΩ, 99.9MΩ, 199MΩ
499MΩ
±3% ±1 digits
±6% ±1 digits
1000V1mA - 0 = + 20% @ 1MΩ9.99MΩ, 99.9MΩ, 199MΩ
399MΩ
999MΩ, 99.9MΩ
±3% ±1 digits
±3% ±1 digits
±6% ±1 digits

Short circuit current (in to 2kΩ) < 2mA, Typical Test Time (10MΩ) < 2sec

Loop Impedance

RangeAccuracy
ATT No trip 0.00 - 9.99Ω±5% ±5 digits
ATT No trip 10.00 - 99.9Ω±3% ±3 digits
ATT No trip 100 - 500Ω±3% ±3 digits
High Current 0.00 - 500Ω±5% ±5 digits

PSC/PFC

PSC accuracy is derived
from measured loop impedance
specification and measured
voltage specification.
Voltage measurement:
+/- 3% 50/60Hz & 90 - 250V
FunctionAccuracyRated VoltageTripping Time Accuracy
X 1/2-0% to -10%195V - 253V AC
50Hz
Up to 1 second±(1% + 1ms)
X 1+0% to +10%Above 1 second±(1% + 10ms)
X 5+0% to +10%
Ramp TestIncrements in 3mA steps
Auto test30mA RCD1/2 x 0˚, 1/2 x 180˚, 1 x 0˚, 1 x 180˚, 5 x 0˚, 5 x 180˚
