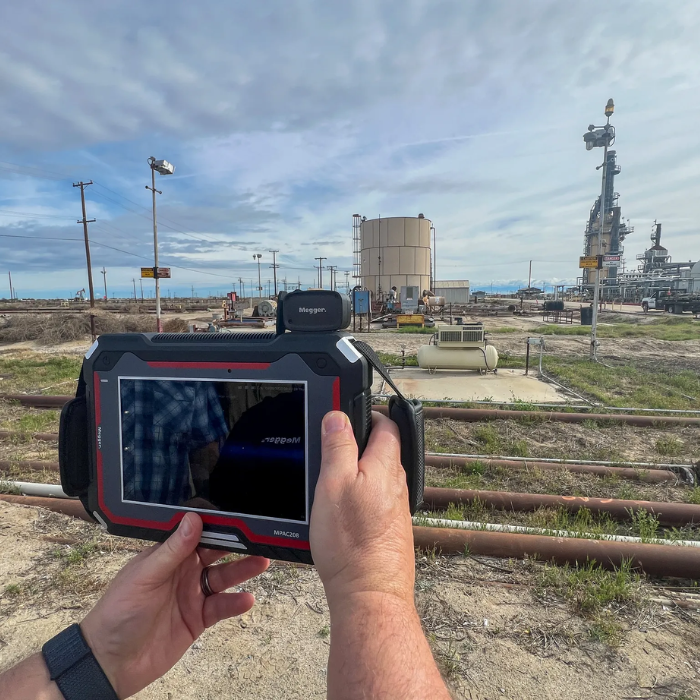

Megger MPAC208-IECEx Acoustic Camera for Explosive Environments

The Megger MPAC208-IECEx Acoustic Camera for Explosive Environments includes all the capabilities of the standard MPAC208 but is specifically engineered and certified for safe use in explosive gas and dust environments. It carries IECEx certification rated for Group II 3G Ex ic IIC T5 Gc (explosive gas atmospheres) and Group II 3D Ex ic IIIC T100°C Dc (combustible dust). This makes it compliant for hazardous zones such as petrochemical refineries, gas processing plants, fuel storage facilities, chemical plants, grain silos and other dust-prone processing sites.

Just like the standard MPAC208, the MPAC208-IECEx features a 208-channel MEMS microphone array that works across a 2 kHz to 100 kHz frequency range. This make it ideal for identifying ultrasonic emissions from compressed air leaks, electrical partial discharge, and early‑stage mechanical deterioration. It supports a detection range from 0.5m to 200m, making it effective for both close‑up inspections and safe stand‑off assessments around high‑voltage or hard‑to‑reach equipment. The system includes built‑in leak‑rate and cost‑impact estimation, helping maintenance teams prioritise energy‑loss issues based on their financial impact.

The MPAC208-IECEx offers three straightforward core operating modes:

• Partial Discharge Mode: Captures PD activity and provides Phase Resolved Partial Discharge (PRPD) analysis, helping identify and differentiate between types of partial discharge during electrical inspections.
• Mechanical Mode: Supports predictive maintenance by detecting developing issues in bearings, valves, and rotating machinery – even in noisy industrial settings.
• Focus Mode: Reduces background interference, while SoundScan™ directional guidance points users toward the dominant sound source, even when it lies outside the visible frame. Ultrasound‑to‑audible conversion provides intuitive audio feedback to help confirm acoustic findings.

It boasts an internal storage of 64GB plus an additional 64GB microSD card, with data export supported through Wi‑Fi, USB‑C flash drive, Bluetooth®, or microSD. Automatic MEMS microphone self-verification ensures correct operation, and it can be verified when paired with the optional Megger MPAC-V acoustic camera verifier for frequency and SPL checks. Acoustic and Thermal Analysis Software is included for comprehensive post-inspection analysis, reporting and data management.

For non‑hazardous environments, the MPAC208 is completely sufficient and identical in performance, however, if it involves explosive gases, chemical plants, refineries, grain storage, fuel depots, or hazardous zones, then the MPAC208‑IECEx is the appropriate and compliant choice.

Part number: 1016-918

Key Features

• Certified for explosive environments with IECEx Group II 3G Ex ic IIC T5 Gc and Group II 3D Ex ic IIIC T100°C Dc ratings
• 208‑channel MEMS microphone array for high‑precision ultrasonic detection from 2 kHz to 100 kHz
• Detection range of 0.5 m to 200 m for close‑up and long‑distance inspection
• Three core operating modes: Gas Leak, Partial Discharge (PRPD), and Mechanical diagnostics
• Built‑in leak‑rate and energy‑loss quantification for maintenance prioritization
• Focus function and SoundScan™ to reduce noise and guide users toward the dominant sound source
• 13 MP optical camera with real‑time acoustic overlay for precise fault visualization
• 8‑inch 1920×1200 capacitive touchscreen for high‑clarity field display
• Time‑domain graphing and acoustic spectrogram for advanced signal analysis

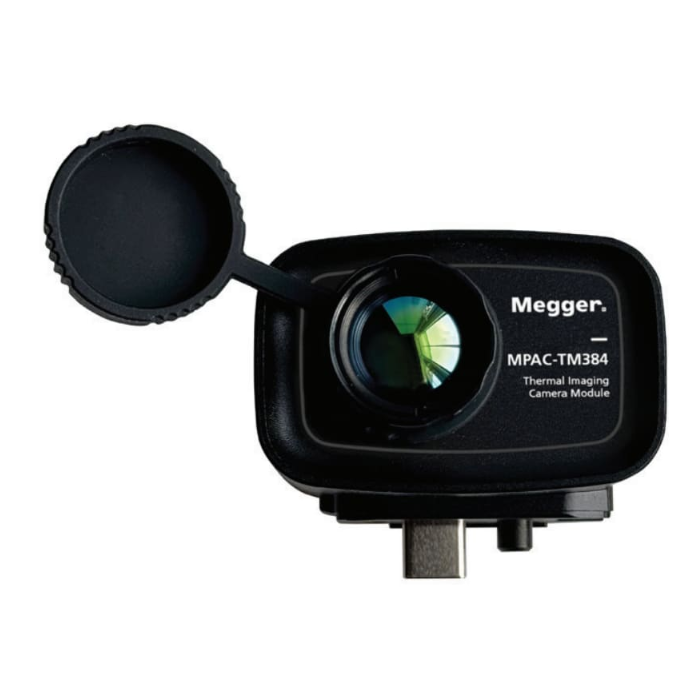

• Optional thermal imaging modules enabling thermal–acoustic comparison
• IP54 protection and –20°C to +50°C operating range for harsh environments
• Up to 10 hours of battery life using two smart Li‑ion packs
• 64 GB internal storage + 64 GB microSD, with export via Wi‑Fi, Bluetooth, USB‑C, and microSD
• Automatic MEMS microphone self‑verification with compatibility for the MPAC‑V Verifier
• Includes Acoustic & Thermal Analysis Software for comprehensive reporting
