Testo 300 Smart Flue Gas Analyser Advanced Kit - Limited Black Edition

SKU
TESTO0564300291
  • A smartphone-style flue gas analyser with a sophisticated touchscreen
  • Measures O2, CO, temperature, pressure and draught
  • Includes all Standard Kit contents plus pipe clamp probes & pressure hoses
More Info

As low as inc VAT £880.80 ex VAT £734.00

In Stock - Available Next Day
Choose Your Free Gift
HandyMAN TEK255 Pocket Size Digital Multimeter
Free
£23.95

Key features:

  • Ideal basic Digital Multimeter for Gas/HVAC Installers
  • Measures AC/DC voltage to 600V and resistance to 2MΩ
  • Temperature measurement from -20°C to 1000°C
  • Continuity buzzer, diode testing, data hold function and more
ETI Flow Cup Water Flow Measurement Gauge
Free
£19.00
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Free
£14.95

Set Contains:

  • 15mm pipe / tube cutter from Blue Spot Tools
  • 22mm pipe / tube cutter from Blue Spot Tools
  • Adjusts automatically to 15/22mm copper pipe
Testo 300 Smart Flue Gas Analyser Advanced Kit - Limited Black Edition
Testo 300 Smart Flue Gas Analyser Advanced Kit - Limited Black Edition

In stock

Customise Testo 300 Smart Flue Gas Analyser Advanced Kit - Limited Black Edition
1 x Testo 300 Smart Flue Gas Analyser Standard Kit - Limited Black Edition   + inc VAT £0.00 ex VAT £0.00

* Required Fields

Summary

    Product Details

    For a limited time, buy any Testo 300, 300LL, 320B or 327-1 and receive a FREE Testo work surface protector. Offer valid until 31.08.22. For full terms & conditions, please visit the Testo website.

    Testo 300 Smart Flue Gas Analyser Advanced Kit - Limited Black Edition

    The Testo 300 Flue Gas Analyser combines smartphone-style operation with advanced combustion analysis. This is carried out using a range of different measurement parameters such as oxygen, carbon monoxide, draught, pressure, temperature and ambient carbon monoxide. It can also calculate carbon dioxide levels, combustion ratio, efficiency and flue gas loss.

    The Testo 300 has a 5” colour touchscreen and is operated like a smartphone through intuitive menus. It will show multiple readings of the user’s choosing simultaneously and even provides timed graphs which can be inspected closely with the zoom function.

    Additionally, the analyser has a large internal memory which can be used to save clients’ contact details and test results in a logical database. The Testo 300 is capable of analysing results and has wireless Bluetooth and WLAN connectivity to distribute reports in a PDF format.

      Testo 310 Testo 327-1 Testo 320B Testo 300
    Sensors O2, CO O2, CO O2, CO O2, CO
    Measurement ranges CO: 0-4000ppm, CO2: 0-CO2 Max CO: 0-4000ppm, CO2: 0-CO2 Max CO: 0-4000ppm, CO2: 0-CO2 Max CO: 0-4000ppm, CO2: 0-CO2 Max
    NO / Nox Measurements No No No Optional
    Gas pressure testing
    Flow/return temperature measurement X
    Draught measurement Sepearate for Flue Gas measurement Parallel to Flue Gas Measurement Parallel to Flue Gas Measurement Parallel to Flue Gas Measurement
    O2 measurement (0 - 21%)
    Temperature measurement (0 - 400°C) (-40 - 600°C) (-40 - 1200°C) (-40 - 1200°C)
    Instant ready standby mode X X X
    Printer compatible
    Create & send reports directly (email/Bluetooth) X X X
    Inbuilt Android device X X X
    Software/app X X Export to Excel Testo EasyHeat PC Software
    Memory X X 20 measuring values 1 million measuring values
    Display 2-Line LCD Display 4-Line LCD Display Full Colour Display 5" HD Colour Display
    Touchscreen X X X
    Sensor Warranty 2 Years 3 Years 3 Years 3 Years
    Instrument Warranty 2 Years 2 Years 2 Years 2 Years

    Testo 300 Advanced Kit

    The Testo 300 Advanced Kit has a range of useful accessories to help enhance the measurement functions of the flue gas analyser itself. A compact flue gas probe is used to sample the exhaust of boilers and there are also pipe clamp temperature probes – ideal for measuring inflow and outflow temperatures – and a pressure hose connection set. Spare filters are also provided.

    Testo part number: 0564 3002 91

    Key Features

    • O2 measurement: 0 to 21%
    • CO measurement: 0 to 4000ppm
    • Draught measurement: -9.99mbar to 40mbar
    • Pressure measurement: -100mbar to 200mbar
    • Ambient CO measurement: 0 to 2000ppm
    • Temperature measurement: -40˚C to 1200˚C
    • Calculation: CO2, efficiency, combustion ration & flue loss
    • Advanced touchscreen interface
    • Intuitive menus and results display
    • Instant reports and analysis over WLAN connection
    • Sturdy, professional construction
    • Two-year warranty for instrument and sensors

    Testo 300 Limited Black Edition Kit Comparison

    Accessory Testo 300 Standalone Testo 300 Standard Kit Testo 300 Advanced Kit
    USB mains unit
    Compact flue gas probe -
    Instrument bag -
    2 x clamp probes (NTC) - -
    Pressure connection kit with 2 silicone hoses - -
    Measuring instrument adapter
    for Testo 300
    - -
    What's In The Box?
    • Testo 300 flue gas analyser
    • USB mains unit, including cable (0554 1105)
    • Compact basic flue gas probe
    • 2 x clamp probes (NTC)
    • Pressure connection kit with 2 silicone hoses
    • Measuring instrument adapter for testo 300 (0554 1203)
    • Soft-case style Instrument bag (0516 3001)
    More Information
    Specification

    O2 measurement

    • Range: 0 to 21%
    • Accuracy: ±0.2% vol
    • Resolution: 0.1% vol

    CO measurement

    • Range: 0 to 4000ppm
    • Accuracy: ±20 ppm (0 to 400 ppm); ±5% of m.v. (401 to 2,000 ppm); ±10% of m.v. (2001 to 4,000 ppm)
    • Resolution: 1ppm

    Combustion ratio (calculated)

    • Resolution: 0.0001

    Efficiency testing

    • Range: 0 to 120%
    • Resolution: 0.1%

    Flue gas loss

    • Range: 0 to 99.9%
    • Resolution: 0.1%

    CO2 determination

    • Range: 0 to CO2 max.
    • Accuracy: ±0.2% vol
    • Resolution: 0.1% vol

    Draught measurement

    • Range: -9.99 to +40mbar
    • Accuracy: ±0.005 mbar (0 to 0.1 mbar); ±0.02 mbar (0.1 to +3.00 mbar); ±1.5% of m.v. (+3.01 to +40 mbar)
    • Resolution: 0.001mbar (0 to 0.1mbar); 0.01mbar (rest of range)

    Pressure measurement

    • Range: -100mbar to +200mbar
    • Accuracy: ±0.5 mbar (0 to +50.0 mbar); ±1% of m.v. (+50.1 to +100.0 mbar); ±1.5% of m.v. (+100.1 to +200 mbar)
    • Resolution: 0.01mbar

    Temperature

    • Range: -40˚C to 1200˚C
    • Accuracy: ±0.5°C (0.0 to +100.0°C); ±0.5% of m.v. (remaining meas. range)
    • Resolution: 0.1°C (-40 to +999.9°C); 1°C (remaining meas. range)

    Ambient CO measurement (internal/flue gas probe)

    • Range: 0 to 2000ppm
    • Accuracy: ±10 ppm (0 to 100 ppm); ±10% of m.v. (101 to 2,000 ppm)
    • Resolution: 1ppm

    Ambient CO measurement (external CO probe)

    • Range: 0 to 500ppm
    • Accuracy: ±3 ppm (0 to 29 ppm); ±10% of m.v. (30 to 500 ppm)
    • Resolution: 1ppm
    • Certification: The testo 300 is TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
    • Storage temperature: -20˚C to 50˚C
    • Operating temperature: -5˚C to 45˚C
    • Charging temperature: 0 to 45˚C
    • Humidity application range: 15% to 90% RH
    • Power supply: Rechargeable battery, USB mains unit
    • Rechargeable battery life: 10 hours
    • Protection class: IP40
    • Memory: 1 million measurement values
    • Display: 5” touch display HD 1280 x 720 pixels, IPS (160k)
    • Weight: Approx. 800g
    • Dimensions: 244mm x 59mm x 98mm
    • Warranty: Two years

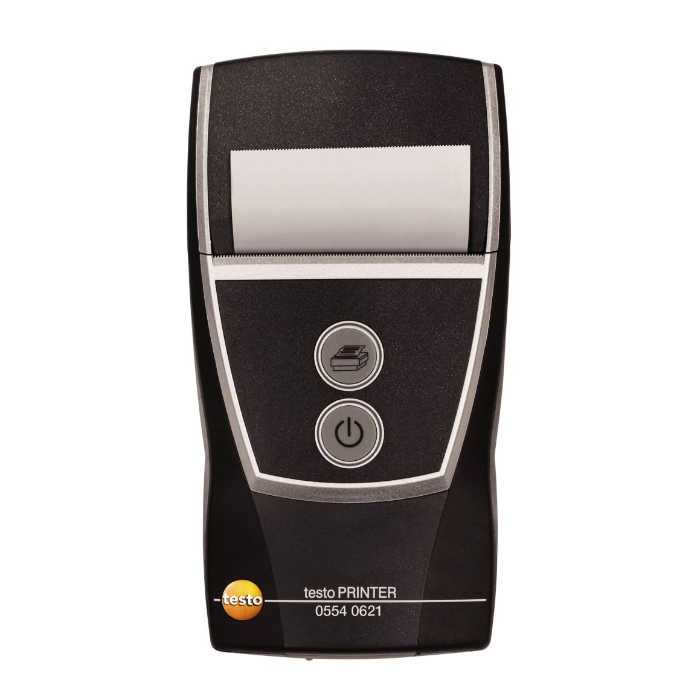

    1. Testo Bluetooth / IRDA Printer for Testo 300 Range
      Testo Bluetooth / IRDA Printer for Testo 300 Range SKU: TESTO05540621
      inc VAT £214.80 ex VAT £179.00
    2. Testo Pressure Set for Testing Gas Lines
      Testo Pressure Set for Testing Gas Lines SKU: TESTO05541213
      inc VAT £106.80 ex VAT £89.00

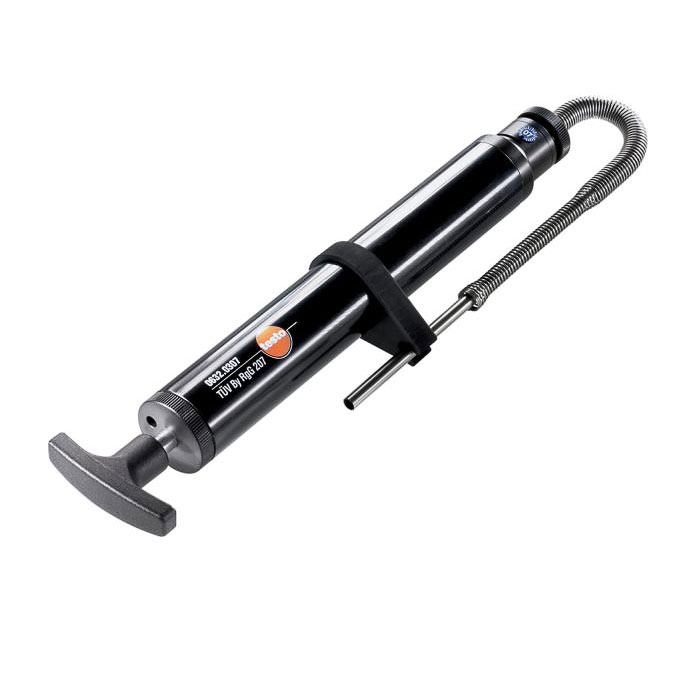

    3. Testo Smoke Pump
      Testo Smoke Pump SKU: TESTOSMOKEPUMP
      inc VAT £102.60 ex VAT £85.50

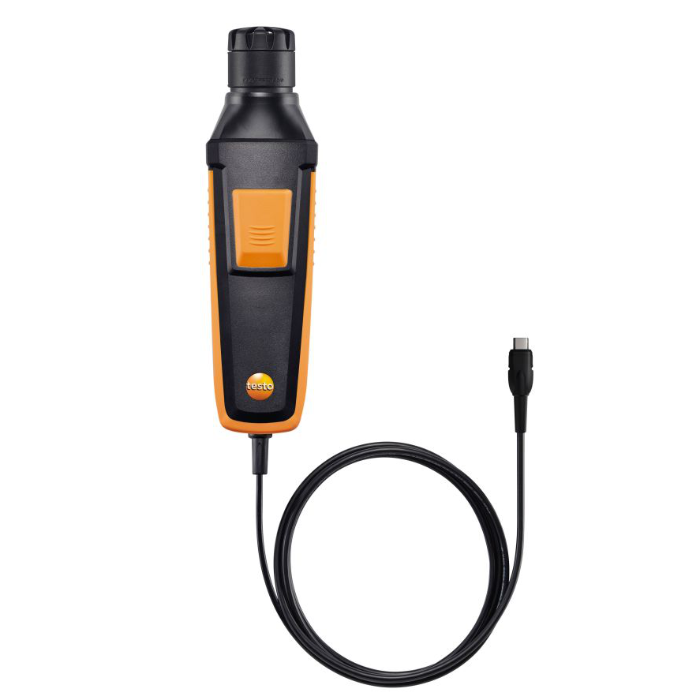

    4. Testo Digital CO probe - Wired
      Testo Digital CO probe - Wired SKU: TESTO06321272
      inc VAT £336.00 ex VAT £280.00
    5. Testo TÜV-Tested Modular Flue Gas Probe - 0600 9760
      Testo TÜV-Tested Modular Flue Gas Probe - 0600 9760 SKU: TESTO06009760
      inc VAT £258.00 ex VAT £215.00
    6. Testo TÜV-Tested Modular Flue Gas Probe - 0600 9761
      Testo TÜV-Tested Modular Flue Gas Probe - 0600 9761 SKU: TESTO06009761
      inc VAT £270.00 ex VAT £225.00
    7. Testo TÜV-Tested Modular Flue Gas Probe - 0600 9762
      Testo TÜV-Tested Modular Flue Gas Probe - 0600 9762 SKU: TESTO06009762
      inc VAT £258.00 ex VAT £215.00

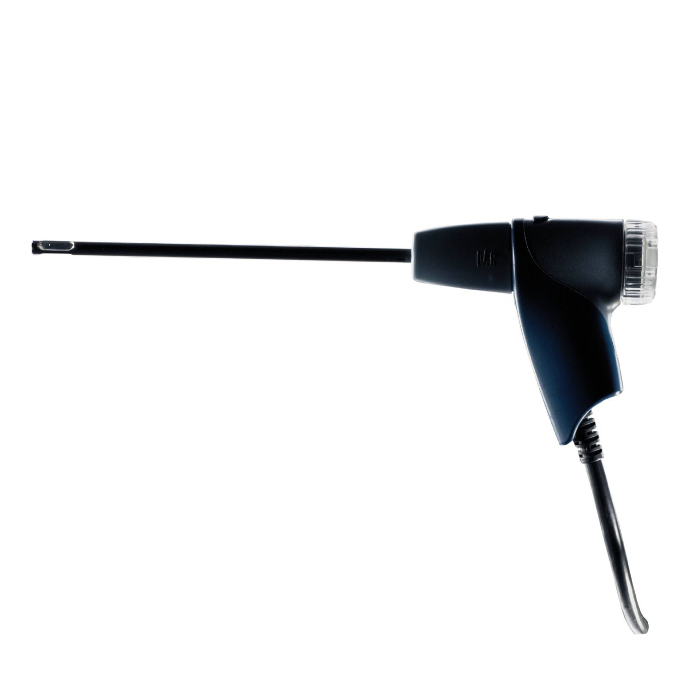

    8. Testo Modular Flue Gas Probe - 0600 9763
      Testo Modular Flue Gas Probe - 0600 9763 SKU: TESTO06009763
      inc VAT £270.00 ex VAT £225.00
    9. Testo Compact Basic Flue Gas Probe - 0600 9740
      Testo Compact Basic Flue Gas Probe - 0600 9740 SKU: TESTO06009740
      inc VAT £174.00 ex VAT £145.00
    10. Testo Compact Basic Flue Gas Probe - 0600 9741
      Testo Compact Basic Flue Gas Probe - 0600 9741 SKU: TESTO06009741
      inc VAT £186.00 ex VAT £155.00

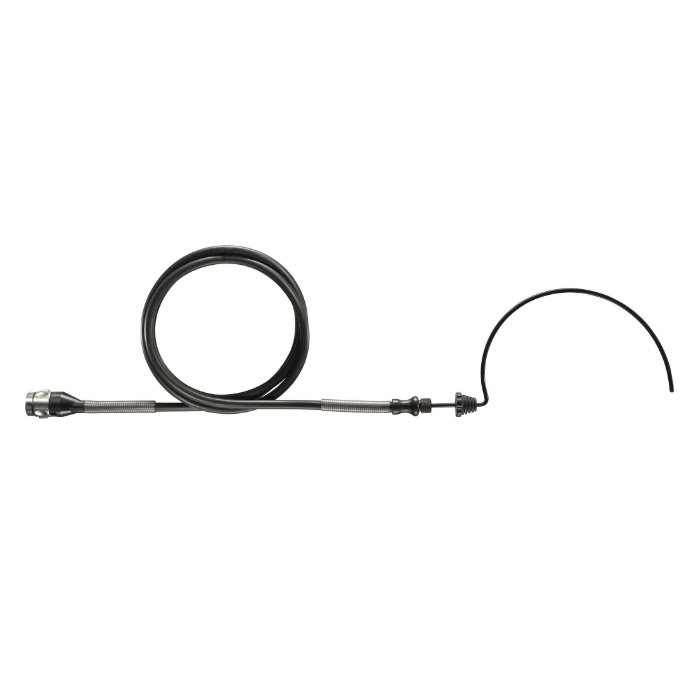

    11. Testo Dual Wall Clearance Probe - 0632 1260
      Testo Dual Wall Clearance Probe - 0632 1260 SKU: TESTO06321260
      inc VAT £154.80 ex VAT £129.00
    12. Testo Solid Fuel Set with Probe Shaft & Adapter - 0600 9765
      Testo Solid Fuel Set with Probe Shaft & Adapter - 0600 9765 SKU: TESTO06009765
      inc VAT £426.00 ex VAT £355.00
    13. Testo Clamp Probe with NTC Temperature Sensor - 0615 5505
      Testo Clamp Probe with NTC Temperature Sensor - 0615 5505 SKU: TESTO06155505
      inc VAT £54.00 ex VAT £45.00

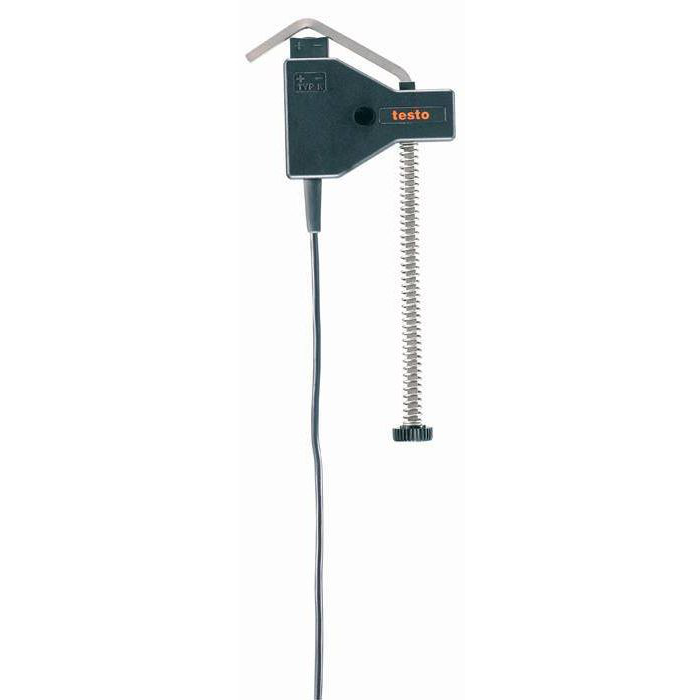

    14. Testo Pipe Wrap Probe with NTC Temperature Sensor - 0615 5605
