Testo 860i Thermal Imaging Camera for IOS & Android

Testo
SKU: TESTO860I
  • Simple yet highly accurate thermal imaging camera which can be used for HVAC/R systems, industry services and faculty management, and food safety
  • The 860i, when used in conjunction with the Testo Smart App, can have results effortlessly documented, analysed, and shared in email format
  • A 256 x 192 pixel infrared resolution allows for accurate thermal imaging, with a rechargeable battery enabling a long operating time
More Info
In Stock - Available Next Day

Testo 860i Thermal Imaging Camera for IOS & Android

The Testo 860i Thermal Imaging Camera is an ideal choice for use in the HVAC trade, with simple operation and highly-accurate results making it highly suitable for a range of tasks. For use with both iOS and Android devices, this thermal imaging camera allows for the simple identification of differential temperature (Delta T), when used in conjunction with Testo's Smart App, which features DeltaHeat for the quick identification of the spread of flow and return temperatures, and DeltaCool for working out differential temperature in refrigeration and air conditioning systems. Using this instrument is made simple with the Smart App, with effortless documentation of findings and the ability for on-site distribution of these results.

The Testo 860i offers flexible handling through wireless use, or one-handed operation directly attached to a smartphone. It is highly suitable for everyday use, with an IP54 rating ensuring protection from dust and water splashes. This allows the user to feel confident when using the instrument in a range of environments, with 1.5m drop testing also protecting the camera. A 256 x 192 pixel infrared resolution enables highly-accurate thermal imaging, which can then be analysed and distributed. The 860i has been designed for ease of use and reliability, with a rechargeable lithium battery enhancing reliability. A long operating time also ensures that tasks can be completed with no worry, with this smart instrument highly suitable for everyday use.

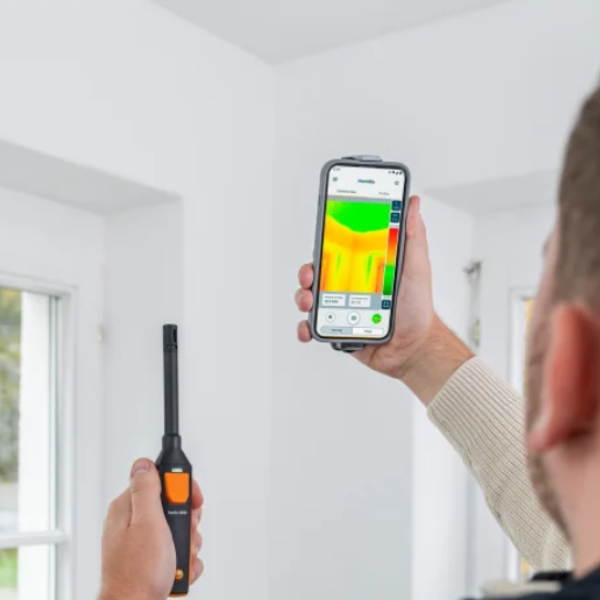

The Test0 860i can also be used alongside a range of Testo Smart Probes, with combinations able to enhance specific testing tasks that the user desires. For example, when used in conjunction with the 605i Thermohygrometer, the user is able to test for issues relating to mould, allowing them to take preventative action before an issue develops.

Additionally, the 860i has three specialised measuring programs, which are used through connection to the free Testo Smart App: DeltaHeat for swiftly determining the spread between flow and return temperatures in radiators, DeltaCool for analyzing temperature differences in refrigeration and air conditioning systems, and a humidity mode to assess mould risk in buildings.

Testo Smart App Compatible

One app for all Bluetooth®-enabled Testo measuring instruments.

✅ Effortlessly Configure Testo Instruments
✅ Real-Time Data Display
✅ Access Data Anywhere & Anytime
✅ Customer & Site Project Management
✅ Professional Test Results Documentation
✅ Instant Report Sharing

Download today and make every measurement count (available on Android & iOS).

The app is FREE to download and includes lifetime extensions and updates.

Testo part number: 0563 0860

Key Features

  • Razor sharp thermal imagery thanks to a 256 x 192 pixels
  • Easy to use with flexible, one-handed usage
  • IP54 rated with fall protection up to 1.5m
  • Perfect choice for quick spot checks in the HVAC trade, maintenance, buildings, and many other applications
  • The 860i enables for the quick and easy determination of differential temperature (Delta T)
  • The Smart App includes DeltaHeat for the determination of the spread of flow and return temperatures on radiators
  • It also includes DeltaCool for the quick establishment of differential temperature in refrigeration and air conditioning systems
  • A humidity mode function assesses the risk of mould indoors
  • The Smart App displays the thermal image and differential temperature, and allows the user to document it
  • Equipped with a rechargeable lithium battery with a long operating time
  • The 860i can be used one-handed, either when connected directly to a smartphone or tablet or separately
  • The Smart App is a universal app for all applications, such as HVAC/R systems, industry services and faculty management, and food safety

What's In The Box?

  • Testo 860i Thermal Imaging Camera
  • Pouch
  • USB-C Cable
Specification

Infrared Image Output

  • Infrared Resolution - 256 x 192 pixels
  • Thermal Sensitivity (NETD) - 50mK
  • Field of View (VFOV/HFOV)/ Minimum focusing distance - 48° x 36° / 0.3m
  • Geometric Resolution (IFOV) - 3.3mrad
  • Image Refresh Rate - 9Hz
  • Focus - Fixed
  • Spectral Range - 8 to 14 µm

Visual Image Output

  • Image Size / Minimum focusing distance - 640 x 480 pixels / 0.4m

Measurement

  • Measuring Range - -20 to +350 °C
  • Accuracy - ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40°C and scene temperature of 0... +150 °C or +100... +350 °C)
  • Emissivity/reflected temperature adjustment - 0.01 to 1 / manual (via Testo Smart App)

Measurement Functions (in the Testo Smart App)

  • Analysis Functions - Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
  • Application-Specific Measurement Functions - DeltaHeat, DeltaCool, humidity mode
  • Humidity Mode (Manual) - Yes
  • Humidity Measurement with Humidity Measuring Instrument - Automatic transfer of the optional Testo 605i or Testo 625 Thermohygrometer readings via Bluetooth to the Testo Smart App
  • Electrical Mode (Manual) - Input of current, voltage or power
  • Electrical Measurement with Clamp Meter - Automatic reading transfer of the optional Testo 770-3 Clamp Meter via Bluetooth to the Testo Smart App

Image Presentation (in the Testo Smart App)

  • Display Options - IR image, real image (overlay in IRSoft possible)
  • Fullscreen Mode - Yes
  • Colour Palettes - Iron, Rainbow, Rainbow HC, Cold-Hot, Blue-Red, Grey, Inverted Grey, Sepia, Testo, Iron HT, Humidity Palette
  • Digital Zoom - Yes

General App Functions

  • File Format - Share saved images as .bmt (for editing in IRSoft), .jpg. and .csv files with the Testo Smart App
  • Image Storage - On a mobile device
  • Remote-Controlled Operation - Up to 10m from the mobile device (via WLAN)

Power Supply

  • Battery Type - Integrated Li-ion rechargeable battery
  • Battery Life - 2 hours
  • Charging Interface - USB-C
  • Charging Time - Approximately 90 min, 15-min charge of an empty battery equals 30 min of operating time

Ambient Conditions

  • Operating Temperature Range - -10 to +50°C
  • Storage Temperature Range - -20 to +70°C
  • Air Humidity - 5 to 95% RH, non-condensing
  • Housing Protection Class (IEC 60529) - IP54
  • Impact Resistance Test - 1.5m
  • Vibration - IEC 60068-2-6

Physical Features

  • Weight - 195g
  • Dimensions - 165 x 45 x 38mm
  • Mobile Device Attachment - Clip span: minimum 120mm, maximum 170mm and device depth up to maximum 12mm
  • Tripod Socket - ¼" UNC thread

Compatibility

  • Testo Smart App - Requires iOS 17 or later/Android 14 or later, requires mobile terminal device with Bluetooth 4.0
  • PC Software Testo IRSoft - Windows 11, Windows 10

Data Interface

  • WLAN* - Communication with the Testo Smart App; WLAN*: IEEE 802.11 b/g/n
  • Bluetooth* - Peer-to-peer advertising for fast connection set-up

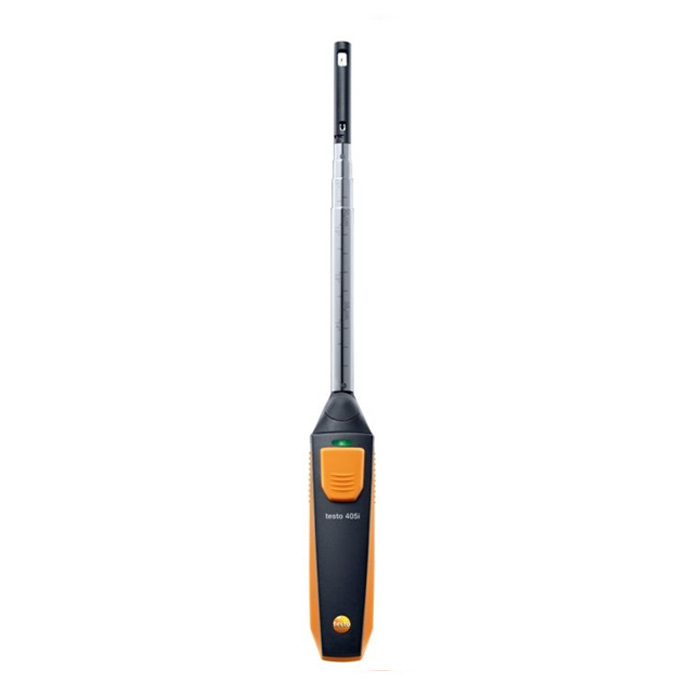

  1. Testo 405i Bluetooth Thermal Anemometer
    Testo 405i Bluetooth Thermal Anemometer SKU: TESTO405I
    £103.50 (ex VAT)
    £124.20 (inc VAT)

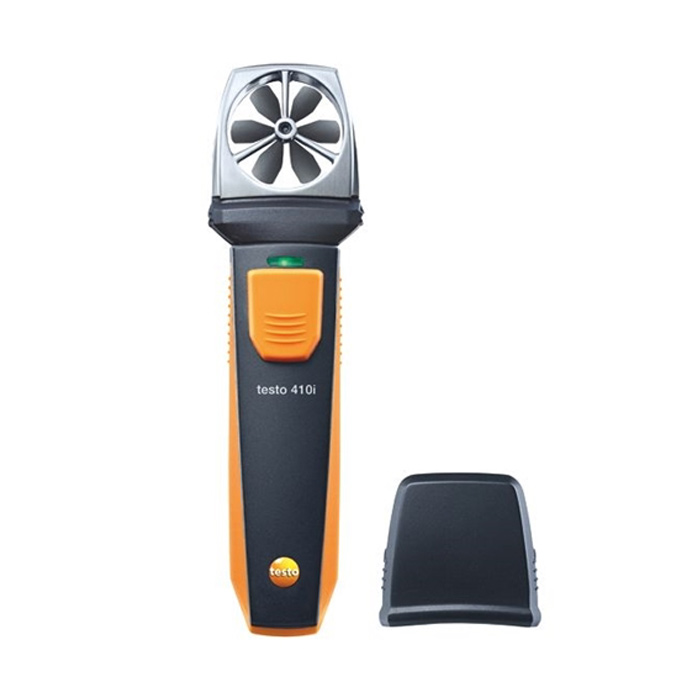

  2. Testo 410i Bluetooth Vane Anemometer
    Testo 410i Bluetooth Vane Anemometer SKU: TESTO410I
    £89.00 (ex VAT)
    £106.80 (inc VAT)

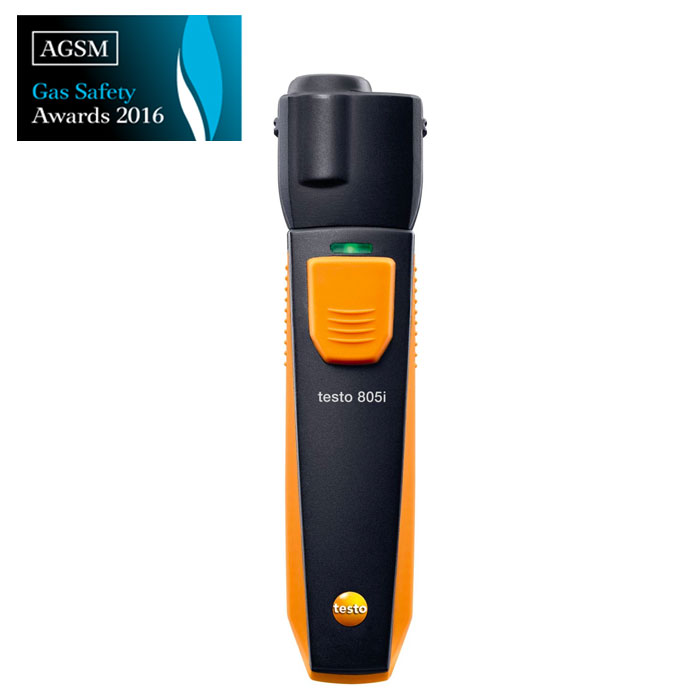

  3. Testo 805i award logo
    Testo 805i Bluetooth Infrared Surface Temperature Thermometer SKU: TESTO805I
    £87.00 (ex VAT)
    £104.40 (inc VAT)

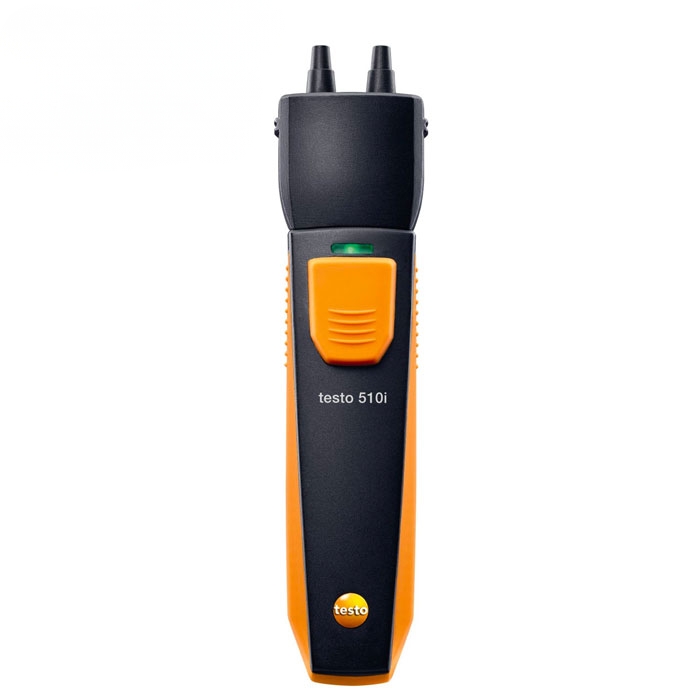

  4. Testo 510i award logo
    Testo 510i Bluetooth Differential Pressure Meter SKU: TESTO510I
    £103.50 (ex VAT)
    £124.20 (inc VAT)

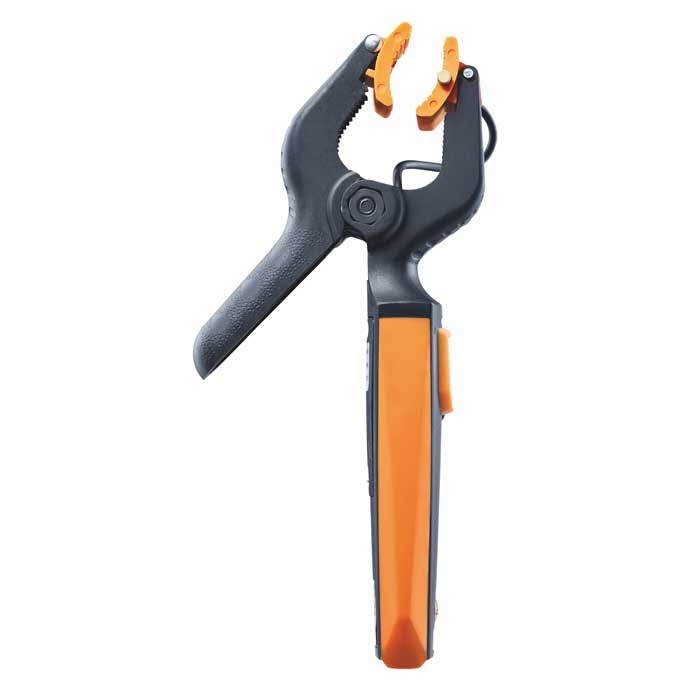

  5. Testo 115i Advanced Bluetooth Clamp Thermometer
    Testo 115i Advanced Bluetooth Clamp Thermometer SKU: TESTO115IADV
    £65.00 (ex VAT)
    £78.00 (inc VAT)

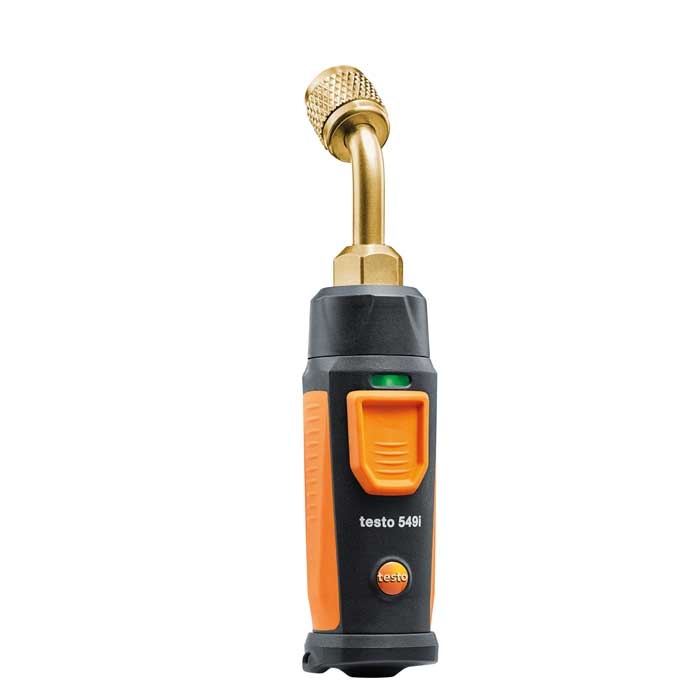

  6. Testo 549i Advanced Bluetooth High Pressure Gauge
    Testo 549i Advanced Bluetooth High Pressure Gauge SKU: TESTO549I2
    £70.50 (ex VAT)
    £84.60 (inc VAT)

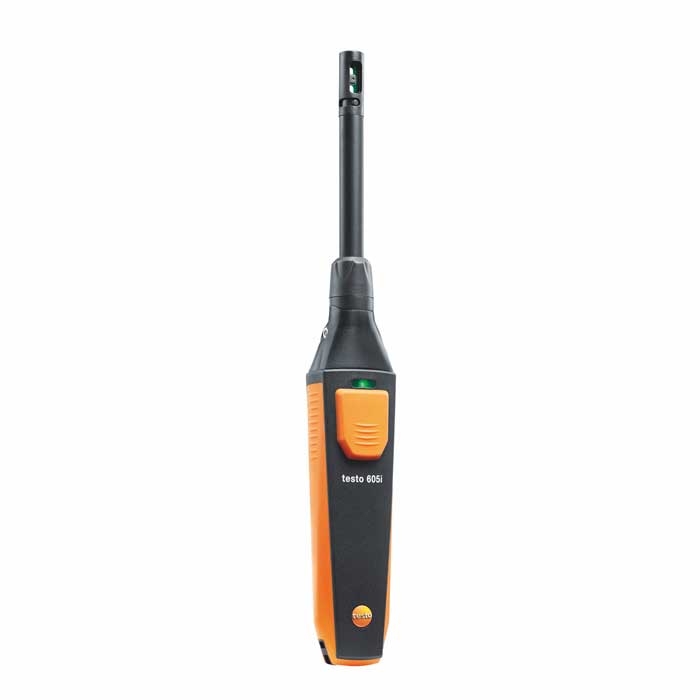

  7. Testo 605i Advanced Bluetooth Thermohygrometer
