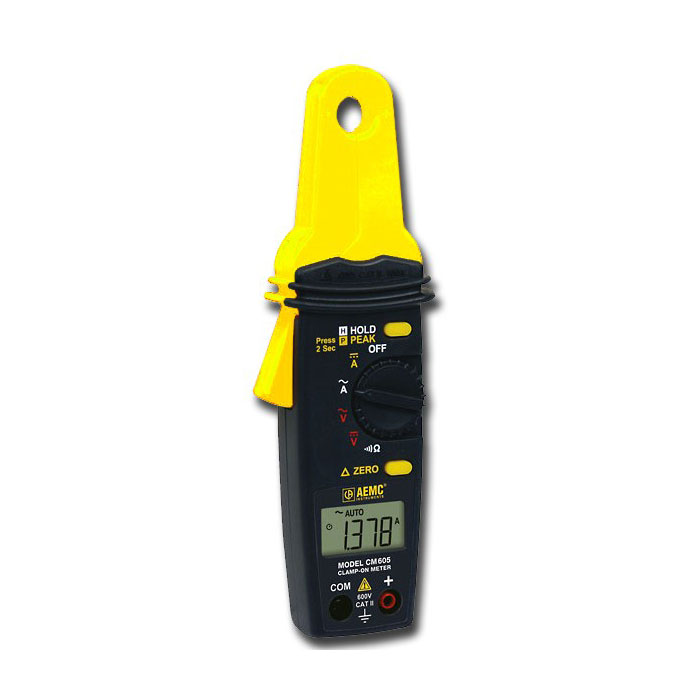

AEMC CM605 Low Current 1mA to 100A DC/AC Clamp Meter

The AEMC CM605 low current DC/AC Clamp meter is a versatile device that is capable of measuring from 1mA to 100A and AC/DC voltage up to 600V

rrp £153.00

now £129.00 (Ex. VAT) £154.80 (Inc. VAT)

rrp £153.00

Please select a free gift below.

"Ideal for Solar panel installers and commissioning PV systems"

  • Description

    AEMC CM605 Low Current AC/DC Clamp Meter (100A)

    The AEMC CM605 Multifunction Clamp-on Meter CM605 is an ideal choice for solar engineers and PV Photovoltaic cell installers and general industrial markets. It is also the perfect instrument for measuring 4 to 20mA process signals, as well as, the higher currents (up to 100A) associated with general industrial monitoring and troubleshooting. The AEMC CM605 low current DC Clamp meter is a versatile device that is capable of measuring both AC/DC voltage, up to 600V, and AC/DC current. It can also measure resistance up to 10kΩ and includes a continuity buzzer to assist in circuit verification. For operator convenience, the Chauvin Arnoux CM605 can also hold the last reading in the display and capture the peak value at the time of the measurement. The AEMC CM605 is ideal for Solar Panel Installation engineers.

    The AEMC CM605 Key Features:

    • 10,000-count LCD Display - Excellent Resolution
    • 100A AC/DC Ammeter with low 10A Range (1mA Resolution)
    • Tapered Jaws for crowded wiring or areas ( 0.45" - 12mm Jaw Opening)
    • 600V AC/DC Voltmeter
    • Analog Output in A AC/DC
    • Auto-Ranging & ADC Zero Push-button
    • Data HOLD & PEAK Functions
    • Relative Function to Compare Two Measurements
    • Ohm Range & Continuity Test with Beeper, 600V Protection
    • Batteries: AUTO-OFF and Low Battery Indicator
    • IEC/EN 61010 Safety Rated & CE Mark
  • Specification

    • DC voltage range 600 V (positive only)
    • DC voltage accuracy 1.0% ±2 counts
    • DC volt resolution 100 mV
    • AC voltage range 600 Vrms
    • AC voltage accuracy 1.5% ±5 counts
    • AC current frequency range 2 ranges: 50 to 500 Hz
    • AC current accuracy 10 A: 2.0% ±10 counts 80 A; 2.0% ±10 counts; >80 A: 3.5% ±10 counts
    • DC current accuracy 10 A:2.5% ±10 counts 80 A; 2.5% ±10 counts; >80 A: 4.5% ±10 counts
    • AC current resolution 1 mA; 10 mA; 10 mA
    • AC current range 2 ranges: 10 A, 100 A
    • DC current resolution 1 mA; 10 mA; 10 mA
    • Resistance range 10 kΩ (9999 Ω)
    • AC voltage input impedance 10 MΩ, 50 pF
    • AC volt resolution 100 mV
    • DC current range 2 ranges: 10 A, 100 A (positive only)
    • DC voltage input impedance 10 MΩ
    • Resistance Resolution 1 Ω
    • Resistance test voltage <3.0 V DC
    • Continuity range: Buzzer <100 Ω ±25Ω
    • Frequency range 40 to 500 Hz (AC voltage)
    • Resistance Accuracy 1.0% ±3 counts
    • Continuity resolution 1Ω
    • Continuity test voltage <3.0 VDC
    • Dimensions 7.95 x 2.76 x 1.33" (202 x 70 x 34 mm)
    • Max clamp size 0.60" (15 mm) / 0.45" (12 mm)
  • Product Questions

    Please Sign in or Create an account to post a question.

    There are no entries.

  • Reviews

    Review by Paul Webb (Posted on 23/06/2010)
    High resolution and accurate measurement on DC systems, cheers guys exactly what I was looking for!
