Castle GA141E dBAir Class 1 Environmental Sound Level Meter

Be the first to review this product

  • Two measurement ranges from 20dB to 115dB and from 45dB to 140dB
  • Measure environmental sound levels over different percentiles and intervals
  • 16GB internal memory saves readings which can be wirelessly downloaded
(Ex. VAT) £1,645.00 (Inc. VAT) £1,974.00

Please select a free gift below.

  • Description

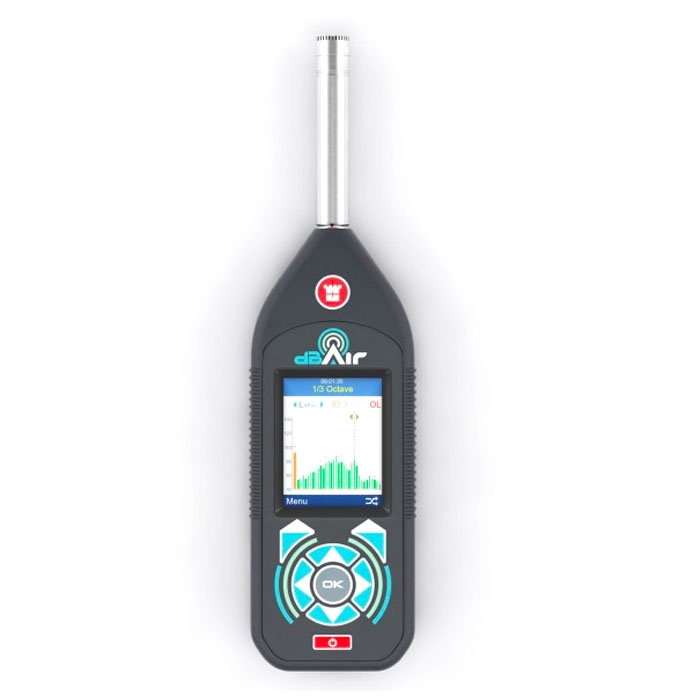

    Castle GA141E dBAir Class 1 Environmental Sound Level Meter

    The Castle GA141E dBAir Environmental Sound Level Meter is specifically designed for environmental monitoring of noise, for example performing BS 4142 assessments, boundary noise monitoring and compliance monitoring. It can measure sound from 20dB to 140dB at frequencies between 10Hz and 20kHz with Class 1 level accuracy and 0.1dB resolution. There are two measurement ranges (20dB to 115dB, 45dB to 149dB) with a linear range of 95dB and the environmental monitoring capabilities are further enhanced by a very low noise threshold of 15dB.

    It is possible to select A, C, or Z frequency weighting on the Castle CA141E and the user can also choose fast or slow response times (10ms to 24h). The measurement options on this sound meter are tailored for environmental monitoring as it can perform percentile measurement alongside timed noise assessment of various times of day. Lspl, Leq, Lmax, Lmin, and peak are just some of other options available on the meter. Two different variables can be assessed at once thanks to the dBAir’s simultaneous measurement function.

    Readings taken with the Castle GA141E will be automatically saved to the huge 16GB internal memory. From there, they can be downloaded to a PC via the micro-USB connection and supplied cable or wirelessly transferred to the Castle Cloud online storage facility via a Wi-Fi connection. Compiled in the form of a simple spreadsheet, results are very easy to use whether accessed via the meter or through a PC. A large, colour, graphical display clearly shows sound readings and graphical interpretations as well as allowing the user to navigate the intuitive menus with simple push buttons.

    The Castle CA141E dBAir is an extremely compact and lightweight sound meter despite its advanced functionality. The 16-hour battery life will last the user through a whole day on site and it complies with various regulations such as IEC 61672-1:2013, IEC1260-1:2014 and IEC61252:1993 amendment 1. To add 1/1 and 1/3 octave band analysis to your purchase, please tick the checkbox above.

    Castle part number: CA141E / GA141EO

    Key Features

    • Linear range: 95dB
    • Measurement ranges: 20dB to 115dB; 45dB to 140dB
    • Class 1 accuracy
    • Resolution: 0.1dB
    • Percentile and timed interval measurement
    • Colour graphical display
    • User-friendly menus and push buttons
    • A, C, and Z weighting
    • Fast and slow response times
    • 16GB internal memory
    • Upload to online Cloud via Wi-Fi
    • USB data download available
    • Low noise floor
  • Specification

    • Applicable Standards: IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted)
    • IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
    • Microphone: Class 1 - ½” Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
    • Noise Floor (Typical): ‘A’ Weighting < 16.0dB; ’C’ Weighting < 15.0dB; ‘Z’ Weighting < 25.0dB
    • Measurement Ranges: 25 - 115dB (LOW); 50 – 140dB (HIGH)
    • Frequency Weightings: A, C or Z
    • Frequency Range: 1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
    • Time Weighting: Slow, Fast, Impulse
    • Octave Band Analysis: Where fitted 1/1 only
    • Display: 2.4” Full Colour TFT 240x320 pixels
    • Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings.
    • Measurement parameters: LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Levening, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L5, L10, L20, L25, L50, L75,
    • L90, L95, L90) plus LAF* for Noise act assessment.
    • Languages: English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
    • Time History: Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
    • Memory: 16GB
    • Input / Output Connection: Micro USB Type B
    • Batteries: 4 x AA (1.5V)
    • Battery Life: Up to 8 Hours continuous operation (screen settings dependent)
    • Dimensions Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D)
    • Dimensions Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
    • Weight: 305g
  • Supplied Accessories

    • Castle dBAir GA141E Class 1 Sound Level Meter
    • KG205 Wind muffler
    • Micro USB cable
