Castle Noise Activated Warning Sign System

Castle Group
SKU: CASTNK022
  • Warn workers of excess noise levels
  • Warning sign illuminates over adjustable trigger level
  • Clear EC-approved sign and flashing beacon
More Info

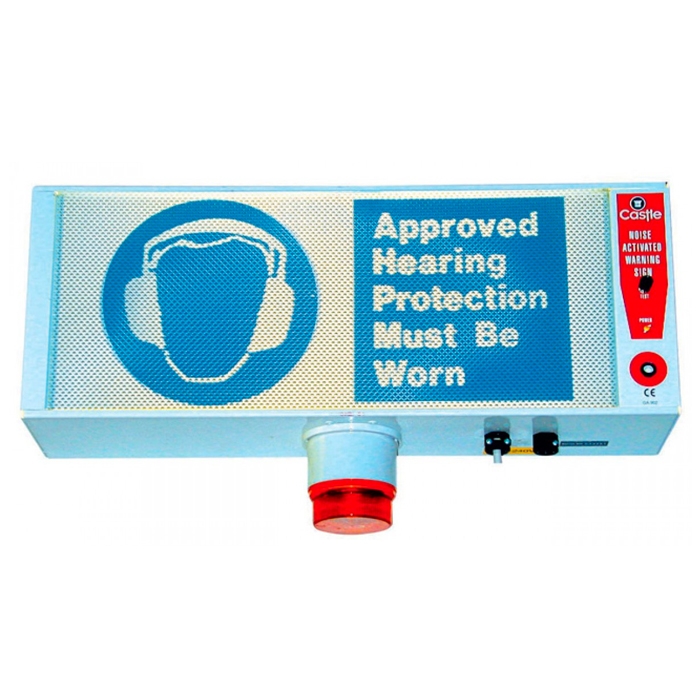

Castle Noise Activated Warning Sign System

The Castle Noise Activated Warning Sign System is designed for use in environments where workers are subjected to intermittent, excessive noise. In such conditions, clear warning of excess noise allows all those present to put on appropriate hearing protection, thus preventing hearing loss. The Castle Warning Sign System is an excellent solution as it combines the Castle GA902 Noise Activated Sign with a Castle GB004 flashing beacon. This clearly signals to everyone present that hearing protection is needed.

The Castle GA902 detects sound through its inbuilt Castle electret microscope and, once the trigger level is exceeded, its twin fluorescent lights will illuminate the 450mm x 190mm sign’s EC-approved message stating ‘Approved Hearing Protection Must Be Worn’. In addition, the beacon will flash at a steady rate in order to make the message even clearer. The trigger level can be set between 75dB and 112.5dB at 2.5dB intervals and the trigger time can also be adjusted between 5 and 30 seconds. Frequency weighting is set as ‘A’ in accordance with IEC651 Type 2 and the sign is capable of operating off a 240V or 110V supply.

Castle part number: NK022

Key Features

  • Warn workers of excessive noise
  • EC-approved sign wording
  • Bright illumination of sign and beacon
  • Adjustable trigger level and time
  • Runs off 240V or 110V supply

What's In The Box?

  • Castle GA902 Noise Activated Sign
  • Catle GB004 Mini Beacon
Specification

MEASURING RANGE

  • 75 dB to 112.5dB steps switch selectable 2.5dB variable calibration control (factory set)

TRIP TIME

  • User adjustable 5 to 30 seconds

CONTROLS

  • Push to test button
  • Mains power ‘on’ indicator

DETECTOR

  • Characteristic: Averaging

FREQUENCY WEIGHTING

  • ‘A’ in accordance with IEC651 Type 2

TIME RESPONSE

  • Slow response (1000 mS)

MICROPHONE

  • Built in Castle electret

OUTPUTS

  • Switched AC power feed for external beacon. Change-over relay contact sets.

POWER

  • 200v to 240v AC, 50Hz/60Hz
  • 110v to 120v AC, 50Hz/60Hz
  • (240v version supplied as standard unless otherwise stated at time of order)

ILLUMINATION

  • Two 8w, 12” fluorescent tubes

DIMENSIONS

  • Overall: 520 x 200 x 120
  • Viewable Screen area: 450 x 190
