Chauvin Arnoux CA5001 Analogue Multimeter

Be the first to review this product

  • Measures AC/DC voltage to 600V and AC/DC current to 5A
  • Feedback via responsive analogue needle display
  • Multistand™ articulated stand for easy positioning

rrp £180.00

now £169.00 (Ex. VAT) £202.80 (Inc. VAT)

rrp £180.00

Please select a free gift below.

"A good value multimeter with a speedy analogue display"

  • Description

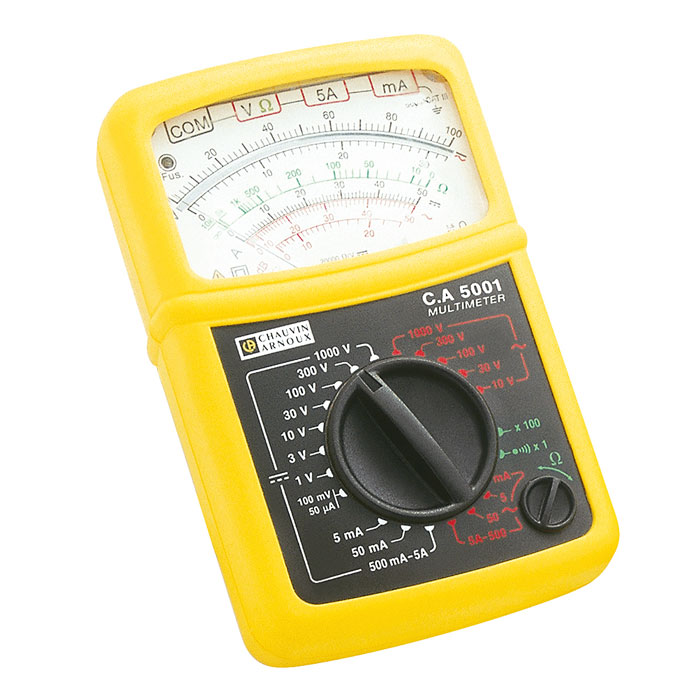

    Chauvin Arnoux CA5001 Analogue Multimeter

    The Chauvin Arnoux CA5001 is a good value analogue multimeter that measures AC/DC voltage up to 600V and resistance up to 1MΩ, as well as AC/DC current to 5A within an accuracy of ±1.5-2.5%. There is a manually-selectable choice of ranges for each parameter - including a µA range - and continuity testing can also be carried out with the instrument. Furthermore, the HBC fuse test allows the user to check continuity in fuses.

    Readings are displayed on the Chauvin Arnoux CA5001’s clear needle analogue display which offers immediate, real time values to the user. An audible buzzer sounds during continuity testing and there is also an Fus light for use during fuse testing. The appropriate function is selected using two clearly labelled dials.

    An articulated Multistand™ allows the Chauvin Arnoux CA5001 to sit vertically on a ledge or on the ground so it can be placed near to a connection. This improves safety and allows the user to check readings without taking his/her eyes off the test probes. Te C.A 5001 analogue multimeter is safety rated as 600V for Cat III so the user can have confidence during operation and Chauvin Arnoux also provide a three-year warranty.

    Chauvin Arnoux part number: P01196521E C.A 5001

    Key Features

    • AC/DC voltage range: 0 to 600V
    • AC/DC current range: 0 to 5A
    • Choice of ranges including µA
    • Continuity testing
    • Resistance measurement:
    • Accuracy of 1.5 to 2.5%
    • Cat III 600V
    • HBC fuse test
    • Analogue display with responsive needle
    • 1.5V battery
    • 10,000 measurements with one battery
    • Articulated Multistand™
  • Specification

    • DC voltage (8 ranges): 100 mV /../ 1,000 V (6)
    • AC voltage (5 ranges): 10 V /../ 1,000 V (6)
    • Internal resistance: 20 kΩ/V
    • Working frequency: 10 Hz ...100 kHz depending on range
    • DC current (5 ranges): 50 µA /../ 5 A
    • AC current (4 ranges): 5 mA /../ 5 A
    • Resistance (2 ranges): 10 kΩ and 1 MΩ
    • Audible continuity test: R < 50 Ω
    • Scale in dB for V AC: 0 ... +22 dB
    • Typical accuracy: 1.5 % on V • 2.5 % on V~ and A • 10 % on Ω
    • Power supply: 1.5 V battery
    • Battery life: 10,000 measurements of 15 s
    • Electrical safety: IEC / EN 61010-1 Edition 2 • 600 V Cat III-2
    • Protection: HRC fuses: 0.5 A and 5 A HRC fuses: 1.6 A and 16 A HRC fuses: 1 A and 10 A
    • Degree of watertightness: IP 40
    • Environmental conditions: -10 °C ... +55 °C and RH < 90 %
    • Dimensions / Weight: 160 x 105 x 56 mm / 500 g
  • Supplied Accessories

    • Chauvin Arnoux CA5001 Analogue Multimeter
    • Test leads
    • Test probes
    • 1.5V battery
    • Instruction manual
