Chauvin Arnoux CA5271 True RMS Digital Multimeter

Be the first to review this product

  • True RMS values given for current, voltage and resistance
  • Continuity and diode testing with audible alarm
  • Articulated Multifix™ mount for easy positioning

rrp £174.00

now £155.00 (Ex. VAT) £186.00 (Inc. VAT)

rrp £174.00

Please select a free gift below.

"A simple, accurate multimeter"

  • Description

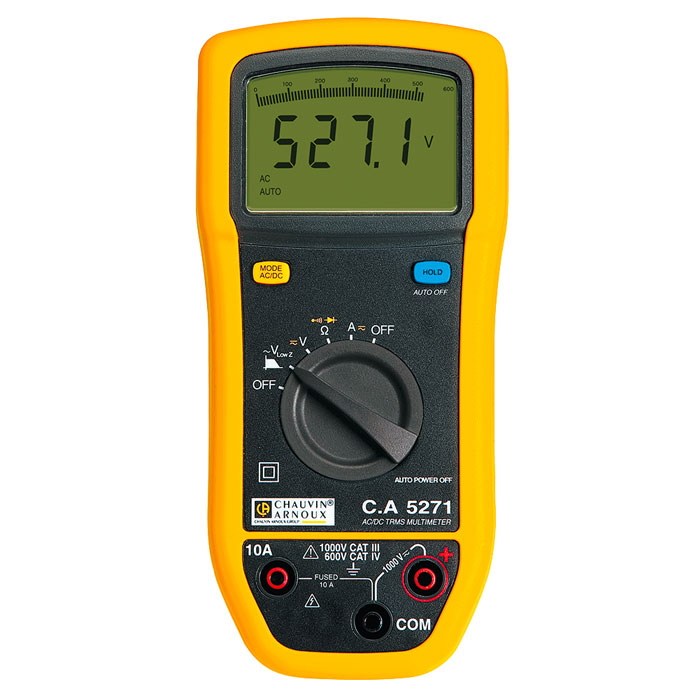

    Chauvin Arnoux CA5271 True RMS Digital Multimeter

    The Chauvin Arnoux CA5271 True RMS Digital Multimeter is a simple multimeter that offers accurate, speedy testing to its user. It can measure AC/DC voltage, AC/DC current, and resistance with a variety of ranges and resolutions which help to ensure precision. Ranging is automatic, thus saving time, whilst automatic AC/DC detection further facilitates speedy inspections. Continuity and diode testing with an audible alarm is also possible with this instrument.

    True RMS measurement ensures accuracy on non-linear forms whilst LowZ voltage measurement prevents problems related to ghost voltages. A high measurement rate of 5Hz These varied and advanced measurement features make the Chauvin Arnoux CA5271 suitable for applications in several fields including tertiary sector, industry, and electrical maintenance.

    Results are displayed on the screen via a digital figure and a bar graph whilst data hold allows the user to freeze a value on screen if necessary. The protective casing is shock proof and gives the Chauvin Arnoux CA5271 an IP54 ingress rating whilst it is rated Cat III 1000V and Cat IV 600V.

    Chauvin Arnoux part number: P01196771

    Key Features

    • AC/DC voltage range: 1000V
    • AC/DC current range: 10A
    • True RMS measurement
    • LowZ voltage measurement
    • Resistance range: 60MΩ
    • Continuity and diode test
    • Large digital screen with bar graph
    • Display hold
    • Multifix™ articulated mount
    • IP54 rated
    • Cat III 1000V, Cat IV 600V
  • Specification

    • Display: 6,000 counts
    • Bargraph: 61+2 elements
    • Acquisition: TRMS AC /DC
    • Measurement rate: 5 measurements / second
    • Autorange / Deactivatable: Yes / No
    • Automatic AC/DC detection: Yes
    • V DC ranges: 600 mV / 6 V / 60 V / 600 V / 1,000 V
    • V DC typical accuracy: 0.2 % + 2 cts
    • V DC resolution: 0.1 mV to 1 V
    • V AC ranges: 600 mV / 6 V / 60 V / 600 V / 1,000 V
    • V AC resolution: 0.1 mV to 1 V
    • V AC bandwidth: 40 Hz to 3 kHz
    • VLowZ AC (low impedance + low-pass filter) ranges: 600 mV / 6 V / 60 V / 600 V / 1000 V
    • VLowZ AC (low impedance + low-pass filter) resolution: 0.1 mV to 1 V
    • A DC ranges: 6 A / 10 A (20 A / 30 s)
    • A DC resolution: 0.001A to 0.01 A
    • Ionization current: 0.2 µA to 20.0 µA
    • A AC ranges: 6 A / 10 A
    • A AC resolution: 0.001 A to 0.01 A 1 µA to 0.01 A
    • Ω ranges: 600 Ω / 6 000 Ω / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
    • Ω resolution: 0.1 Ω to 0.1 MΩ
    • Audible continuity: Yes
    • Test diode: Yes
    • Hold: Yes
    • Automatic power-off: Yes (deactivatable)
    • Safety: CAT IV 600 V and CAT III 1000 V
    • Ingress protection rating: IP54
    • Power supply: 1 x 9 V
    • Dimensions / Weight: 90 x 190 x 45 / 400 g
  • Supplied Accessories

    • Chauvin Arnoux CA5271 True RMS Digital Multimeter
    • Instructions for Chauvin Arnoux CA5271 True RMS Digital Multimeter
    • Test leads
    • Test probes
    • 9V battery
