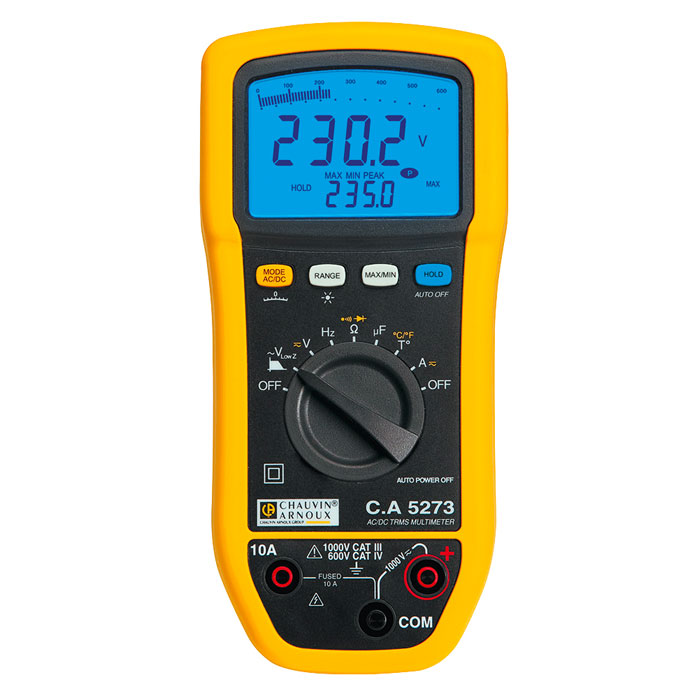

Chauvin Arnoux CA5273 True RMS Digital Multimeter

Be the first to review this product

  • Measures voltage, current, resistance, frequency, capacitance & temperature
  • LowZ AC voltage measurement and True RMS reading acquisition
  • Shock- and splash-proof casing with IP54 weatherproof rating

rrp £205.00

now £175.00 (Ex. VAT) £210.00 (Inc. VAT)

rrp £205.00

Please select a free gift below.

"An extremely versatile multimeter"

  • Description

    Chauvin Arnoux CA5273 True RMS Digital Multimeter

    The Chauvin Arnoux CA5273 True RMS Digital Multimeter is an accurate and sophisticated multimeter that measures parameters including voltage (1000V), current (10A), frequency (50kHz), resistance (60MΩ), capacitance (60mF) and temperature (-59.6˚C to 1200˚C). Several ranges and resolutions can be manually or automatically selected for each parameter to ensure precision and readings are accurate to ±0.2%. Advanced measurement features include LowZ voltage measurement, helping to avoid ghost voltage problems, whilst True RMS aids accuracy when measuring non-linear wave forms. Furthermore, both diode and continuity testing can be carried out with this instrument.

    A high-frequency measurement rate helps track fluctuations in system outputs and these are dynamically rendered on the Chauvin Arnoux CA5273’s backlit digital display thanks to a bar graph with central zero function. The large screen shows an exact readout and has two levels of backlighting for work in different lighting conditions. Min/max recording gives a clear picture of performance and this is enhanced by the extended hold function which keeps both the minimum and maximum values available to record or analyse.

    The Chauvin Arnoux CA5273 is extremely practical as well as versatile. Operation is carried out via a simple dial with two OFF positions whilst the safety ratings of CAT III 1000V and Cat IV 600V certify its suitability for a range of tasks. The shock-proof casing helps withstand the bumps and scrapes of field use and also makes the device splash proof with an IP rating of IP54.

    With the capacity to measure several different parameters, the Chauvin Arnoux CA5273 is an excellent choice for workers in the electrical, industrial or tertiary sectors. It comes supplied with test leads, test probes and a thermocouple as well as a three-year manufacturer’s warranty.

    Chauvin Arnoux part number: P01196773

    Key Features

    • AC/DC voltage range: 1000V
    • AC/DC current range: 10A
    • Frequency range: 50kHz
    • Resistance range: 60MΩ
    • Temperature range: -59.6˚C to 1200˚C
    • Capacitance range: 60mF
    • LowZ voltage measurement
    • True RMS functionality
    • 5 measurements per second
    • Basic accuracy: 0.2%
    • Backlit display with bar graph
    • Min/max recording
    • Extended hold function
    • Multifix™ mount
    • IP54 ingress rated
    • Cat III 1000V, Cat IV 600V
    • 3-year warranty
  • Specification

    • Display: 2 x 6,000 counts with backlighting
    • Bargraph: 61+2 elements, dual mode (full scale/ central zero)
    • Acquisition: TRMS AC / DC
    • Measurement rate: 5 measurements / second
    • Autorange / Deactivatable: Yes / Yes
    • Automatic AC/DC detection: Yes
    • V DC ranges: 600 mV / 6 V / 60 V / 600 V / 1,000 V 60 mV / 600 mV / 6 V / 60 V / 600 V / 1,000 V
    • V DC typical accuracy: 0.2 % + 2 cts
    • V DC resolution: 0.1 mV to 1 V 0.01 mV to 1 V
    • V AC ranges: 600 mV / 6 V / 60 V / 600 V / 1,000 V
    • V AC resolution: 0.1 mV to 1 V
    • V AC bandwidth: 40 Hz to 3 kHz
    • VLowZ AC (low impedance + low-pass filter) ranges: 600 mV / 6 V / 60 V / 600 V / 1000 V
    • VLowZ AC (low impedance + low-pass filter) resolution: 0.1 mV to 1 V
    • A DC ranges: 6 A / 10 A (20 A / 30 s)
    • A DC resolution: 0.001A to 0.01 A
    • A AC ranges: 6 A / 10 A
    • A AC resolution: 0.001 A to 0.01 A 1 µA to 0.01 A
    • Ω ranges: 600 Ω / 6 000 Ω / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
    • Ω resolution: 0.1 Ω to 0.1 MΩ
    • Audible continuity: Yes
    • Test diode: Yes
    • Hz ranges: 600 Hz / 6 kHz / 50 kHz
    • Hz resolution: 0.1 Hz to 10 Hz
    • Capacitance ranges: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF
    • Capacitance resolution: 0.001 nF (1pF) to 10 µF
    • T˚ measurement range: -59.6 °C to +1,200 °C (-4 °F to 2,192 °F)
    • T˚ resolution 0.1˚ to 1˚
    • Display hold: Yes
    • Min / MAX (100 ms): Yes
    • Automatic power-off: Yes (deactivatable)
    • Safety: CAT IV 600 V and CAT III 1000 V
    • Ingress protection rating: IP54
    • Power supply: 1 x 9 V
    • Dimensions / Weight: 90 x 190 x 45 / 400 g
  • Supplied Accessories

    • Chauvin Arnoux CA5273 True RMS Digital Multimeter
    • Instructions for Chauvin Arnoux CA5273 True RMS Digital Multimeter
    • Type K thermocouple
    • Test leads
    • Test probes
    • 9V battery
