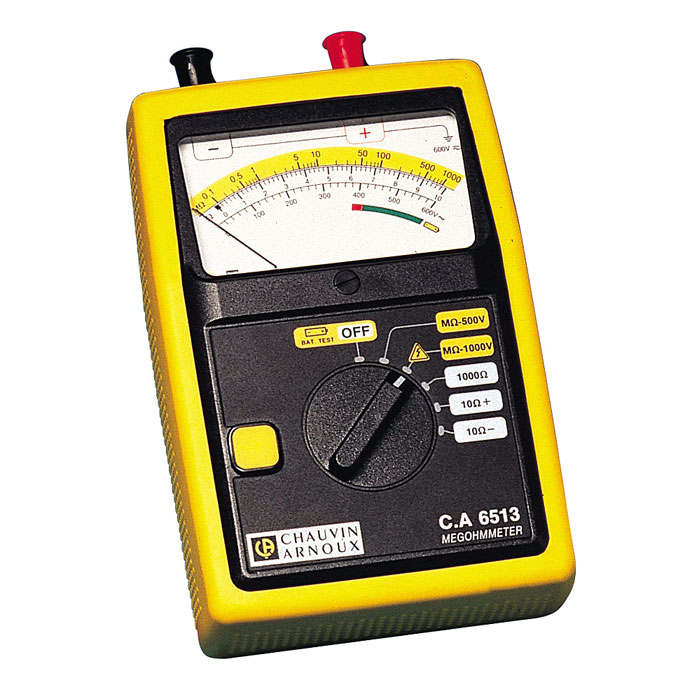

Chauvin Arnoux CA6513 Analogue Insulation Tester

Be the first to review this product

  • Resistance range of 0 to 1000MΩ via two test voltages (500V, 1000V)
  • Automatic AC voltage absence test with measurement range of 0 to 600V
  • Results shown via analogue needle on logarithmic scale

rrp £490.00

now £404.60 (Ex. VAT) £485.52 (Inc. VAT)

rrp £490.00

Please select a free gift below.

"Features a dynamic analogue display"

  • Description

    Chauvin Arnoux CA6513 Analogue Insulation Tester

    The Chauvin Arnoux CA6513 Analogue Insulation Tester is a handy analogue megohmmeter with an insulation resistance measurement range of 0 to 1000MΩ and test voltages of either 500V or 1000V. Further functions include AC voltage measurement up to 600V and continuity testing. Readings are extremely reliable with this tester thanks to an accuracy of just 5% for resistance and 3% for voltage. The AC voltage measurement is particularly useful in terms of safety because it automatically detects voltage presence when the instrument is connected for insulation testing.

    Operation is very simple thanks to a simple dial and automatic voltage absence testing when leads are connected to the two clearly labelled terminals. The Chauvin Arnoux CA6513’s analogue display shows readings dynamically over a logarithmic scale and is extremely clear. The tester is rated as Cat III 600V and weighs just 600g whilst a robust construction helps safeguard it against wear and tear. It comes supplied with a rubber boot and test leads and has a 12-month warranty.

    Chauvin Arnoux part number: P01140301

    Key Features

    • Resistance range: 1000MΩ
    • Test voltages: 500V, 1000V
    • Automatic voltage absence test
    • AC voltage measurement: 0 to 600V
    • Continuity testing
    • Dynamic, analogue display
    • Cat III 600V
    • 12-month warranty
  • Specification

    • Insulation measurement: up to 1,000 MΩ (1 range) at 500 V and 1,000 V DC
    • AC voltage measurement: 0 to 600 V
    • Continuity measurement: -10 Ω to +10 Ω (I = 200 mA)
    • Resistance measurements: 0 to 1,000 Ω
    • Power supply: 4 x LR6 1.5 V batteries
    • Compliant with IEC 61557
    • Electrical safety: IEC 61010 600V Cat III
    • Dimensions: 167 x 106 x 55mm; weight: 600g
    • 12-month warranty
  • Supplied Accessories

    • Chauvin Arnoux CA6513 Analogue Insulation Tester
    • Test leads
    • Rubber boot
    • Instruction manual
