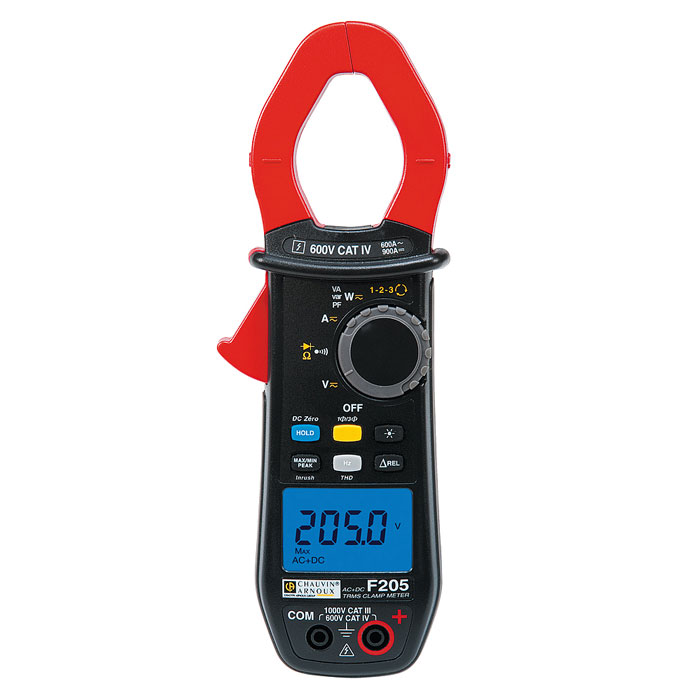

Chauvin Arnoux F205 True RMS Clamp Meter

Be the first to review this product

  • Measures both AC current (600A) and DC current (900A)
  • Harmonics analysis, peak+/ peak-, min/max, REL∆ and differential recording
  • True Inrush current capture for motor start-up phases

rrp £290.00

now £235.00 (Ex. VAT) £282.00 (Inc. VAT)

rrp £290.00

Please select a free gift below.

"Advanced measurement features like peak-/peak+, relative/differential, and harmonics"

  • Description

    Chauvin Arnoux F205 True RMS Clamp Meter

    The Chauvin Arnoux F205 is ideal for carrying out advanced troubleshooting on low- to medium-power installations in domestic or commercial settings. It can be used on mixed AC + DC systems as it is capable of measuring AC current (600A), DC current (900A), AC voltage (1000V) and DC voltage (1400V) in addition to resistance and frequency. Continuity and diode testing can be performed with the F205 whilst Inrush current measurement helps capture current spikes during motor start-up phases.

    Advanced measurement calculations can be carried out using the Chauvin Arnoux F205. These include two-wire phase rotation detection, harmonics (THDr & THDf) analysis, and peak+ to peak- recording which allows the user to accurately assess any distortion. Min/Max recording and differential/relative calculations complete an in-depth measurement process. This is particularly useful as the data hold function allows the user to go back and look at all these different aspects of a reading rather than simply holding a figure on screen.

    Readings are shown on the Chauvin Arnoux F205’s backlit LCD screen and it automatically provides an indication of whether a value is AC or DC. The clamp meter is surprisingly easy to use thanks to an ergonomic design and useful features such as a grooved dial and ‘one button one function’ operability. In fact, the whole meter is designed to be used with just one hand, even when wearing gloves. The 34mm jaw can be worked into tight spaces like switch cabinets and the instrument possesses Cat IV 600V and Cat III 1000V safety certification.

    Overall, the Chauvin Arnoux F205 is a feature-rich clamp meter which is perfect for advanced assessment of a range of different circuits, systems and installations. It comes supplied with test leads, test probes, batteries and a soft case.

    Chauvin Arnoux part number: P01120925

    Key Features

    • AC current range: 600A
    • DC current range: 900A
    • AC voltage range: 1000V
    • DC voltage range: 1400V
    • Inrush current
    • True RMS
    • Min/max, relative & differential recording
    • Harmonic analysis
    • Peak+ and peak- measurement
    • One-handed operation
    • 34mm jaw opening
    • Cat IV 600V, Cat III 1000V
    • IP54 ingress protection
    • 3-year warranty
  • Specification

    • Clamping diameter: 34 mm
    • Display: Backlit LCD
    • Resolution: 10,000 counts
    • Number of values displayed: 1
    • Type of acquisition: TRMS [AC, AC+DC]/DC
    • Autorange: Yes
    • Automatic AC / DC detection: Yes
    • A AC: 0.15 to 600 A (900A peak)
    • A DC: 0.15 to 900A peak
    • A AC+DC: 0.15 to 600 A (900A peak)
    • Best accuracy: 1% reading + 3 cts
    • V AC: 0.15 to 1,000 V (1,400 V peak)
    • V DC: 0.15 to 1,400 V
    • V AC+DC: 0.15 to 1,000 V (1,400 V peak)
    • Best accuracy: 1% reading + 3 cts
    • HZ: (Current) 5.0 Hz to 3,000 Hz / (Voltage) 5.0 Hz to 20.00 kHz
    • Resistance: 0.1 Ω to 59.99 kΩ
    • Open-circuit voltage: ≤ 8 V
    • Measurement current: ≤ 680 µA
    • Audible continuity: Yes
    • Continuity threshold: adjustable from 1 to 599 Ω
    • Diode test (semiconductor junction): Yes
    • Single-phase and total three-phase power values: Yes
    • Active power: 1 W to 600 kW
    • Reactive power: 1 var to 600 kvar
    • Apparent power: 1 VA to 600 kVA
    • FP / DPF: Yes / NO
    • Harmonic analysis: Yes
    • THDf / THDr: Yes / Yes
    • Phase rotation (2-wire method): Yes
    • True InRush (Overcurrent measurement): Yes
    • Motor inrush: Yes
    • Load change: Yes
    • Hold: Yes
    • Min. / Max.: Yes
    • Peak+ / Peak-: Yes
    • RELative ∆X / Differential ∆X/X (%): Yes / Yes
    • Auto Power Off: Yes
    • Electrical safety as per IEC 61010: 600V CAT IV
    • Power supply: 1 x 9 V LF22
    • Dimensions & weight: 78 x 222 x 42 mm / 340 g
  • Supplied Accessories

    • Chauvin Arnoux F205 True RMS Clamp Meter
    • Multi-lingual instructions
    • Test probes
    • Test leads
    • Case
    • 9V battery
    • Crocodile clip
