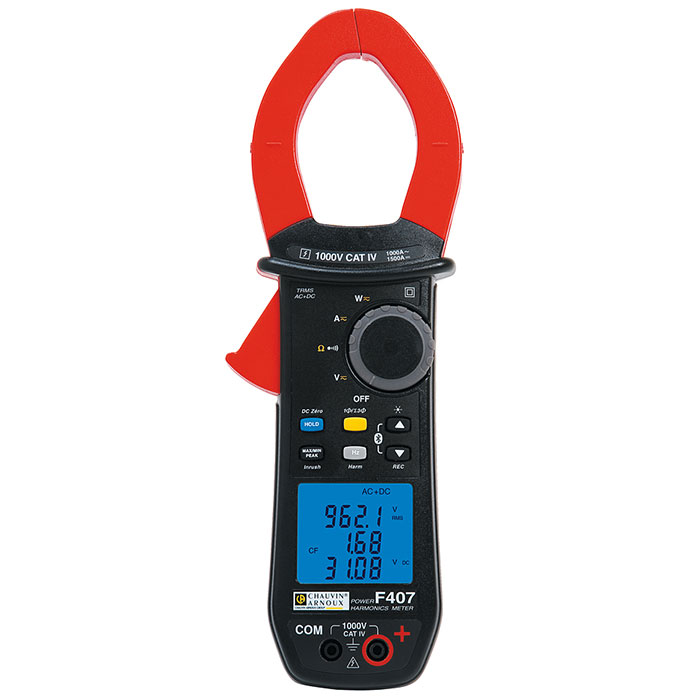

Chauvin Arnoux F407 Harmonic Clamp Meter

Be the first to review this product

  • Multifunctional clamp with True RMS measurement
  • Measures harmonics to the 25th order
  • Record data and transfer using Bluetooth connectivity

rrp £465.00

now £378.00 (Ex. VAT) £453.60 (Inc. VAT)

rrp £465.00

Please select a free gift below.

"Multifunctional clamp with True RMS measurement and harmonics to the 25th order"

  • Description

    Chauvin Arnoux F407 Harmonic Clamp Meter

    Ideal for current and voltage measurement as well as power values, harmonics and more, the Chauvin Arnoux F407 Harmonic Clamp Meter is a multifunctional clamp with a large number of uses.

    Capable of measuring True RMS current levels to 1000A AC and 1500A DC, AC/DC voltage to 1000V, the Chauvin Arnoux F407 also offers W/VA/var, pf and DPF power values, THD-f and THD-r, harmonics to the 25th order, resistance, continuity with audible tone and true InRush current.

    With large 60mm jaws and CAT IV connection terminals, the F407 can be attached to conductors of most sizes and is perfect for use on switchboards or for LV electricity production and distribution, industry, railways, etc. It is also suitable for lift/elevator technicians and other lifting and transport equipment specialists.

    Offering Automatic AC/DC detection, a large 10,000-count backlit display and a simple-to-use rotary switch for selecting functions, plus an IP54-rating, data recording and bluetooth interface / pc software, the F407 is a feature-packed and user-friendly instrument.

  • Specification

    • Current (RMS) AC: 1,000A, 1% ±3 pts (best accuracy)
    • Current (RMS) DC and AC+DC: 1,500 Apeak, 1% ±3 pts (best accuracy)
    • Voltage (RMS) AC: 200 mV to 1,000 V, 1% ±3 pts (best accuracy)
    • Voltage (RMS) DC and AC+DC: 200 mV to 1,000 V, 1% ±3 pts (best accuracy)
    • Auto AC/DC: Yes (V and A)
    • Ripple: Yes
    • Resistance: 100 kΩ
    • Continuity/buzzer: Yes (<40 Ω)
    • Power W, var, VA: Yes, single and total three-phase
    • Crest factor (CF): Yes
    • PF and cos ϕ (DPF): Yes / Yes
    • Auto-shutdown: Yes
    • “Hold” function: Yes
    • “Backlighting” function: Yes
    • “Min Max” key: Yes
    • “Peak” +/- function: Yes / Yes
    • True-Inrush function: Yes
    • THD-f / THD-r harmonics function: Yes / Yes
    • Breakdown into harmonic orders: Yes
    • “REC” recording function: Yes
    • Recordings (with Min Max): Up to 3,000 measurements
    • “BT” Bluetooth communication function: Yes
    • “Hz” function: Yes
    • Clamping diameter (mm): Ø 48
    • Mechanical protection: IP54
    • High electrical protection: IEC 61010 – 1,000 V CAT IV
    • Warranty: 3 years
  • Supplied Accessories

    • Chauvin Arnoux F407 Harmonic Clamp Meter
    • 1 Set of Red/Black Banana Leads
    • 1 Set of Red/Black Crocodile Clips
    • 1 Set of Red/Black Test Probes
    • PC Communication Software
    • Operating Manual
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux F407 & F607 Datasheet    Size: (3.07 MB)
