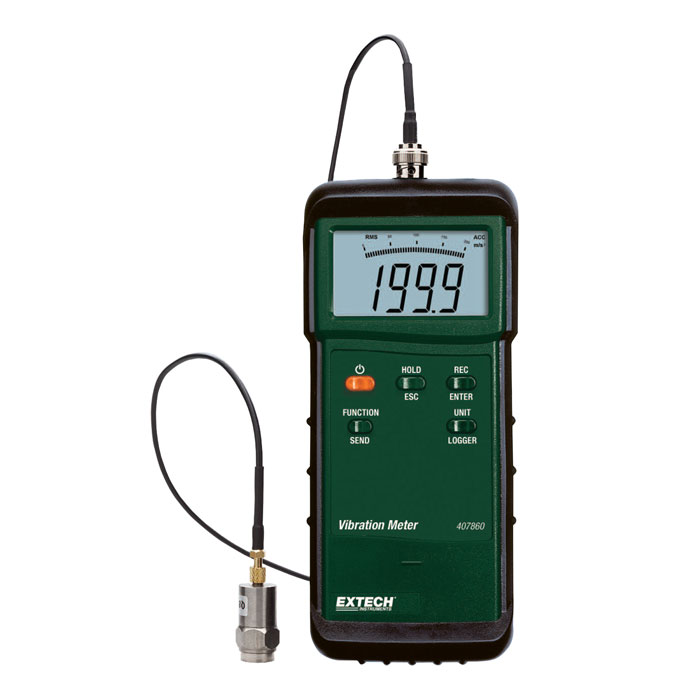

Extech 407860 Heavy Duty Vibration Meter

SKU: EXTE407860
  • Measures acceleration, velocity and displacement
  • Remote vibration sensor with magnetic adapter on 1m cable
  • Record mode storing maximum and minimum values for later recall
More Info
In Stock - Available Next Day

Extech 407860 Heavy Duty Vibration Meter

With its remote sensor allowing for measurement at range, the Extech 407860 Heavy Duty Vibration Meter is perfect for use on any type of machinery, allowing the user to evaluate acceleration, velocity and displacement across a wide range. The Extech 407860 has an acceleration range of 656ft/s or 200 m/s, a velocity range of 7.87in/s or 200mm/s and a displacement range of 0.078in or 2mm. The Extech 407860 has a frequency measurement range of 10Hz to 1kHz and a basic accuracy of ±(5% + 2 digits).

The instrument has been designed with Extech’s excellent build quality in mind comprising of a magnetic sensor suitable for attaching to any machine under test. Tests via this magnetic sensor can be achieved up to 1m away due to the longer cable supplied.

The 407860 has the ability to manually or automatically record and store 500 test results for measurements such as RMS, peak value measurement modes, across one of the three available parameters. Recorded results can accurately be utilized for further analysis by pairing the meter with the optional windows Extech software.

With useful features such as data hold and auto power off functions to conserve the battery life, the Extech 407860 is ideal for vibration measurement on motors, fans, pumps, rotating machinery, plant maintenance and more. Provided with a magnetic mount, hard carrying case and holster with a stand, the Extech 407860 can be used in a number of challenging environments by the user.

Extech 407860 Heavy Duty Vibration Meter Main Features.

  • Measures velocity at (peak): 7.87in/s (200mm/s)
  • Measures acceleration at (peak): 656ft/s2 (200m/s2)
  • Measures displacement at (peak-to-peak): 0.078in (2mm)
  • Large frequency range - 10Hz to 1kHz
  • Resolution to 2ft/s2 (0.5m/s2), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
  • RMS or Peak Value measurement mode
  • Excellent accuracy ±(5% + 2 digits)
  • Internal memory stores up to 500 readings
  • Compatible with optional windows software
  • Remote sensor with magnetic adaptor (1m cable)
  • Data Hold Function
  • Auto Shut down Function
  • Mains powered or optional 9V battery power

What's In The Box?

  • Extech 407860 Heavy Duty Vibration Meter
  • Magnetic Mount
  • Remote Sensor
  • Battery (9V)
  • Protective Holster
  • Hard Carry Pouch

General Specifications

  • Acceleration: 656ft/s² (200m/s²)
  • Acceleration basic accuracy: ±5%
  • Acceleration Max Resolution: 2ft/s² (0.5m/s²)
  • Displacement: 0.078in (1.999mm)
  • Displacement basic accuracy: ±5%
  • Displacement max resolution: 0.001in (0.001mm)
  • Velocity: 7.87in/s (200mm/s)
  • Velocity basic accuracy: ±5%
  • Velocity max resolution: 0.02in/s (0.5mm/s)

Additional details

  • Certifications: CE
  • Dimensions: 7.1 x 2.9 x 1.3" (180 x 72 x 32mm)
  • Power: 1 x 9V battery
  • Warranty: 3 years
  • Weight: 0.87lbs (395g) with probe
  • Other

  • Filter brand: Extech
