Extech DCP36 80W Switching Mode DC Power Supply

Be the first to review this product

  • Autoranging Voltage and Current output, 80W topology
  • Highly portable with front & rear output terminals
  • Four digit LED displays with customisable pre-sets
(Ex. VAT) £286.36 (Inc. VAT) £343.63

* Required Fields

Please select a free gift below.

  • Description

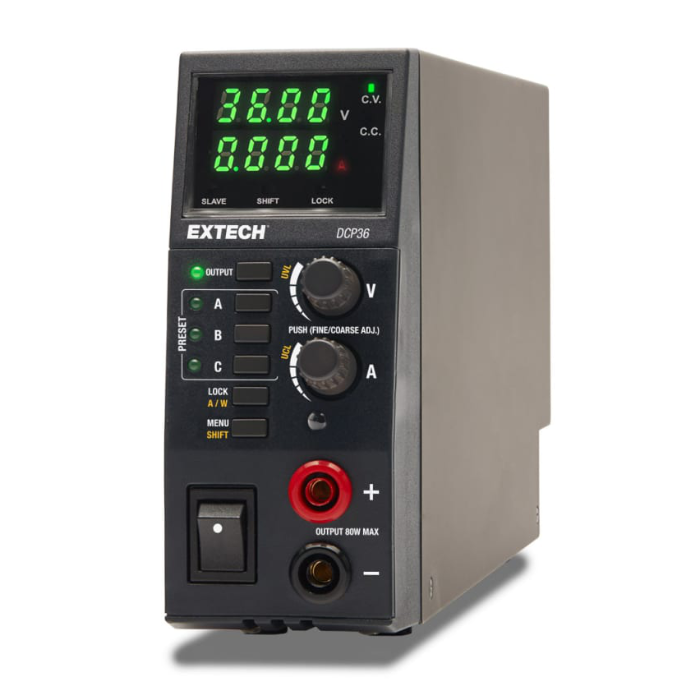

    Extech DCP36 80W Switching Mode DC Power Supply

    The Extech DCP36 80W Switching Mode DC Power Supply combines an 80W constant power topology with an autoranging 0.5 to 36V and 0 to 5A current output. The device includes user-friendly features such as 4-digit dual LED displays with 10mV and 10mA resolution, 3 programmable presets and an upper voltage and current limit setting in order to protect the Unit Under Test (UUT).

    With front & rear output terminals, the DCP36 is is ideal for tight workbenches with limited space. Compact and lightweight for easy portability, the parallel connection capability of the power supply offers the option of Master/Slave control with other units. The DCP36 comes complete with; remote sensing for accurate applied voltage at load point, lock/unlock front panel and a Power Up Output on or off status setting.

    Key Features

    • 80W Constant Power Topology
    • Autorange output of 0.5 to 36V and 0 to 5A
    • Two 4-digit LED displays with 10mV and 10mA resolution
    • Lower display indicates Current or Watts
    • Constant Voltage or Current
    • Programmable presets (3) for frequently used settings
    • UUT (Unit Under Test) protected by upper voltage and current limit setting
    • Output terminals at the front and rear
    • Master/Slave control option with parallel connection to other units
    • Compact slim tower housing is ideal for small work space
    • Lightweight for easy transportability
    • Output on/off switch
    • Power Up Output On or Off status setting
    • Remote Sensing for accurate applied voltage at the load point
    • Lock/Unlock front panel
    • 2 Years Warranty

    Extech part number: DCP36

  • Specification

    • Voltage/Current: 0.5 to 36V/0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W)
    • Accuracy: ±(0.5% + 5 counts)
    • Ripple & Noise: ≤35mVpp
    • Line Regulation: ≤4mV/≤10mA
    • Load Regulation: ≤30mV/≤10mA
    • Dimensions: 13 x 5 x 2" (330 x 127 x 53.5 mm)
    • Weight: 4.2 lbs (1.9 kg)
  • Supplied Accessories

    • RJ11 cable
    • Alligator clip test leads
    • RJ11 terminator plug
  • Product Documents

    Product Attachments

    View FileExtech DCP36 Datasheet    Size: (301.21 KB)
    View FileExtech DCP36 User Manual    Size: (423.24 KB)
