Extech SDL800 Vibration Meter / Datalogger

  • Includes remote sensor to allow vibration measurement at a distance
  • Stores 20M readings on SD card, with 99 on internal memory
  • Adjustable sampling rate, RMS mode, backlit LCD and more
More Info
Typically ships in 7-10 working days

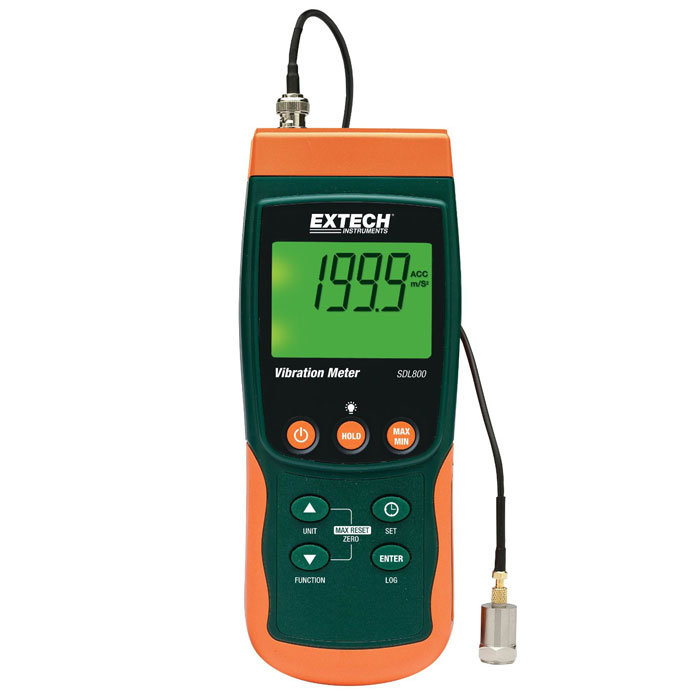

Extech SDL800 Vibration Meter / Datalogger

The Extech SDL800 Vibration Meter / Datalogger is the perfect instrument for carrying out vibration measurement at a distance.

Coming with a remote sensor and magnetic adaptor as standard, the Extech SDL800 allows measurement of overall vibration with a variety of applications, including motors, fans, pumps and more. With the sensor’s cable reaching 1.2m, the SDL800 allows the user to stay at a safe distance when taking measurements and the backlit LCD screen makes reading results easy in a range of environments.

Capable of calculating acceleration and velocity with high levels of accuracy, the SDL800 also offers datalogging functionality, allowing for repeat testing over time. Storing up to 99 readings on the meter itself, the Extech SDL800 can also store up to 20M readings directly onto the included SD card and boasts PC connectivity to make life easier. It also allows the user to configure the sampling rate between 1 and 3600 seconds, meaning you have full control of your measurements.

With captured measurements being date/time stamped and saved to an excel file for easy organisation, the Extech SDL800 is the ideal vibration meter/datalogger for any job, without the need for additional software.

Extech SDL800 Vibration Meter/Datalogger Key Features:

  • Includes remote vibration sensor with magnetic adapter on 1.2m (47.2") cable
  • Wide frequency range - 10Hz to 1kHz
  • Basic accuracy of ±(5% + 2 digits)
  • RMS, Peak Value or Max Hold measurement modes
  • Adjustable data sampling rate (1 to 3600 seconds)
  • Offset adjustment for zero function (to make relative measurements)
  • Large backlit LCD aiding use in a range of environments
  • Stores 99 readings onto internal memory and 20M readings onto a 2G SD card
  • Record/Recall MIN, MAX readings, plus Data Hold and Auto power off functions
  • Built-in PC interface for ease-of-use
  • Comes with remote sensor, magnetic mount, batteries, 2GB SD card and hard carrying case

What's In The Box?

  • Extech SDL800 Vibration Meter/Datalogger
  • Remote Sensor
  • Magnetic Mount
  • 6x AA Batteries
  • 2GB SD Card
  • Hard Carrying Case
  • Acceleration: 656ft/s², 200m/s², 20.39g
  • Velocity: 7.87in/s, 200mm/s, 19.99cm/s
  • Displacement: 0.078in, 2mm (peak-to-peak)
  • Resolution: 1ft/s², 0.1m/s², 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s;
    0.001in, 0.001mm
  • Basic Accuracy: ±(5%+2 digits)
  • Memory: 20,000K data records using 2G SD card
  • Dimensions: 182 x 73 x 47.5mm
  • Weight: 599g
Label Type Size Download
pdf SDL800 Datasheet pdf 198.3 KB Download
