FLIR CM174 Imaging 600A AC/DC Clamp Meter

FLIR
SKU: FLIRCM174
  • Visually identify electrical issues with thermal imaging clamp meter
  • 600A & 1000V and Centre Point Temperature measurement
  • Laser Pointer, Crosshairs, True RMS, Inrush and more
More Info
Discontinued

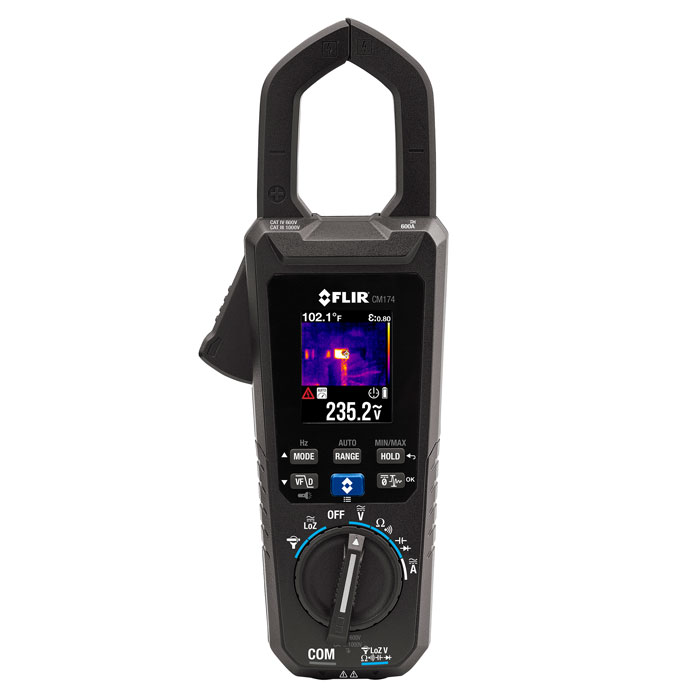

FLIR CM174 Imaging 600A AC/DC Clamp Meter

Please note that this product has now been discontinued, and replaced by the FLIR CM275 Thermal Imaging Clamp Meter.

The first clamp meter equipped with a built-in thermal imager, the FLIR CM174 Imaging 600A AC/DC Clamp Meter can quickly lead you to problems you can’t see with a standard clamp meter.

Utilising Infrared Guided Measurement (IGM) technology, the FLIR CM174 can visually guide you to the precise location of a potential electrical problem, pinpointing dangerous and unknown problem areas safely.

Providing accurate amperage (600A) and voltage (1000V) measurement, in addition to centre-point temperature readings, the FLIR CM174 Clamp Meter also boasts additional advanced electrical features including True RMS, LoZ, VFD Mode, Inrush and Smart Diode with Disable while offering CATIV 600V and CATIII 1000V safety ratings.

With a 10-year warranty to give users peace of mind, the versatile FLIR CM174 features a narrow jaw to allow greater accessibility, dual LED work lights for use in low-light conditions and a compact design to fit easily into your back pocket, meaning you can have thermal imaging everywhere you go.

FLIR CM174 Key Features:

  • 600A AC / DC Commercial Clamp Meter
  • Lepton with Centre Point Temperature
  • Laser Pointer and Crosshairs
  • Skinny Jaws, Skinny Form Factor
  • True RMS, LoZ, Inrush, VFD Mode
  • 3000A AC Flex Clamp Accessory Function (Probe Optional)
  • Dual bright LED work lights
  • CATIV 600V, CATIII 1000V
  • 10 Year Warranty (Product & Detector)

What's In The Box?

  • FLIR CM174 Imaging 600A AC/DC Clamp Meter
  • 4 x AAA Batteries
  • Premium Silicone Test Leads
  • Quick Start
  • User Manual (CD)
  • Extended Warranty
  • Registration Card
Specification

Thermal Information

  • Imaging Detector: FLIR Lepton® microbolometer
  • Thermal Image Resolution: 4800 pixels (60 × 80)
  • Field of View (V x H): 38.6° x 50.0°
  • Color Palettes: Iron, Rainbow, Grayscale
  • Image Frame Rate: 9Hz
  • Temperature Measurement: Centre point of thermal image
  • Temperature Range: -13°F to 302°F (-25°C to 150°C)
  • Temperature Distance to Spot Ratio: 30:1
  • Temperature Accuracy: ±5.4°F (3°C) or ±3% of rdg
  • Spectral Response: 8 to 14μm
  • Temperature Targeting: Class 1 Laser Pointer and Crosshair on display
  • Emissivity Settings: 4 Presets with Custom Adjustment

Electrical Measurements

  • AC/DC Voltage: 1000V range, ±1.0% basic accuracy
  • VFD AC Voltage: 1000V range, ±1.0% basic accuracy
  • LoZ Mode AC Voltage: 1000V range, ±1.0% basic accuracy
  • LoZ Mode DC Voltage: 1000V range, ±1.0% basic accuracy
  • DC Current: 600.0A range, ±2.0% basic accuracy
  • AC Current: 600.0A range, ±2.0% basic accuracy
  • VFD AC Current: 600.0A range, ±2.0% basic accuracy
  • Inrush AC Current: 600.0A range, ±3.0% basic accuracy
  • Inrush AC Current Threshold: Min 0.5A, Integration Time 100ms
  • Frequency: 60.00kHz range, ±0.1% basic accuracy
  • Resistance: 6000Ω range, ±1.0% basic accuracy
  • Continuity: 600.0Ω range, ±1.0% basic accuracy
  • Capacitance: 1000μF range, ±1.0% basic accuracy
  • Diode: 1.5V range, ±1.5% basic accuracy

General Information

  • Display: 6000 Count 2.0” (50mm) Color TFT
  • Jaw Opening: 1.38” (35mm), 1250MCM
  • Category Rating: CAT IV-600V, CAT III-1000V
  • Certifications: UL
  • Battery Type: 4 x AAA
  • Warranty: 10 Years on Product and Detector
Label Type Size Download
pdf FLIR CM174 Datasheet pdf 971.6 KB Download
