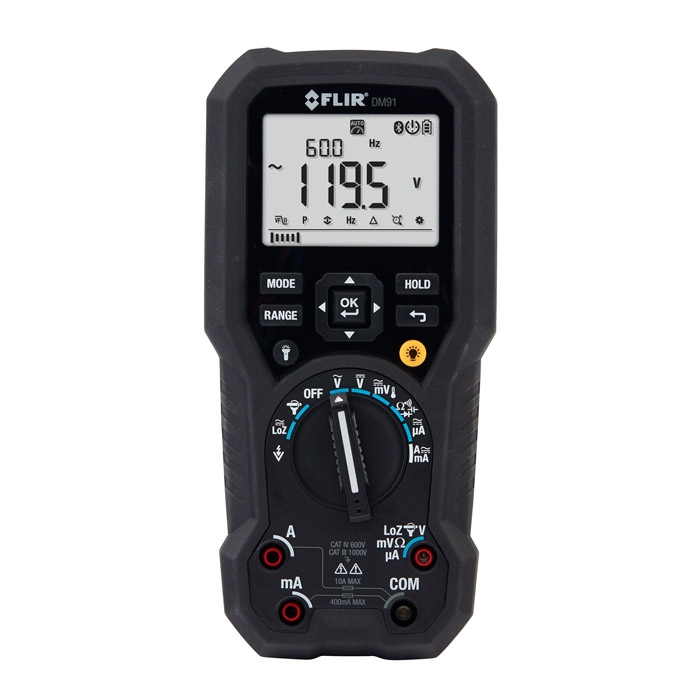

FLIR DM91 True RMS Digital Multimeter

FLIR
SKU: FLIRDM91
  • Measure electrical parameters such as voltage, frequency and capacitance
  • HVAC-specific parameters including temperature and microamps
  • Stores up to 40,000 results in internal memory, downloadable via Bluetooth
More Info
Discontinued

FLIR DM91 True RMS Digital Multimeter

Please note that this product has now been discontinued, and replaced by the FLIR DM93 True RMS VFD Industrial Multimeter.

The FLIR DM91 True RMS Digital Multimeter measures a wide range of electrical parameters including voltage, current, resistance, frequency and capacitance. Each parameter can be assessed to a high degree of accuracy and precision and it is also possible to perform continuity checks and diode tests using the multimeter. It is also useful for the HVAC sector thanks to a temperature measurement range of -40˚C to 400˚C and µA range for testing flame sensors. VFD functionality can be used on variable frequency drives and there is also a low impedance LoZ voltage mode that prevents ghost voltage readings.

The backlit LCD screen on the FLIR DM91 clearly displays digital readouts for all parameters and also features an analogue bar graph which is capable of depicting fluctuating readings dynamically. The test function is selected using the simple dial and the push buttons are used to refine measurements, for example with min/max/avg recording and peak min/max hold. Data hold can be used to manually freeze reading on the screen or auto hold will keep stable readings on the screen. The sizeable internal memory has enough space for 40,000 readings and the multimeter has Bluetooth® connectivity which allows it to communicate readings to a smart device or even match up with a FLIR thermal camera via METERLINK® technology.

The FLIR DM91 is designed to be used in challenging conditions and boasts a comfortable, ergonomic construction with built-in torches for use in poor light. The IP54 protection rating means that the multimeter can withstand splashes of water and even a three-metre drop. A separate non-contact AC voltage detection function warns the user of live voltage presence and the multimeter is rated as Cat IV 300V, Cat III 600V. A limited lifetime warranty covers the instrument against breakdown.

FLIR part number: DM91

Key Features

  • Voltage range: 1000V AC/DC
  • Current measurement
  • Frequency range: 1000kHz
  • Resistance: 50MΩ
  • Continuity check
  • Diode test
  • Capacitance range: 40mF
  • Temperature range: -40˚C to 400˚C
  • Backlit digital display with bar graph
  • Min/max/avg recording
  • Peak hold
  • Internal result storage
  • Bluetooth connectivity
  • Limited lifetime warranty

What's In The Box?

  • FLIR DM91 True RMS Digital Multimeter
  • TA84 Test Leads
  • TA70 insulated Cat IV crocodile clips
  • TA60 type K thermocouple
Specification

Measurements

  • Maximum Voltage: 1000 V DC, 1000 V AC True RMS
  • Frequency Counter: 100.00 Hz
  • Frequency accuracy: ±0.1%
  • Resistance: 6.000 MΩ
  • Resistance accuracy±0.9%
  • Continuity Check: 600.0 Ω
  • Continuity accuracy: ±0.9%
  • Capacitance: 10.00mF
  • Capacitance accuracy: ±1.9%
  • Diode Test: 1.500 V
  • Temperature, Type-K Thermocouple: -40.0 to 400.0°C DMM
  • Temperature accuracy: ± (1.0% + 3°C)
  • Measuring Rate: 3 samples per second

General Information

  • Display Count: 6000
  • Category Rating: CAT IV-600V, CAT III-1000V
  • IP Rating: IP54
  • Battery type: 4x AAA 3x AA
  • Drop Test: 3 metres
  • Battery Life: (Alkaline) approx. 110 hrs ; (Lithium polymer optional): approx. 500 hrs
  • Warranty: Limited lifetime warranty
