FLIR Scout III 640 Outdoor Thermal Camera

FLIR
SKU: FLIRSCOUTIII640
  • Razor sharp thermal imaging using a 640 x 512 pixel thermal sensor
  • Detect heat patterns from animals, motors and humans from over 1000m away
  • 4x digital zoom, high resolution imaging, and 18˚ x 14˚ field of view
More Info
In Stock - Available Next Day
Choose Your Free Gift
MANFROTTO Compact Advanced Tripod
MANFROTTO Compact Advanced Tripod
Free
£69.00

Dual-Use Item: Export authorisation may be required to move this item outside of the UK (Council Regulation (EC) No.428/2009)

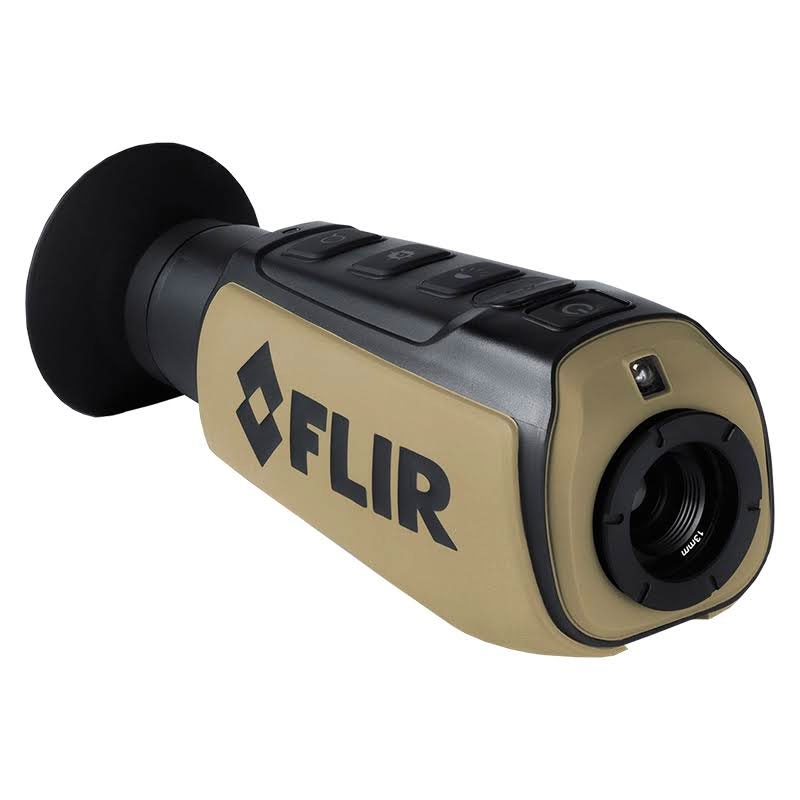

FLIR Scout III 640 Outdoor Thermal Camera

The FLIR Scout III 640 Thermal Camera is the most powerful imager in the Scout III range. It can detect heat patterns in humans, motors and large animals from over a kilometre (1140m) away and provides a high-resolution thermal image thanks to its 640 x 512 pixel thermal sensor. The imager can therefore enhance a user’s vision in poor visibility or at night.

The 30Hz refresh rate and 35mm fixed focus lens provide the user with clear, real-time thermal imaging across the 18˚ x 14˚ field of view. The FLIR Scout III 640 has 4x digital zoom for focusing on specific areas within an image and there is a video output which allows the user to save thermal video to a recording device or show it on a larger monitor.

The 640 x 480 pixel LCD screen on the FLIR Scout III 640 shows thermal images in greyscale or graded fire palettes whilst the InstAlert function can immediately highlight any object over a certain temperature. It is extremely easy to use thanks to its intuitive push-button interface and quick startup process.

The five-hour battery life is excellent for extended outdoor use and the IP67 weatherproof rating means it is fully submersible. The FLIR Scout III 640 is supplied with a wrist strap, video cable, USB charger, and MOLLE bag.

FLIR part number: 431-0019-21-00S

Key Features

  • Range: 1140m
  • Resolution: 640 x 512 pixels
  • Palettes: Greyscale, InstAlert, ‘graded fire’
  • Thermal sensitivity: 50mK (0.05˚C)
  • 2 x, 4x zoom
  • Refresh rate: 60Hz
  • Thermal video output
  • 5-hour battery life

What's In The Box?

  • FLIR Scout III 640 Thermal Camera
  • USB Power Adaptor/Charger
  • Wrist strap
  • Custom video out cable
  • USB Cable
  • Quick Start Guide
  • Molle bag
Specification
  • Detector Type: 640 × 512 VOx Microbolometer
  • Video Refresh Rate: 30 Hz NTSC
  • Field of View (H x V): 18° × 14° NTSC
  • Focal Length: 35 mm Fixed Focus
  • Start up: < 1.5 seconds
  • Waveband: 7.5 - 13.5 μm
  • Thermal Sensitivity: <50 mK @ f/1.0
  • Image Processing: FLIR Proprietary Digital Detail Enhancement ™

User Interface

  • Splash Screen: Generic
  • Power Button: On/Off
  • Zoom Button: 2x, 4x Zoom
  • Colour palettes: Black Hot/White Hot BH/WH/InstAlert ™
  • Brightness: Adjusts display Brightness Setting
  • Task Light: LED Enabled during Power off state

System Specifications

  • Built-In Display: 640 X 480 LCD Display
  • Video Output: NTSC composite video
  • On-Screen Symbology: Standard

Power

  • Battery Type: Internal Li-Ion Cell
  • Battery Life (Operating): >5 Hours

Environmental

  • IP Rating: IP-67, Submersible
  • Operating Temp.: -20 ° C to 50 ° C
  • Storage Temp. : -40 ° F t-40 ° C to 60 ° C)
  • Drop: 1 m drop

Physical

  • Weight (incl. lens): 12 oz (340 g)
  • Size (L × W × H): 6.70" × 2.31" × 2.44"
  • Range: 1200 yards (1140m)
