Fluke 707 Loop Calibrator

Fluke
SKU: FLUKE707
  • Suitable for calibrating, maintaining and repairing current loops
  • Current source, simulation and measurement; DC voltage measurement
  • Easy operation with one hand via push buttons and tactile rotary dial
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 707 Loop Calibrator

The Fluke 707 Loop Calibrator is a well-designed, practical device which can be used for calibrating, repairing and maintaining current loops. The 707 boasts current measurement (up to 24mA), current sourcing and current simulation (both up to 20mA) as well as slow ramp, fast ramp and step ramp which ensure smooth outputs. The user can change the output in 25% steps for linearity testing using a simple push button whilst other navigation can be performed with just one hand via the rotary dial.

Percentage readings and mA readings are shown simultaneously on the backlit digital display. Current in mA is highly accurate (±0.015%) and precise to just 1µA. DC voltage measurement is also available from 0 to 28V whilst span check allows quick zero and span checking. An independent 24V loop supply means that a separate digital multimeter is not required whilst the Fluke 707 can also be used to inspect HART communicators.

The lightweight, ergonomic design coupled with one-handed operation means that the Fluke 707 is extremely practical and easy to use. This is further enhanced by the accessories supplied with the device which include test leads, crocodile clips, and a calibration certificate.

Fluke part number: 707

Key Features

  • Current sourcing and simulating up to 20mA
  • Current measurement up to 24mA
  • Slow-, fast- and step-ramp for smooth output
  • One-handed operation with tactile feedback from dial
  • Highly accurate current (±0.015%)
  • Simultaneous percentage and mA readings
  • 1µA resolution
  • DC voltage measurement up to 28V
  • Rapids checks for zero and span
  • Auto-step, auto-ramp
  • Independent loop supply

What's In The Box?

  • Fluke 707 Loop Calibrator
  • Instructions for Fluke 707 Intrinsically Safe Loop Calibrator (CD)
  • Calibration certificate
  • Test leads
  • Crocodile clips
Specification

Measurement Specifications

  • Current measurement range: 0 to 24mA
  • Current measurement resolution: 0.001mA
  • Current measuremnent accuracy: 0.015% Rdg + 2 LSD
  • Current sourcing range: 0 to 20mA OR 4 to 20mA
  • Current sourcing accuracy: 0.015% Rdg + 2 LSD
  • Current sourcing drive capability: 1200Ω; 950Ω at 20mA in HART mode
  • Current simulation range: 0 to 20mA OR 4 to 20mA
  • Current simulation accuracy: 0.015% Rdg + 2 LSD
  • Current simulation ext loop voltage requirement: 12-30V
  • Loop power: 24V whilst measuring mA
  • DC voltage measurement range: 0 to 28V
  • DC voltage resolution: 1mV
  • DC voltage accuracy: 0.015% Rdg + 2 LSD

Environmental Specifications

  • Operating temperature: -10˚C to +55˚C
  • Storage temperature: -30˚C to +60˚C
  • Humidity (without condensation): 0 to 90% (0˚C to +35˚C) / 0 to 70% (+35˚C to +55˚C)
  • Temperature co-efficient: -10˚C to 18˚C, 28˚C to 55˚C, ±0.005% of range per ˚C

General specifications

  • Dimensions: 152 x 70 x 41mm
  • Weight: 224g (350g including holster)
  • Batteries: 1 x 9V alkaline battery
  • Shock and vibration: per MIL-T-28800 for a Class 2 instrument

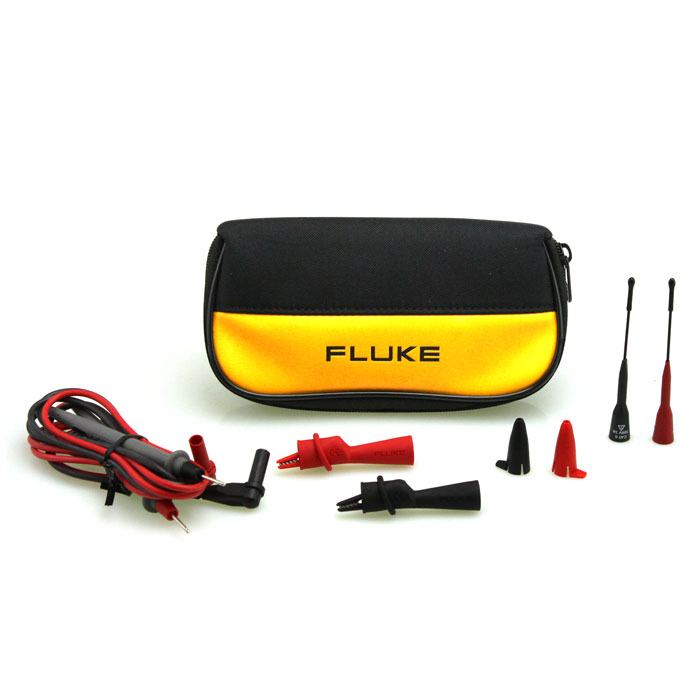

  1. Fluke TL80A-1 Basic Electronic Test Lead Set
