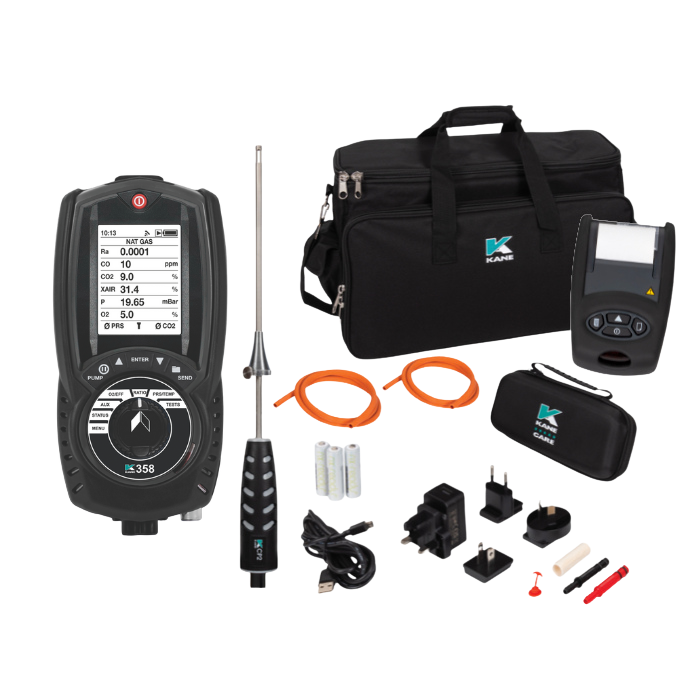

Kane 358 Combustion Flue Gas Analyser Standard Kit
The Kane 358 Combustion Flue Gas Analyser Standard Kit provides users with an exceedingly simple and swift method of installing or servicing oil, domestic gas or biomass appliances. Supplied complete with a Kane IRP3 Printer and soft carry case, the 358 is ideal for commissioning, let-by and tightness testing. Hydrogen (H2) ready up to 20% and capable of calculating CO2 & CO/CO2 ratio alongside excess air, this Combustion Flue Gas Analyser can also perform the following measurements:
- CO 0-2,000ppm
- O2 0-21%
- Differential temperature
- High accuracy differential pressure meter +/- 80mbar
Fully suitable for Flue Draughts, the Kane 358 Analyser can complete reliable Combustion Performance and Combustion Efficiency checks. With an intuitive purge pump protection system preventing accidental CO sensor damage, this unit is compatible with the following fuel types; Natural Gas, LPG, Butane, Light Oil, Propane and Wood Pellets.
The bright digital screen of the Kane 358 Combustion Flue Gas Analyser features a six line display. Quickly switch between measurements with the large and easy-to-use rotary dial while utilising the built-in data hold and log functions. In addition, print user details on-site with the included compact Kane printer.
Kane Live & Printer Apps
For further increased functionality, select to add the optional Wireless Module from the check box above and relay information directly to the Kane Live & Printer apps. Analysers MUST have a wireless module fitted to be compatible.
The Kane Live App is compatible with Android Devices and free from the Play Store. This multilingual App includes several extremely useful features beneficial for anyone with a Flue Gas Analyser. See your test results live on your smart device and even tag them with real-time GPS data & printouts all while still physically on site. Printouts can be shared along with downloaded analyser logs as CSV files, with analyser user details amendable within the App itself.
The Kane Printer App is compatible with Android/iOS and is free from both the Play & App Store. With this app users can quickly connect to their analyser and view test results before emailing them to their contacts. Log each test location via GPS then save printouts to edit before transfer. Fully customise personal notes even in poor lighting conditions as a useful NightMode is incorporated within the app.
Kane 358 Combustion Flue Gas Analyser Kit Comparison Table
The Kane 358 Combustion Flue Gas Analyser is also available in a range of impressive kits.
|
Standalone Analyser |
Standard Kit |
PRO Kit |
CPA1 Kit |
Oil Kit |
Wireless Connectivity |
✔ |
✔ |
✔ |
✔ |
✔ |
FGA CP2 Probe |
✔ |
✔ |
✔ |
✔ |
✔ |
Pressure Connectors |
✔ |
✔ |
✔ |
✔ |
✔ |
CO Sensor Purge Pump Protection |
✔ |
✔ |
✔ |
✔ |
✔ |
KANE IRP-3 Infra-red printer |
- |
✔ |
✔ |
✔ |
✔ |
GLD Gas Leak Detector |
- |
- |
✔ |
✔ |
- |
KAL1 & KPCP Pipe Clamp Temperature Probes |
- |
- |
2 |
2 |
- |
HARHOSE Pressure tubing |
- |
- |
✔ |
✔ |
- |
ASP3 Oven & Grill Probes |
- |
- |
- |
✔ |
- |
KANEMSP & SP9 Smoke Pump & Papers |
- |
- |
- |
- |
✔ |
Oil pressure test set |
- |
- |
- |
- |
✔ |
Calibration Report |
✔ |
✔ |
✔ |
✔ |
✔ |
Carry Case |
- |
✔ |
- |
- |
- |
Large Carry Case |
- |
- |
✔ |
✔ |
- |
Backpack |
- |
- |
- |
- |
✔ |
Kane Flue Gas Analyser Series
The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. However the also available Kane 458 Combustion Flue Gas Analyser includes more advanced features such as CO safety checks and an optional NO sensor. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
|
Kane 258 |
Kane 358 |
Kane 458s |
|
|
|
|
Features |
Yes |
Yes |
Yes |
Temperature Measurment |
Yes |
Yes |
Yes |
Wireless Connectivity |
Yes (Option) |
Yes (Option) |
Yes |
Pressure Measurment |
- |
Yes |
Yes |
Test Sequences |
- |
Yes |
Yes |
Room CO |
- |
- |
Yes |
Sensor Upgrades |
- |
- |
Yes |
KANE LINK |
- |
- |
Yes |
Indoor Air Quality |
- |
- |
Yes (Option) |
|
|
|
|
Applications |
|
|
|
Combustion Performance Checks |
Yes |
Yes |
Yes |
Combustion Efficiency Checks |
Yes |
Yes |
Yes |
Flue Draughts |
- |
Yes |
Yes |
Boiler Commissioning Test |
- |
Yes |
Yes |
Let By & Tightness Tests |
- |
Yes |
Yes |
CO safety checks |
- |
- |
Yes |
|
|
|
|
Measures |
|
|
|
CO 0 - 2,000pm |
Yes |
Yes |
Yes |
O2 0 - 21% |
Yes |
Yes |
Yes (option) |
Differential Temperature |
- |
Yes |
Yes |
Differential pressure meter +/- 80mbrar |
- |
Yes |
Yes |
CO2 direct with an Infra-Red sensor 0 - 20% |
- |
- |
Yes |
NO 0 - 600ppm |
- |
- |
Yes (option) |
CO 0 - 10,000ppm |
- |
- |
Yes (option) |
|
|
|
|
Calculates |
|
|
|
CO2 0 - 20% |
Yes |
Yes |
Yes |
CO / CO2 ratio |
Yes |
Yes |
Yes |
Excess Air |
Yes |
Yes |
Yes |
Combustion Efficiency |
Yes |
Yes |
Yes |
O2 |
- |
- |
Yes |
|
|
|
|
Contents |
|
|
|
FGA CP2 Probe |
Yes |
Yes |
Yes |
USB Charger |
Yes |
Yes |
Yes |
IRP-3 Infrared Printer |
Yes (option) |
Yes (option) |
Yes (option) |
Carry Bag |
Yes (option) |
Yes (option) |
Yes (option) |
Pressure Connectors |
- |
- |
Yes |
GLD Gas Leak Detector |
- |
Yes (option) |
Yes (option) |
KAL1 & KPCP Pipe Clamp Temperature Probes |
- |
Yes (option) |
Yes (option) |
HARHOSE Pressure tubing |
- |
Yes (option) |
Yes (option) |
KANEMSP & SP9 Smoke Pump & Papers |
- |
Yes (option) |
Yes (option) |
ASP3 Oven & Grill Probes |
- |
Yes (option) |
Yes (option) |
Oil Pressure test set |
- |
Yes (option) |
Yes (option) |
