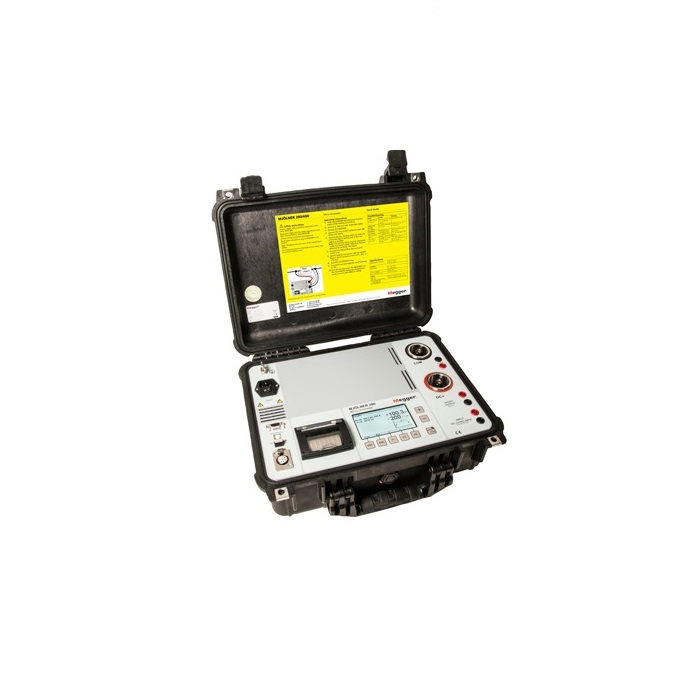

Megger MJÖLNER 200 Micro-Ohmmeter

Be the first to review this product

  • Fully automatic testing
  • True 200A DC current output
  • Waterproof, lightweight case
(Ex. VAT) £7,140.00 (Inc. VAT) £8,568.00

* Required Fields

Please select a free gift below.

  • Description

    Megger MJÖLNER 200 Micro-Ohmmeter

    Suitable for measuring the resistance of circuit breaker contacts, electrical bus bars, element contacts and other high current HV applications, the Megger Mjonler 200 Micro-Ohmmeter is designed with safety, ease of use and versatility in mind.

    The Mjolner 200 will output current between 5A and 200A in 1A steps. This allows very accurate, low resistance measurement values to be displayed and printed, avoiding inconsistency problems associated with low current testing. Remote testing is also an option with a remote control that is available to select from the options above.

    MJÖLNER 200 can also display measurements using the DualGround method. This method requires the test object to be earthed on both sides throughout the test process, ultimately making for a faster and more stable test result. Please note that the DualGround current clamp is not supplied as standard and is available to select from the drop down list above.

    Contained within a robust case, the Megger Mjölner 200 is ideal for use in harsh environments. With the case lid closed, the product can withstand ingress from water, dust and sand and can even float. Test results can be downloaded to a PC or laptop and reported using optional Mjölner Win PC software available from the options above.

    Why test resistance at such a low value?

    If the contact resistance on a high current electrical joint is too high, temperature rises and power loss are inevitable leading to a host of problems such as overheating joints and electrical equipment failure. The following table demonstrates the importance of low resistance joins within high current applications:

    CurrentContact ResistancePower Loss
    10,000A (10kA) 1 milli-Ohm 100,000 Watts (100kW)
    10,000A (10kA) 0.1 milli-Ohm 10,000 Watts (10kW)
    1,000A (1kA) 1 milli-Ohm 1,000 Watts (1kW)
    1,000A (1kA) 0.1 milli-Ohm 100 Watts



    Key Features

    • Fully automatic testing
    • Safe test – DualGround (optional DualGround kit available)
    • True DC current output
    • Waterproof, lightweight case
    • Remote test (optional remote control available)
    • Built in thermal printer
    • PC interface connection (Optional Mjölner Win PC software available)

    MJÖLNER 200 Kits available:

    Part number Includes 5m Test Lead Set Includes 200A DC Current Clamp
    BD-19191 (With 5m leadset) -
    BD-19193 (With 5m leadset and clamp) DualGround Kit
    BD-19100 (Standalone product) - -
  • Specification

    Please click here for full product specifications
  • Supplied Accessories

    • Megger MJÖLNER 200 Uni
    • Cable set, current cables 2 x 5 m (16 ft), 35 mm2
    • Sensing cables 2 x 5 m (16 ft)
    • Ground cable, 5 m (16 ft) 2.5 mm2
    • DualGround kit (XA-12992), Current probe 200 A, max. con-ductor size 50 mm diameter (2”), test cables 5m (optional, please select above)

    Note: Unit can be purchased without test leads - Please select above.
