- RD8200SG Locator
- Li-ion Battery Pack
- Mains Charger
- Mains Lead
- USB-C Lead
- User Guide
- Locator Rechargeable Battery Instruction Sheet
What's in the Box should you opt for the Bag & Phone Holder Kit?
- Bag
- Phone Holder
Subtotal (inc VAT)
Subtotal (ex VAT)
Creating an account has many benefits:
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

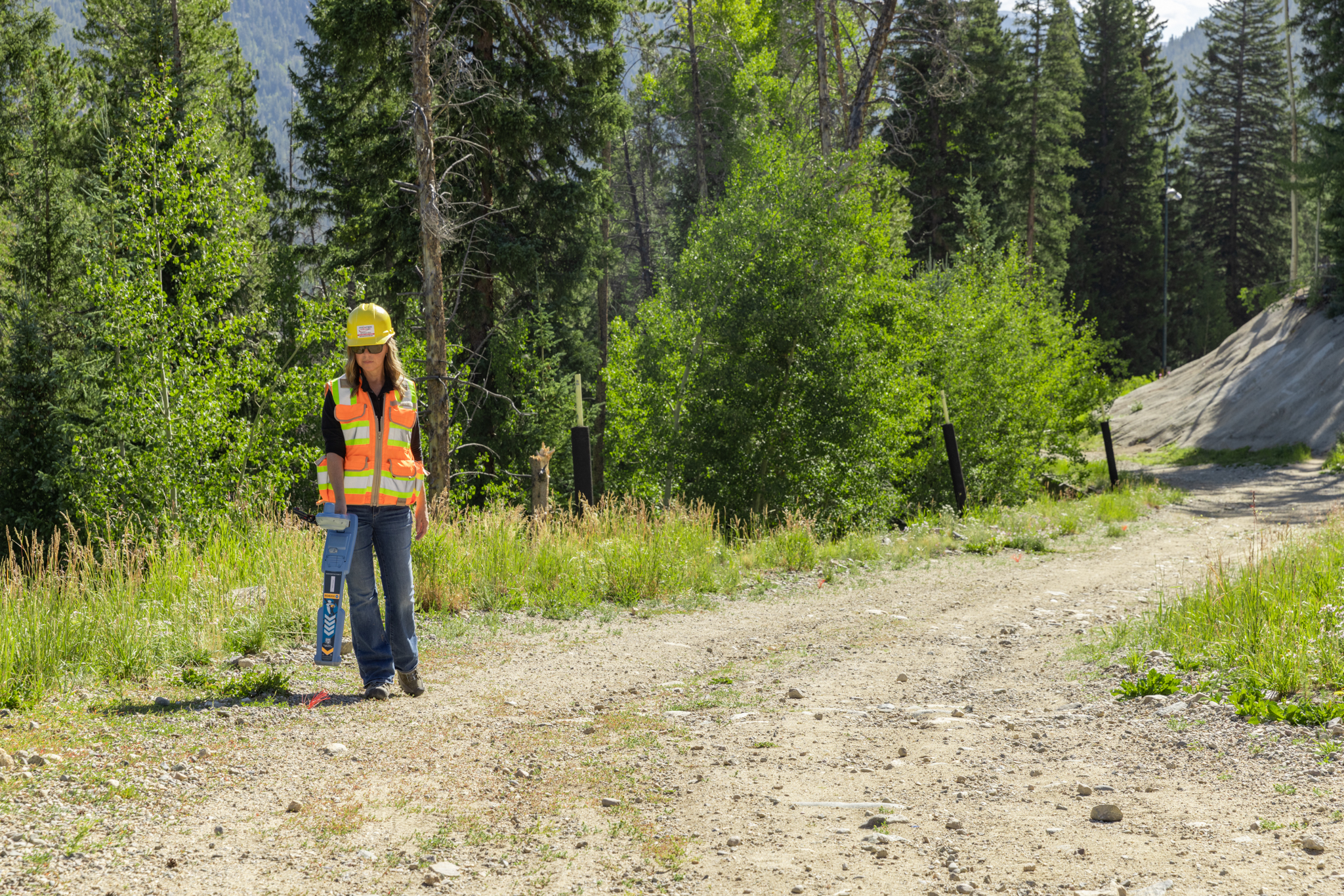

The Radiodetection RD8200SG Cable and Pipe Locator is the Survey Grade solution to combined mapping and utility locating, which enables the user to map buried utilities with pinpoint accuracy and maximum efficiency. Ergonomically designed for simple yet effective use, the user can tailor the instrument to suit their needs, selecting their preferred mobile app and correction service provider in order to find what works best for the business. The RD8200SG's rugged design allows for it to be used in the field, with protection against rain, dirt and extreme temperatures which would otherwise disrupt the location process. The cable and pipe locator can be used for a wide range of tasks, such as:
The RD8200SG has been designed to uncover the exact location of buried utilities, which would be left uncovered without the expense of highly-specialised and costly equipment.
The RD8200SG comes with inbuilt Digital Signal Processing which allows for technicians to detect and uncover weak signals which are being produced, even by hard-to-locate utilities buried underground. It is equipped with five 'Active Locate Modes', which allows the user to select what will work best for them, and tailor the instrument to the environment and task at hand. They are Peak, Peak+, Guidance, Broad Peak, and Null, which all offer different sensitivities for the task at hand.
Peak+ Mode combines the accuracy that you receive from the Peak bargraph with a choice of Guidance or Null directional arrows. Guidance arrows give a visual indication of the direction to the target utility, expertly designed to get you close to to the Peak position faster before pinpointing the target utility. On the other hand, Null arrows allow you to test for distortion before marking a point, and can be used when accurate locate measurements are required.
The Radiodetection RD8200SG is the only Radiodetection Cable and Pipe Locator that offers high-accuracy mapping which, coupled alongside advanced precision locating and GNSS positional location, makes this tool a must-have for technicians. It is also IP65 certified, which means it is safe against dust and jets of water from any direction. The RD8200SG has been designed to encourage proper handling and usage, whilst also minimising utility damage and improving on-site safety. The locators have an in-built gyroscopic measurement system which informs the user should an excessive swing be recorded.
The RD8200SG is also able to run a 'self-test', which can apply signals to locating circuitry as well as checking its own display and power functions. StrikeAlert will also alert the user of any shallow cables with both visual and audio warnings, preventing any incidents from occuring.
Radiodetection part number: 10/RD8200SG-UK
The RD8200SG can also be purchased as part of a kit, with an additional bag and phone holder included. This allows for the transportation of the instrument, meaning that the user can move it with ease. The phone holder also offers greater flexibility for job sites, by allowing the user's phone to be attached to the RD8200SG as the task is being completed. Simply tick the checkbox at the top of this page to opt for the kit option.
The Radiodetection Cable and Pipe Locator range features three models, each designed to meet the needs of a specific industry challenge.
RD7200 | RD8200 | RD8200G | RD8200SG | |
---|---|---|---|---|
Active Modes | ||||
Active Frequencies | 8 | 21 | 21 | 21 |
Custom Frequencies | - | 5 | 5 | 5 |
Sonde Frequencies | 4 | 4 | 4 | 4 |
Peak, Null, Peak+, Guidance Mode | ✔ | ✔ | ✔ | ✔ |
Broad Peak (Single Antenna Mode) | - | ✔ | ✔ | ✔ |
Fault Find | ✔ | ✔ | ✔ | ✔ |
Current Direction (find target amongst multiple cables) | - | ✔ | ✔ | ✔ |
Passive Modes | ||||
Power, Radio, CPS | ✔ | ✔ | ✔ | ✔ |
Power Filters (Power Cable discrimination) | ✔ | ✔ | ✔ | ✔ |
Depth in Power Mode | ✔ | ✔ | ✔ | ✔ |
CATV, Passive Avoidance | - | ✔ | ✔ | ✔ |
Survey Data & Connectivity | ||||
BLE (Bluetooth low energy) | ✔ | ✔ | ✔ | ✔ |
iLoc (Rx control of transmitter) | - | ✔ | ✔ | ✔ |
Survey Measurements | - | ✔ | ✔ | ✔ |
Built-in GPS | - | - | ✔ | ✔ |
User Activity Data Logging | - | - | ✔ | ✔ |
Capabilities | ||||
Advanced Precision Locating | ✔ | ✔ | ✔ | ✔ |
High Accuracy Mapping | - | - | - | ✔ |
GNSS Positional Location | - | - | ✔ | ✔ |
Location Accuracy | - | - | Standard Accuracy | Survey Grade Accuracy |
Lithium-ion Battery | Optional | Optional | Optional | Optional |
Usage Logging | - | ✔ | ✔ | ✔ |
Performance
Connectivity
Power Options
Physical Characteristics
Certification and Compliance
|
