- GW65 Gateway for Vibration Monitoring Solution
- 4 x Gateway AC Connectors for US/EU/UK/AUS power outlets
- 4 x SV87 Remote Vibration/Temperature sensors with adhesive tape
- Quick start guide
- Access to configuration and Visualisation software
FLIR SV87-Kit Remote Vibration Monitoring Solution
SKU: TELESV87KIT
- Monitor and log temperature and vibrations of industrial equipment
- Wirelessly transfer recordings via WiFi and Bluetooth in real time to a smart device or PC
- Up to Four years battery life with a red LED indicator for low battery
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£919.00
£1,102.80
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
FLIR SV87-Kit Remote Vibration Monitoring Solution

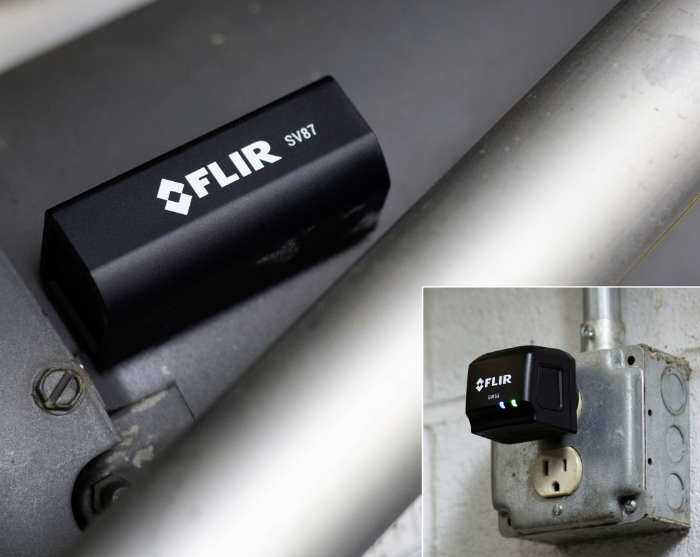

The FLIR SV87-Kit Remote Vibration Monitoring Solution allows for wireless monitoring within a 65m range, with data logging of temperature and vibration readings for a wide range of industrial equipment that use rotary machinery such as industrial pumps, fans, gearboxes and motors. The SV87 Kit includes a remote monitoring FLIR GW65 Gateway which stores data that can be transferred wirelessly in real time to a smart device or PC and four FLIR SV87 vibration and temperature Remote Sensors that boast a sensitivity range of ±32g and a frequency range of 10Hz to 1kHz.
The SV87 Kit records data samples every 90 seconds which can be stored and exported into CSV files. Data can be analysed in real-time using a smart device or PC, with data and trending charts viewed and reviewed. Mechanical failures can be predicted before they happen, thanks to the automated vibration analysis. Users of the SV87 Kit can reduce downtime and improve profitability by gaining knowledge about machinery operation and maintenance, without having to wait for a manual inspection. The SV87 Kit allows users to monitor remotely, with users receiving alerts or emails instantly when abnormal conditions are detected and user-defined vibration or temperature thresholds are exceeded. Remote monitoring provides further safety for the operator by minimising the exposure to difficult-to-access locations or dangerous environments.
The SV87 Kit captures temperature recordings within a range of -30ºC to 80ºC, with users able to view several data recordings on their mobile device or PC such as minimum, maximum, live, historical data and trending charts can all be viewed in real-time. The Flir GW65 has 32MB internal data storage, which will allow approximately 5 days of data backup for four sensors in case of any Wi-Fi outage. The GW65 receives temperature and vibration data via Bluetooth from the sensors and sends data to a PC or mobile device via Wi-Fi.
The SV87 has a battery life of four years reducing the need to change the sensor battery frequently and limiting the contact with machinery. The Gateway has an IP40 rating whilst the Sensor is IP67 rated protecting the sensor from dust and water whilst also drop tested to 1m. The SV87 includes LED indicators to show the user the power, sensor alarm and Wi-Fi status.
Key Features
- 1 x FLIR GW65
- 4 x FLIR SV87 vibrating and temperature remote sensors
- Wireless sensing solution to monitor and log temperature and vibration readings
- Monitor industrial equipment including rotating machinery, pumps, fans, gearboxes and motors
- Data captured every 90 seconds
- Real-time data and trending charts
- Wireless transfer of data in CSV file to a smart device or PC
- Automated vibration analysis for predicting mechanical failures
- Up to four years of battery life with a Red LED indicator for low-battery
- Automatic alerts or emails should pre set vibration or temperature thresholds to be exceeded
- Remote monitoring allows for challenging locations or environments to be monitored
- Find potential issues before faults become apparent or failures occur
- 65m line of sight range
- Data captured every 90 seconds
- LEDs indicate power, sensor alarm and Wi-Fi status
- Operating Temperature Range: Gateway: -25°C to 65°C (-13°F to 149°F) and Sensor: -30°C to 80°C (-22°F to 176°F)
- 32MB data storage
- IP rating: Gateway IP40, Sensor IP67 and drop tested to 1m
What's In The Box?
|
Measurement and Analysis
Connections and Communications
General Information
Environmental Data
Power
Physical Data
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Teledyne FLIR SV87-Kit Datasheet | 525.7 KB | Download |
