TPI 645 Tuffman Dual Input Differential Manometer

Be the first to review this product

  • Rugged aluminium design for use in challenging industrial environments
  • Large pressure measurement range of -2000mBar to +2000mBar
  • Data hold, min/max recording, and smoothing function

rrp £165.00

now £144.79 (Ex. VAT) £173.75 (Inc. VAT)

rrp £165.00

* Required Fields

Please select a free gift below.

"Large measurement range for pressure in industrial environments"

  • Description

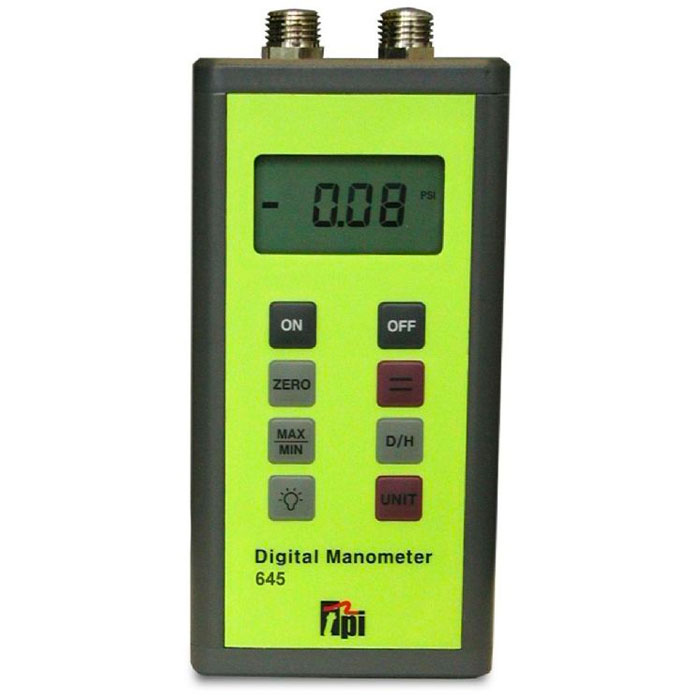

    TPI 645 Dual Input Differential Manometer

    The TPI 645 Tuffman Dual Input Differential Manometer is ideal for industrial environments thanks to a sturdy aluminium construction and an extremely wide pressure measurement range (-2000mBar to +2000mBar). Readings are accurate to ±0.2% and high resolution means great precision. A smoothing function stabilises readings when the pressure is fluctuating in order to maintain clarity. The pressure gauge is also capable of min/max recording, thereby providing an in-depth look at pressure conditions.

    The backlit, four-line display on the Tuffman TPI 645 shows readings clearly and simply. A data hold function can freeze a reading on screen whilst a manual zero function adds further practicality. The battery lasts for roughly 80 hours and an auto power-off function helps conserve energy. A three-year warranty comes as standard and accessories include a set of tubing. Overall, the TPI 645 constitutes an excellent instrument for use on flow systems in industrial environments.

    By using the dropdown menu above, the user can select between two different connection types. The standard compression connection is a simple 'screw over tube to tighten' system whilst the NPT connection is more suited to higher pressure and special connections.

    TPI part number: 645

    Key Features - Tuffman TPI 645 Differential Pressure Manometer

    • Pressure range: -2000mBar to +2000mBar
    • Accuracy: ±0.2%
    • Smoothing function
    • Min/max recording
    • Rugged aluminium design
    • Data hold
    • Manual zero
    • Seven measurement units
    • 80-hour battery life
    • Three-year warranty
  • Specification

    • Measurement Range: ±29 psi
    • Display: 4 Digit Dual line LCD with backlight
    • Input Type: Dual Differential (compression fittings)
    • Resolution (max): 0.01 psi
    • Accuracy: +/-(0.2% Full scale + 3 digits)
    • Functions: One Touch Zero, Data Hold, Back-light, Unit Selection, Smoothing, Auto power Off, Min / Max Record, Resolution Selection
    • Units of Measure: 7 Units (mbar, kPa, PSI, mmHg, inHg, mH2O, inH2O)
    • Battery Type: 9V alkaline
    • Battery Life: 80hours (Typical)
    • Auto Power Off: 30 minutes
  • Supplied Accessories

    • TPI 645 Tuffman Dual Input Differential Manometer
    • Instructions
    • Tubing
    • 9V battery
  • Product Documents

    Product Attachments

    View FileTPI 645 Datasheet    Size: (55.69 KB)
