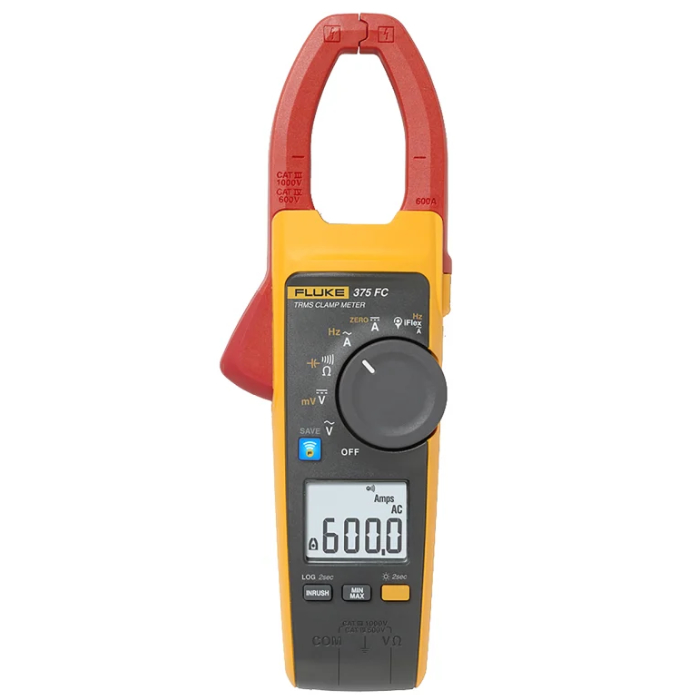

Fluke 375 FC True RMS AC/DC Clamp Meter

Be the first to review this product

  • Measures AC/DC voltage, AC/DC current, frequency, resistance & capacitance
  • Bluetooth connectivity via the Fluke Connect App to smartphone/tablet
  • True RMS, Inrush current, low-pass filter

rrp £352.00

now £290.00 (Ex. VAT) £348.00 (Inc. VAT)

rrp £352.00

Please select a free gift below.

"A versatile clamp meter with Bluetooth connectivity"

  • Description

    Fluke 375 FC True RMS AC/DC Clamp Meter

    The Fluke 375 FC True RMS AC/DC Clamp Meter is a smart device that boasts Bluetooth connectivity to the user’s smartphone/tablet via the Fluke Connect app. This allows it to project readings directly to the user’s smartphone or tablet where data can be analysed and forwarded. An additional advantage of Fluke Connect is that the user can leave a meter connected to a system and then observe outputs from a safe distance.

    As far as measurement is concerned, the Fluke 375 FC can take accurate readings for AC/DC current (600A), AC/DC voltage (1000V), frequency (500Hz), resistance (60kΩ) and capacitance (1000µF). There is also an option for continuity testing whilst true RMS measurement helps keep AC readings accurate. Inrush measurement allows readings to be taken for current during system start-up and a low pass filter helps accurately assess motor drives.

    Results are shown on the Fluke 375 FC’s backlit, digital screen as well as on the user’s smartphone. There are options for min/max/avg recording and data hold so the device gives a comprehensive overview of system outputs. The 34mm jaw has simple trigger operation whilst the measurement type is set with a dial.

    The Fluke 375 FC is compatible with the Fluke iFlex Flexible Current Probe which can measure frequency and AC current up to 2500A as well as bringing greater access to awkward or cramped wiring. The inputs are safety-rated as Cat III to 1000V and Cat IV to 600V. The product provides a great way of taking and sharing accurate electrical readings and comes supplied with test leads and a soft carry case.

    Fluke part number: 375FC

    Fluke Connect App

    The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

    Fluke 375 FC Key Features

    • AC/DC current: 600A
    • AC/DC voltage: 1000V
    • Frequency: 500Hz
    • Resistance: 60kΩ
    • Capacitance: 1000µF
    • True RMS
    • Continuity test
    • Inrush current measurement
    • Low pass filter
    • Backlit LCD screen
    • 34mm jaw with trigger operation
    • Cat III 1000V, Cat IV 600V
    • Bluetooth connection to Fluke Connect app on smartphone/tablet
  • Specification

    AC Current

    • Range: 600A
    • Resolution: 0.1A
    • Accuracy: 2% ± 5 (10Hz to 100Hz); 2.5% ± 5 (100Hz to 500Hz)
    • Crest factor: 2.5 @ 350A; 1.42 @ 600A

    DC Current

    • Range: 600A
    • Resolution: 0.1A
    • Accuracy: 2% ± 5

    AC Voltage

    • Range: 1000V
    • Resolution: 0.1V (≤600V); 1V (≤1000V)
    • Accuracy: 1.5% ± 5 (20Hz to 500Hz)

    DC Voltage

    • Range: 1000V
    • Resolution: 0.1V (≤600V); 1V (≤1000V)
    • Accuracy: 1% ± 5

    DC Voltage mV

    • Range: 500.0mV
    • Resolution: 0.1mV
    • Accuracy: 1% ± 5

    Resistance

    • Range: 60kΩ
    • Resolution: 0.1Ω (≤600Ω); 1Ω (≤6000Ω); 10Ω (≤60kΩ)
    • Accuracy: 1% ± 5

    Capacitance

    • Range: 1000µF
    • Resolution: 0.1µF (≤100µF); 1µF (≤1000µF)
    • Accuracy: 1% ± 4

    Frequency

    • Range: 5 to 500Hz
    • Resolution: 0.1Hz
    • Accuracy: 0.5% ± 5
    • Trigger level: 5Hz to 10Hz, ≥10A; 10Hz to 100Hz, ≥5A; 100Hz to 500Hz, ≥10A

    General

    • Max voltage: 1000V
    • Batteries: 2 x AA
    • Operating temperature: -10˚C to +50˚C
    • Storage temperature: -40˚C to +60˚C
    • Operating humidity: Non condensing (<10˚C); ≤90% (10˚C to 30˚C); ≤75% (30˚C to 40˚C); ≤45% (40˚C to 50˚C)
    • Operating altitude: 2000m
    • Storage altitude: 12000m
    • Dimensions: 249mm x 85mm x 45mm
    • Weight: 410g
    • Jaw opening: 34mm
    • Safety: IEC 61010-2-032 Cat III 1000V, Cat IV to 600V; IEC 61010-2-033 Cat III 1000V, Cat IV to 600V

    Fluke Connect

    • Fluke Connect is compatible with iOS 8 or above and Android 4.4 or above
  • Supplied Accessories

    • Fluke 375 FC True RMS AC/DC Clamp Meter
    • Instruction booklet for Fluke 375 FC True RMS AC/DC Clamp Meter
    • Red/black test leads
    • Soft carry carry case
