Kane 958 Link Flue Gas Analyser COM-CAT Kit

SKU: KANE958COMCAT
  • Industry-leading Flue Gas Analyser that has been well designed for use in a range of environments
  • The COM-CAT Kit includes a KANE-DTHA2 Airflow, Temp & RH probe, as well as a 20128 extender
  • The FGA is also supplied with a KANE IRP-3 Infrared Printer and a 14102/2 Carry Case
  • Qualifies for KANE CARE after sales support
More Info
£1,690.80 £1,409.00
In Stock - Available Next Day
Choose Your Free Gift

Kane 958 Link Flue Gas Analyser COM-CAT Kit

The Kane 958 Link Flue Gas Analyser is a highly-accurate yet simple-to-use instrument designed for flue gas analysis, with upgradeable sensor technology paving the way for effective results. The analyser can be used in domestic, commercial or industrial boilers up to 5mW, which allows the user perform combustion performance and efficiency checks with confidence and ease. The 958 has direct CO & CO2 sensor protection, and has been designed to offer a wide range of measurements, ensuring maximum versatility on the job site. The measurements are as follows:

  • O2 0-21% ppm
  • CO 0-10,000ppm H2 compensated
  • Differential temperature
  • High accuracy differential pressure meter +/-160mbar
  • NO 0-5,000ppm (option)
  • NO2 0-1,000ppm (option)
  • High Range CO 0-10% (option)
  • SO2 0-5,000ppm (option)

You can also select any of the above options to purchase additional sensors for the Kane 958, which can enhance the abilities of the instrument. Another key benefit of the 958 is the ability to test on different fuel types, which are the following: Natural gas, butane, biogas, wood pellets, LPG, light oil, heavy oil, coke, propane, and coal.

All you need to know about servicing and calibration for this analyser

At Test Meter, we understand that choosing a new Flue Gas Analyser is not only about the cost of the analyser, but also about the cost and practicality for annual calibration and service. We've put together a useful guide that highlights all you need to know about calibration of this analyser with cost of ownership, locations of service centres in the UK and much more.

Click here to read about servicing and calibration for Kane analysers.

The Kane 958 with COM-CAT Kit

The Kane 958 is available to purchase on its own, or as part of multiple kits that specifically suit the needs of users. The COM-CAT Kit includes an Infrared Printer (KANE IRP-3), a 14102/2 Carry Case for safe transportation, a KANE-DTHA2 Airflow, Temp & RH Probe, as well as a 20128 extender. This kit has been specifically designed to meet the needs of the user with a wide range of accurate accessories.

Kane Link

Kane Link is an exciting and unique software which allows the transfer and saving of readings from your analyser, via wireless Kane Link probes. This allows the user to performs tasks simultaneously, such as testing boilers & bathroom water temperatures and testing heat pumps & underfloor heating.

Any compatible Kane product can be wirelessly connected to other Kane Link-enabled products, leaving the user free to collate their results on the same device.

Kane Live & Printer Apps

The Kane Live App is compatible with Android Devices, and is free to download from the Play Store. The app is highly-beneficial for anyone who has a Flue Gas Analyser, as it allows the user to view their test results as they are recorded, and allows them to be tagged with real time GPS data.

The Kane Printer App is compatible with both Android and iOS, and is free to download from both the Play & App Store. Users can quickly connect to their analyser and view results, and then email them to whoever requires them. Each test location can be logged through GPS, with customisable notes able to be placed over images.

Kane Care

This product qualifies for Kane Care after sales support, guaranteeing you a 10 year 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns. For more information please visit Kane.co.uk.

Key Features

  • Supplied with KANE-DTHA2 Airflow, Temp & RH Probe
  • Also comes with a KANE IRP-3, 14102/2 Carry Case, and a 20128 Extender
  • CO sensor purge pump protection
  • Incorporated wireless connection
  • Fully upgraded sensor
  • Kane Link enabled
  • Perform CO safety checks in or around rooms & appliances
  • Suitable for industrial and marine boilers/engines
  • Ideal for Commission testing
  • Capable of Combustion performance checks
  • Capable of Combustion efficiency checks
  • Hydrogen (H2) ready up to 20% blend
  • Suitable for Flue Draughts
  • Calculates CO/CO2 ratio, C02, excess air & NOx with optional sensor
  • Measures CO in a range of 0 to 21%
  • 02 measurements in a range of 0 to 21%
  • Measures high accuracy differential pressure meter +/- 160mbar
  • Measures differential temperature
  • Optional sensors measure: NO 0-5000ppm/ NO2 0-1000ppm/ High Range C0 0-10%/ S02 0-5000ppm
  • Suitable for several fuel types including natural gas, propane & wood pellets
  • Features tactile rotary dial
  • Large 6 line display
  • Includes Data hold & log functions
  • Print user details with optional printer
  • Compatible with Kane apps
  • Kane 10 Year Warranty

What's In The Box?

  • Kane 958 Flue Gas Analyser

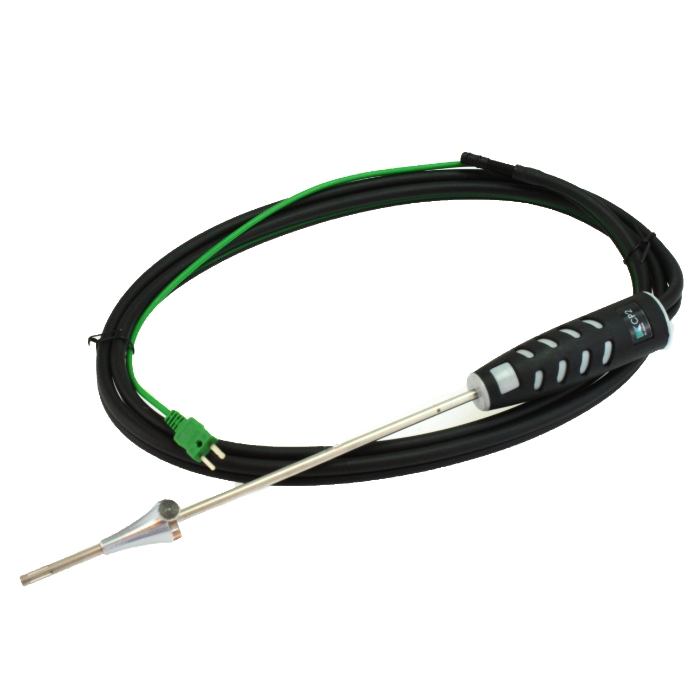

  • CP2T Combustion Probe
  • USB Charger
  • KANE IRP-3
  • 14102/2 Carry Case
  • KANE-DTHA2 Airflow, Temp & RH Probe
  • 20128 Extender
Specification

Measures

  • 02 0-21% ppm
  • CO 0-10,000ppm H2compensated
  • Differential Temperature
  • High accuracy differential pressure meter +/- 160mbar
  • NO 0-5,000ppm (option)
  • NO2 0-1,000ppm (option)
  • High Range CO 0-10% (option)
  • SO2 0-5,000ppm (option)
