Kane 958 Link Commercial Flue Gas Analyser Standard Kit

SKU: KANE958STDKIT
  • CO measurement from 0 to 10,000ppm with purge pump protection system
  • Designed for domestic, industrial & commercial boilers up to 5MW
  • Kit includes Kane IRP-3 Wireless Printer, CP2T Combustion Probe & Backpack
  • Qualifies for KANE CARE after sales support
More Info
£1,170.00 £975.00
In Stock - Available Next Day
Choose Your Free Gift

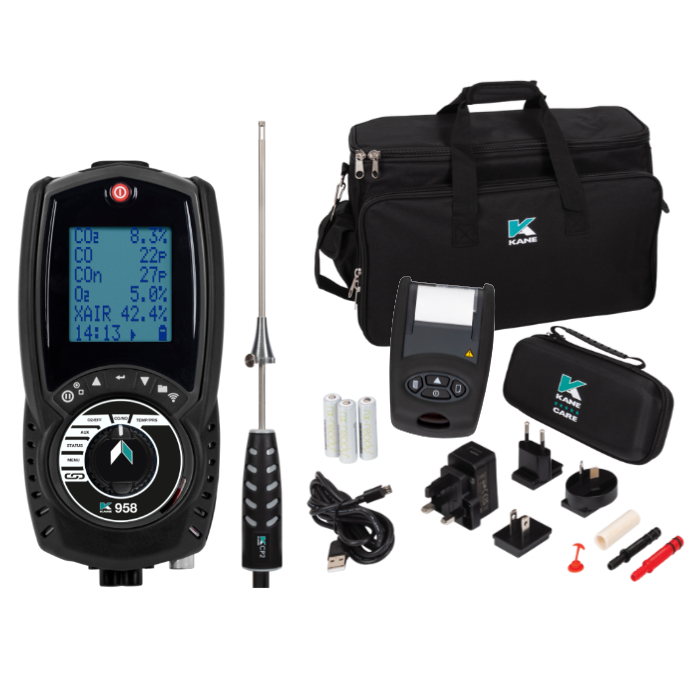

Kane 958 Link Commercial Flue Gas Analyser Standard Kit

The Kane 958 Link Commercial Flue Gas Analyser Standard Kit combines the standard analyser and probe with a Kane IRP-3 Wireless Printer. Suitable for domestic, commercial & industrial boilers up to 5MW the 958 is ideal for commissioning and servicing tasks. Use this instrument to perform CO safety checks in rooms or around appliances, combustion performance and efficiency checks or complete jobs involving flue draughts, marine boilers & engines. With additional sensors available, operators can calculate CO2, excess air, CO/CO2 ratio and NOx all whilst the incorporated purge pump provides direct CO, CO2 & CO sensor protection. In order to attain reliable results, this Combustion Flue Gas Analyser performs the following measurements:

  • O2 0-21% ppm
  • CO 0-10,000ppm H2 compensated
  • Differential temperature
  • High accuracy differential pressure meter +/- 160mbar
  • NO 0-5,000ppm (option)
  • NO2 0-1,000ppm (option)
  • High Range CO 0-10 % (option)
  • SO2 0-5,000ppm (option)

Incorporating wireless connectivity as standard, the Kane 958 Flue Gas Analyser features the latest in upgradeable sensor technology. Highly versatile, this analyser is compatible with the following fuel types:

  • Natural Gas
  • Butane
  • Biogas
  • Wood pellets
  • LPG
  • Light oil
  • Heavy oil
  • Coke
  • Propane
  • Coal

Encased in a robust shell, the Kane 958 displays up to six readings simultaneously on a large, easy-to-read screen. This smart device includes a tactile rotary dial and connection to an infrared printer through the built-in wireless connectivity. The 958 features data hold, log and print functions & a built-in Worklight for use in low-light conditions. This commercial Flue Gas Analyser Standard Kit is supported by the incredible Kane Care 10 Year Warranty.

Kane Link

Future proof your flue gas analyser with the incredible Kane Link feature, available as standard on all Kane 458s, 958 & 988 analysers. As you take on bigger and bolder jobs, remain safe in the knowledge your Kane Flue Gas Analyser can handle whatever comes along. Even with the implementation of advanced systems such as Ground Source Heat Pumps and Hydrogen Boilers across the UK, thanks to Kane Link your Flue Gas Analyser will never be left behind.

Wirelessly connect any compatible Kane product which also features Kane Link, allowing you and your analyser to easily balance heating systems, check A/C units or kitchen fans, test rooms for CO and so much more. With Kane Link you're free to gather all information on the same device, your personal Kane Flue Gas Analyser. Kane Link enabled instruments currently include:

These Kane Link enabled analysers are not only built for harsh on-site conditions, should damage occur they are eligible for the amazing after care provided directly from Kane.

Kane Live & Printer Apps

For further increased functionality, select to add the optional Wireless Module from the check box above and relay information directly to the Kane Live & Printer apps. Analysers MUST have a wireless module fitted to be compatible.

The Kane Live App is compatible with Android Devices and free from the Play Store. This multilingual App includes several extremely useful features beneficial for anyone with a Flue Gas Analyser. See your test results live on your smart device and even tag them with real-time GPS data & printouts all while still physically on site. Printouts can be shared along with downloaded analyser logs as CSV files, with analyser user details amendable within the App itself.

The Kane Printer App is compatible with Android/iOS and is free from both the Play & App Store. With this app users can quickly connect to their analyser and view test results before emailing them to their contacts. Log each test location via GPS then save printouts to edit before transfer. Fully customise personal notes even in poor lighting conditions as a useful NightMode is incorporated within the app.

Kane Care

This product qualifies for Kane Care after sales support, guaranteeing you a 10 year 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns. For more information please visit Kane.co.uk.

All you need to know about servicing and calibration for this analyser

At Test Meter, we understand that choosing a new Flue Gas Analyser is not only about the cost of the analyser, but also about the cost and practicality for annual calibration and service. We've put together a useful guide that highlights all you need to know about calibration of this analyser with cost of ownership, locations of service centres in the UK and much more.

Click here to read about servicing and calibration for Kane analysers.

Key Features

  • CO sensor purge pump protection
  • Incorporated wireless connection
  • Fully upgradeable sensor
  • Kane Link enabled
  • Kit comes complete with IRP-3 Wireless Printer & Backpack
  • Perform CO safety checks in or around rooms & appliances
  • Suitable for industrial and marine boilers / engines
  • Ideal for Commission testing
  • Capable of Combustion performance checks
  • Capable of Combustion efficiency checks
  • Hydrogen (H2) ready up to 20% blend
  • Suitable for Flue Draughts
  • Calculates CO/CO2 ratio, CO2, excess air & NOx with optional sensor
  • Measures CO in a range of 0 to 10,000ppm
  • 02 measurements in a range of 0 to 21%
  • Measures high accuracy differential pressure meter +/- 160mbar
  • Measures differential temperature
  • Optional sensors measure: NO 0-5,000ppm / NO2 0-1,000ppm / High Range CO 0-10% / SO2 0-5,000ppm
  • Suitable for several fuel types including natural gas, propane & wood pellets
  • Features tactile rotary dial
  • Large 6 line display
  • Includes Data hold & log functions
  • Print user details with optional printer
  • Compatible with Kane Apps
  • Kane 10 Year Warranty

Kane part number: 958

* Selecting any additional filters may affect lead times

Kane 958 Combustion Flue Gas Analyser Kit Comparison Table

The Kane 958 Industrial Flue Gas Analyser is also available in a range of impressive kits.

  Standalone Analyser Standard Kit PRO Kit Oil Kit
Wireless Connectivity
FGA CP2 Probe
Pressure Connectors
CO Sensor Purge Pump Protection
KANE IRP-3 Infra-red printer -
GLD Gas Leak Detector - - -
KAL1 & KPCP Pipe Clamp Temperature Probes - - 2 -
HARHOSE Pressure tubing - - -
KANEMSP & SP9 Smoke Pump & Papers - - -
Oil pressure test set - - -
Calibration Report
Backpack

What's In The Box?

  • Kane 958 Commercial Flue Gas Analyser
  • CP2T Combustion Probe
  • IRP-3 Printer
  • Pressure Connectors
  • USB Charger
  • Pressure Hose
  • Quick reference guide & analyser calibration certificate
  • Backpack
