Kewtech EZYPAT Plus PAT Tester

SKU: KEWTEZYPATPLUS
  • A battery-powered PAT tester that performs load and run testing (110V & 230V)
  • Options for 5s continuity testing and 250V insulation resistance testing
  • Simple to use with clearly-labelled automatic test sequences
More Info
In Stock - Available Next Day
Choose Your Free Gift

Kewtech EZYPAT Plus PAT Tester

The Kewtech EZYPAT Plus PAT Tester can perform a range of useful PAT testing functions including load and run testing at 230V and 110V. It is the only battery-powered tester that offers load and run testing which is extremely useful for situations where a mains-powered tester would be impractical. Load and run testing constitutes an important method of testing handheld appliances and the tester is equally at home testing 230V domestic appliances as 110V power tools.

The continuity test function on the Kewtech EZYPAT Plus uses a 200mA test current (safe for IT) and can be extended to a five second test if needed. The insulation resistance test uses a 500V or 250V test voltage which allows testing on surge-protected extension leads. The tester is also capable of substitute leakage measurement and polarity checking on extension leads. A null function also cancels out the resistance of test leads for increased accuracy.

Results for all testing functions are clearly displayed on the Kewtech EZYPAT Plus’ backlit LCD screen alongside a PASS/FAIL indication. The screen glows green to indicate a PASS, red to indicate a FAIL so the overall result is immediately apparent and a blue screen shows that a test is being performed.. There are clearly labelled buttons that initiate automatic test sequences on Class I appliances, Class II appliances and extension leads.

The Kewtech EZYPAT Plus comes with an extension lead adaptor, test lead, test probe and crocodile clip in addition to a handy carry case. Its compact design makes it easy to transport and it meets all pertinent standards. The Kewtech EZYPAT Plus allows users to perform up to 1500 tests on one set of batteries.

KEWPAT App

The Ezypat Plus is manually compatible with the KEWPAT app, providing users with storage for testing and generating reports. Users are also able to register their device on the free APP.

Kewtech part number: EZYPAT PLUS

Key Features

  • Earth bond continuity test
  • Insulation resistance test (250V & 500V)
  • Battery powered
  • 110V & 230V load and run testing
  • Backlit LCD display with red/green indication
  • Automatic test sequences
  • Class I, Class II, extension leads
  EZYPAT EZYPAT Plus SMARTPAT
200mA continuity test
250V Insulation Test
500V Insulation Test
Substitute Leakage Measurement
Polarity Check
110V Load and Run Test
230V Load and Run Test
Portable RCD Test
Compatible with KEWPAT App
Customisable Test Sequences

What's In The Box?

  • Kewtech EZYPAT Plus PAT Tester

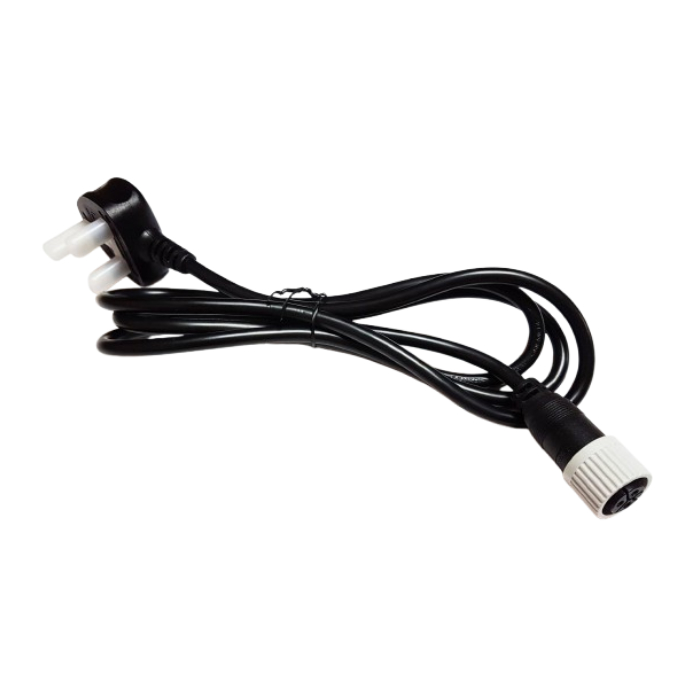

  • Mains leads
  • Earth lead with probe and croc clip
  • Extension lead adapter
  • Carry bag with strap
  • Quickstart manual
  • End of line Cal Cert
Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Mains Voltage

  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V; 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A / > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • Max. rating: 3 kVA max., 15 sec. cont. / -
Label Type Size Download
pdf Kewtech EZYPAT Plus PAT Tester Datasheet pdf 181.3 KB Download
Kit Option

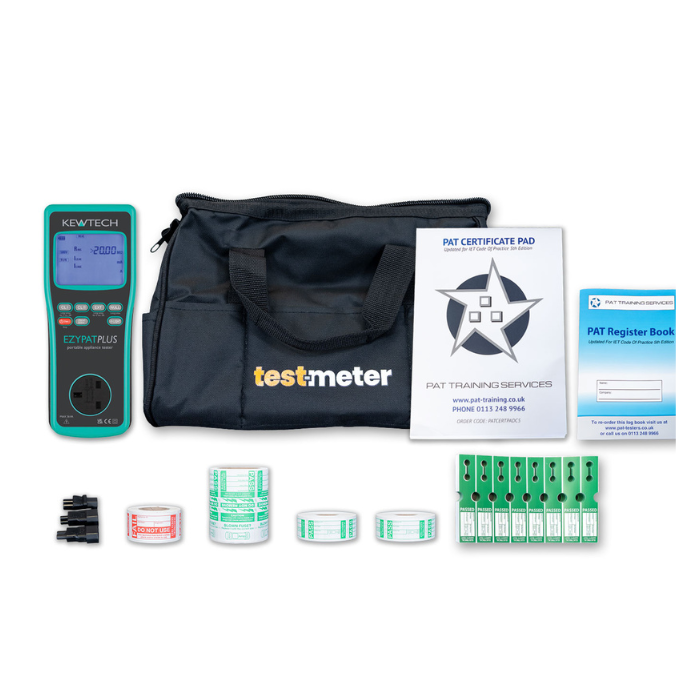

Kewtech EZYPAT Plus PAT Test Kit A
