Martindale CM55 AC Clamp Meter

Be the first to review this product

  • Measures AC current from 0 to 400A with 0.01A resolution and ±1.9% accuracy
  • AC/DC voltage measurement from 0 to 600V and resistance range from 0 to 400Ω
  • Maximum clamping diameter of ø25mm via sprung jaw clamp

rrp £85.00

now £59.50 (Ex. VAT) £71.40 (Inc. VAT)

rrp £85.00

OR

Please select a free gift below.

  • Description

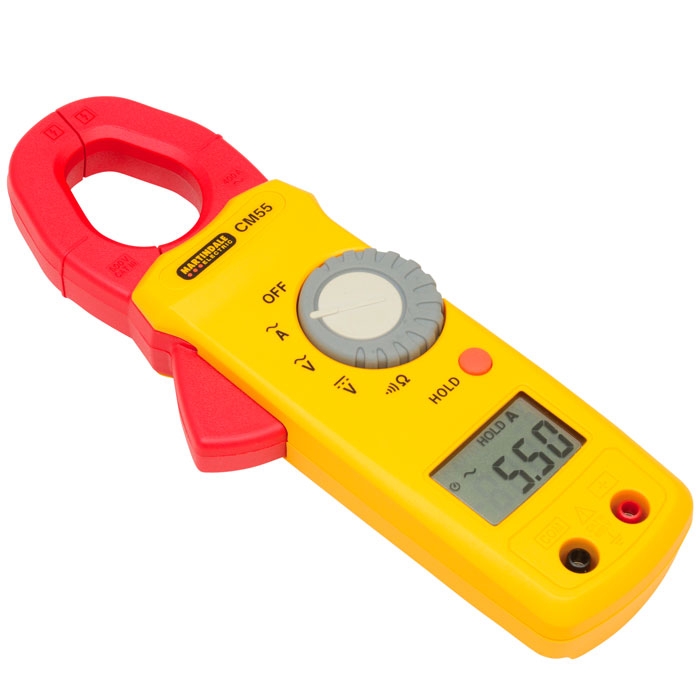

    Martindale CM55 AC Clamp Meter

    The Martindale CM55 AC Clamp Meter is a basic clamp meter that can measure AC current from 0 to 400A, AC/DC voltage from 0 to 600V and resistance from 0 to 400Ω as well as performing a continuity test. The movable jaws can clamp around conductors with a maximum diameter of ø25mm and all the readings are provided with a high degree of accuracy (±1.9% ± 3 for current) and excellent resolution (±0.01A for current).

    The measurement function is selected using the simple thumb dial and a trigger that opens and closes the sprung clamps. Readings are displayed on the digital LCD screen and it has a display hold function which freezes the reading on screen. The unit is supplied with TL16 test leads and a soft case and is rated as Cat III 600V.

    Martindale part number: MARCM55

    Key Features

    • AC current range: 0 to 400A
    • AC current accuracy: ±1.9% ± 3
    • AC current resolution: ±0.01A
    • AC/DC voltage range: 0 to 600V
    • Resistance range: 0 to 400Ω
    • Continuity test
    • Clamping diameter: ø25mm
    • LCD display
    • Cat III 600V
    • Two-year warranty



  • Specification

    AC Current

    • AC A: 40.00A / 400.0A (50-400Hz)
    • Accuracy: ± 1.9% ± 3dgt (50-60Hz)

    AC Volts

    • 400.0V / 600V (50-400Hz)
    • Accuracy: ± 1.9% ± 3dgt (50-60Hz)

    DC Volts

    • 400.0V / 600V
    • Accuracy: ±1% ± 2dgt

    Ohms

    • 400.0Ω
    • Accuracy: ± 1% ± 2dgt
    • Continuity: buzzer ≤ 25Ω

    Max Conductor

    • 25mm Ø

    General Specifications

    • Operating environment: 0°C to 40°C, <80% RH
    • Safety CAT III 600V
    • Power: 2 x 1.5V AAA
    • Weight: 260g approx.
    • Dimensions: 203 x 75 x 32mm
  • Supplied Accessories

    • Martindale CM55 AC Clamp Meter
    • Test leads (TL16)
    • Soft case
    • 2 x AAA batteries
    • Instruction manual for Martindale CM55
