Megger MPQ1000 Handheld Three-Phase Power Quality Analyser

Be the first to review this product

  • Measures 24 parameters to IEC61000-4-30 Class A standard
  • Scope and DMM modes for real-time data viewing
  • On-board data analysis plus enormous SD-card memory

rrp £4,615.00

now £4,115.00 (Ex. VAT) £4,938.00 (Inc. VAT)

rrp £4,615.00

* Required Fields

Please select a free gift below.

"Powerful datalogging in an ergonomic, handheld analyser"

  • Description

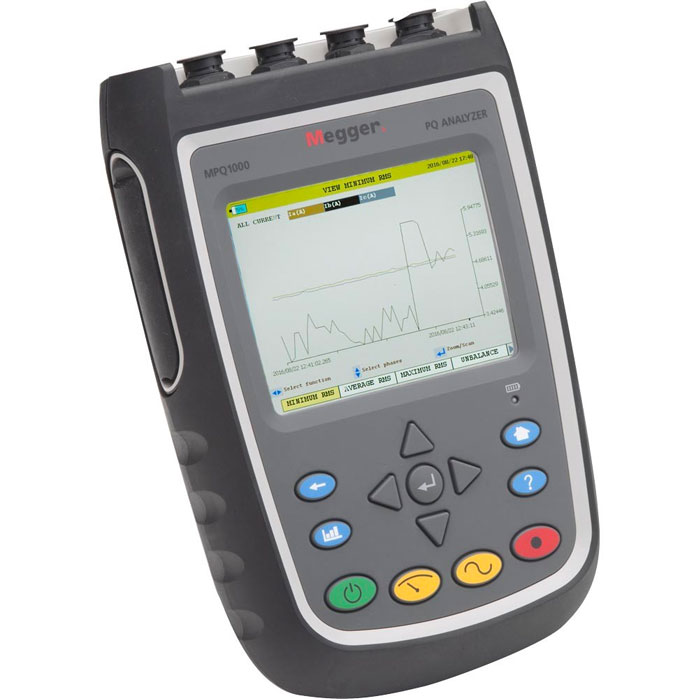

    Megger MPQ1000 Handheld Three-Phase Power Quality Analyser

    The Megger MPQ1000 Handheld Power Quality Analyser is an incredibly powerful datalogging device that fits in the palm of the user’s hand. As a three-phase analyser, it can assess over 20 different aspects of three-phase systems including RMS voltage/current, waveforms, demand data, harmonics, flicker, and unbalance. Class A categorisation certifies the accuracy and reliability of all readings. Such impressive capabilities make it suitable for applications ranging from energy usage verification to compliance testing and from motor inspections to troubleshooting on lighting.

    To help the user make the most out of its sophisticated measurement, the Megger MPQ1000 has several features which facilitate the inspection process. The datalogger automatically recognises the attached probe so it is impossible to measure with an inappropriate range. Furthermore, all attachments are powered by the unit itself, thus avoiding the need for cumbersome additional connections. Connection verification makes sure that the unit is correctly configured and connected at all times. Examples of parameter-specific innovations include timed waveform capture for concurrent recording of PQ events and periodic waveforms as well as phase angle stability measurement to help diagnose the multiple, intermittent causes behind phasing problems.

    Large measurement ranges for both AC voltage (1000V) and DC voltage (1000V) mean that the Megger MPQ1000 usually needs no additional instrument for taking measurements, even on complicated circuits, whilst a Cat IV 600V rating ensures it is safe to use on the vast majority of systems. The user can view real-time readings on the colour VGM screen in scope and DVM modes whilst complete records for any parameter can be saved to the device’s large SD-card memory. Improving storage capacity is as simple as switching to a larger SD.

    Once data are recorded, there are a range of options for data transfer including SD-card, USB or Ethernet but it is also possible to carry out advanced analysis on the Megger MPQ1000 itself. Should the user choose to transfer the data over to a computer he/she will benefit from supplied Megger PQ Power Quality Analysis software to help analyse, edit and report findings.

    Operating the Megger MPQ1000 is very easy thanks to its intuitive menus and simple measurement processes. Smart configuration is provided with the supplied software so setting up the datalogger is very easy. With a light, ergonomic design, the Megger MPQ1000 is an excellent combination of immense measurement capacity coupled with handheld practicality. Selecting the MPQ1000 Plus Kit in the menu above adds three CP-100CE-ID 100A Split Core current clamps to your purchase alongside the voltage leads, software, 32GB SD card, power adaptor, soft case, fused adapters and hanging strap from the basic kit.

    Megger part number: MPQ1000

    Key Features

    • Measures 24 different parameters
    • Three-phase analyser for three-phase systems
    • Ergonomic, handheld design
    • Colour VGA screen
    • Real-time readings or data recording
    • 32GB SD card included
    • Data transfer via SD, USB or Ethernet
    • Analysis software included as standard
    • 1000V ranges for AC/DC voltage
    • Huge range of possible applications
    • Automatic CT recognition
    • Powers all CTs
    • Connection verification
    • Colour VGA screen
    • Intuitive operation
    • 1-year warranty
  • Specification

    Input Power

    • 120/240 V, 50/60 Hz

    Battery

    • NiMH battery pack

    • Discharge time – up to 8 hours
    • Recharge time – 2 hours

    Data storage

    • External SD card (32GB max)

    Communication

    • USB communications

    • Ethernet communications

    • USB stick for data and cofiguration file transfer
    • SD card for direct data transfer

    Environmental

    • Operating: -20° C to 50° C (-4° F to 122° F)
    • Storage: -30° C to 60° C (-22° F to +140° F)
    • Relative humidity: 0-95% non-condensing

    Case

    • IP54 enclosure

    Display

    • Backlit 11.5 cm x 8.5 cm color VGA

    Power Factor

    • Accuracy: ±0.02 + CT error

    Compliance

    • Safety/EMC/Vibration
    • IEC61000-4-15
    • IEC61010-1
    • IEC61000-4-30

    • IEC61000-4-27

    • IEC61326

    • IEC60529
    • MIL-STD-810-G
    • IEEE1453
    • CAN/CSA-C22.2 No. 1010.1-92
    •
RoHS2 Directive 2011/65/EU

    Dimensions

    • 75 mm x 250 mm x 60 mm (6.89 in. x 9.85 in. x 2.36 in.)

    Weight

    • Standard unit: 1.82 kg (4 lbs)

    Voltage Channels

    • 4 voltage channels
    • Voltage range: 0 to 1000 V AC / 0 – 1000 V DC
    • Voltage accuracy: 0.1% of reading
    • Resolution:
16 bit

    • Crest factor: 1.5

    Current Channels

    • 4 current channels
    • Current range: 0 to 6000 A (CT dependent)
    • Current accuracy: 0.1% of reading + CT
    • Resolution:
16 bit
    • Crest factor:
4.0

    Sampling Rate

    • 256 samples per cycle RMS. 1 MHz transient sampling rate.

    Real Time Clock

    • Accuracy ±20 ppm

    Measurement Parameters

    • RMS voltage

    • RMS current

    • Sags / dips / swells
    •
Transients (1 msec) (±2697 V)
    •
Sub-cycle events 64 msec (notching, noise)
    • Rapid voltage change

    • Phase angle stability
    •
IEC Unbalance
    •
ANSII Unbalance

    • Power (KW, KVAR, KVA, DPF & TPF)
    • Energy (KWH, KVARH & KVAH)

    • Power Factor (1 to 0 to -1)

    • Phase Angle
    •
THD/TDD

    • Harmonics

    • Inter-Harmonics

    • Power Harmonics
    •
Harmonic Direction

    • Flicker

    • Waveform Capture

    • Frequency

    Software

    • Windows compliant (Win 7, Win 8 and Win 10)
  • Supplied Accessories

    Basic Kit

    • Megger MPQ1000 Three-Phase Power Quality Analyser
    • Voltage leads, SD Card
    • USB cable
    • Ethernet cable
    • Universal power adaptor
    • Soft sided carry bag
    • Fused adapters
    • Hanging strap

    Plus Kit

    • All of the above plus three CP-100CE-ID Self Identifying 100A Split Core Current Clamps
