Sofamel ELBT-PAT/CC (For Low Voltage Overhead Lines)

Be the first to review this product

  • Specifically designed to protect an operator working with low voltage overhead lines
  • PEBT clamps with 70cm poles compatible with conductors 3 to 18mm in diameter
  • Spring clamp mechanism establishes constant contact with conductor
(Ex. VAT) £502.00 (Inc. VAT) £602.40
OR

Please select a free gift below.

  • Description

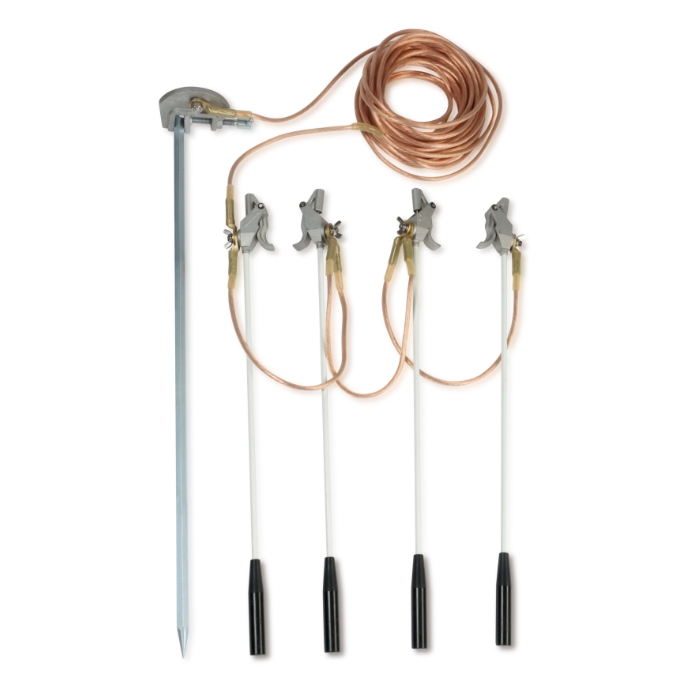

    Sofamel ELBT-PAT/CC (For Low Voltage Overhead Lines)

    The Sofamel ELBT-PAT/CC for low voltage overhead lines, secures electrical engineers against the hazardous potential of an unrequested voltage return during repair operations. Prioritising user safety, this earthing & short-circuit is certified according to the IEC 61230 standard and functional in a short circuit up to a maximum 4KA/1s.

    Consistent contact with a bare conductor is assured by the ELBT-PATT/CC spring loaded clamps, for cylindrical conductors with a diameter between 3 and 18mm. Practicality is furthered by the inclusion of a TT-38A milling earthing lathe, an earthing rod and 3 copper cables with PVC insulation.

    Sofamel part number: ELBT-PAT/CC

  • Supplied Accessories

    • 1 x ELBT-PAT/CC Short-Circuit Equipment
    • 4 x PEBT spring clamps with 70cm poles
    • 3 x Copper cables with PVC insulation of 16mm² section (0.6m long)
    • 1 X Copper cable with PVC insulation of 16mm² section (15m long)
    • 1 x TT-38A milling earthing lathe
    • 1 x Earthing rod
    • 2 x Nylon bags
  • Product Documents

    Product Attachments

    View FileELBT-PAT/CC Earthing and Short-Circuit Equipment Datasheet    Size: (1.84 MB)
    View FileELBT-PAT/CC Earthing and Short-Circuit Equipment Catalogue Information    Size: (993.81 KB)
