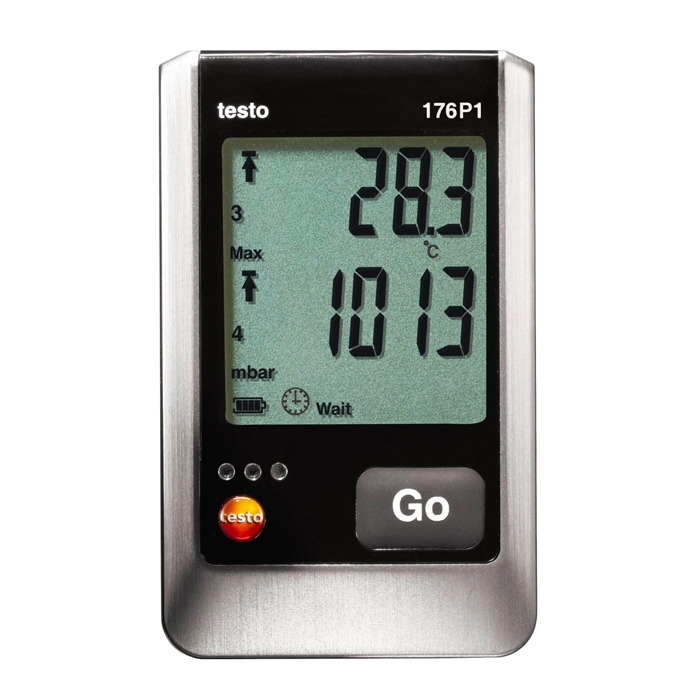

Testo 176-P1 Pressure, Temperature and Humidity Data Logger

Testo
SKU: TESTO176P1
  • Monitors absolute pressure, temperature and humidity in sensitive environments
  • Features internal pressure sensor with connections for NTC or humidity probes
  • Long eight-year battery life and large memory for 2 million readings
More Info
Typically ships in 2-4 working days

Testo 176-P1 Pressure, Temperature and Humidity Data Logger

The Testo 176-P1 Pressure, Temperature and Humidity Data Logger is a comprehensive environmental monitor. It has an internal pressure sensor which measures absolute pressure from 600 to 1100mbar with ±3mbar accuracy whilst temperature and humidity are measured via external probes. An NTC probe can measure air temperature between -20˚C to 70˚C and a humidity sensor can measure between 0 and 100% RH but these probes are not included as standard with the monitor. The measurement capabilities make the Testo 176-P1 ideal for monitoring environmental conditions where they are vital.

Current readings for temperature, pressure and humidity are shown on the Testo 176-P1’s large digital display so the user can get a quick overview of conditions at a glance. The measurement rate can be set to update at different rates between once a second and once a day and up to 2 million readings can be saved to the large internal memory. Readings can be downloaded to a PC using a USB cable or an SD card although these are not included as standard. A free Testo ComSoft software package can be used to analyse and report findings from a PC.

The lithium battery has an eight-year life so the Testo 176-P1 can operate independently once installed. The IP54 ingress protection rating means it is resistant to corrosion and a lock is provided so data cannot be accessed by unauthorised individuals. Other accessories include a wall bracket and calibration protocol.

Testo part number: 0572 1767

Key Features

  • Connects to NTC and humidity sensor
  • Internal pressure sensor
  • Dual-channel measurement
  • Temperature range: -20˚C to 70˚C
  • Humidity range: 0 to 100%
  • Internal memory: 2 million values
  • SD-card and USB ports
  • Battery life: 8 years
  • IP68-rated
  • Impact resistant

What's In The Box?

  • Testo 176-P1 Pressure, Temperature and Humidity Data Logger
  • Instructions for Testo 176-P1
  • Wall holder
  • Lock
  • Battery
  • Calibration protocol
Specification

Temperature - NTC

  • Measuring range: -20 to +70 °C
  • Accuracy: ±0.2 °C (-20 to +70 °C); ±0.4 °C (Remaining Range)
  • Resolution: 0.1 °C

Humidity - Capacitive

  • Measuring range: 0 to 100 %RH*
  • Accuracy: Dependent on probe selected
  • Resolution: 0.1 %RH

* Not for condensing atmospheres. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h), please contact us via our website.

Absolute Pressure

  • Measuring range: 600 to 1100 mbar
  • Accuracy: ±3 mbar (0 to +50 °C)
  • Resolution: 1 mbar

General technical data

  • Dimensions: 103 x 63 x 33 mm
  • Operating temperature: -20 to +70 °C
  • Protection class: IP54
  • Channels: 1 internal; 4 external
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years at 15 min. meas. rate
  • Memory: 2,000,000 measuring values
  • Storage temperature: -40 to +85 °C
