Testo 735-2 Multi-Channel Thermometer

Testo
SKU: TESTO7352
  • Connects to radio and conventional probes (Pt100, type K, T, J, S)
  • 10,000-reading internal storage saved under maximum of 99 sites
  • Large screen can show min, max, average and delta T readings
More Info
Typically ships in 2-4 working days

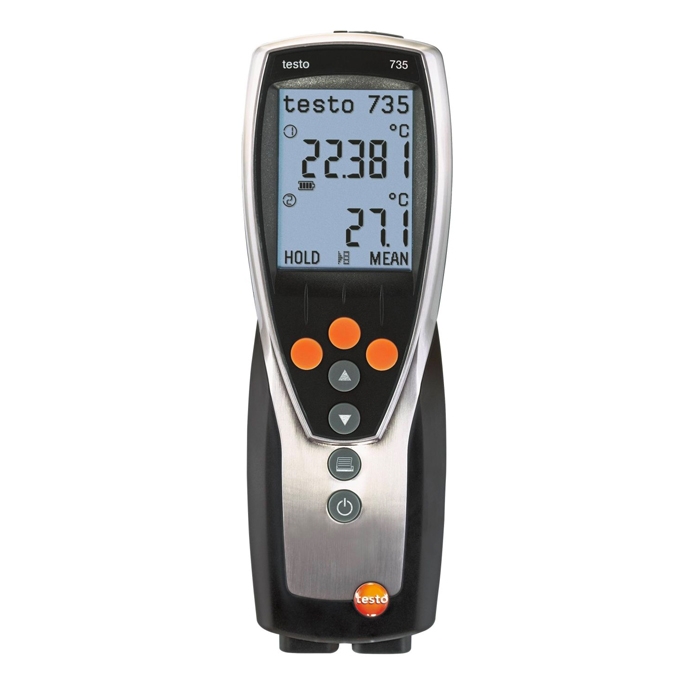

Testo 735-2 Multi-Channel Thermometer

The Testo 735-2 Multi-Channel Thermometer works with a wide range of probes (Pt100, type K, T, J, S) via three channels to measure temperature in a range of media. It has a maximum temperature range of -200˚C to 1760˚C whilst best accuracy of ±0.05˚C and a best precision of 0.001˚C can be achieved with a Pt100 probe. Please note that probes are not included as standard with the Testo 735-2 and that the meter is also capable of connecting to up to three radio probes simultaneously.

A large backlit digital screen can show delta T, minimum, maximum and average values from the Testo 735-2 and the user can switch easily between current readings from different probes. A data hold function freezes a reading on screen and an audible warning can be set to sound when adjustable limit values are exceeded.

The Testo 735-2 has internal memory for up to 10,000 readings saved under 99 sites in order to create an easily accessible database. Multiple user profiles allow individual operators to access the most important functions quickly and it is also possible to save individual measurement protocols with options for long-term datalogging.

An IP65 protection class certifies that the Testo 735-2 is waterproof and dust proof for user in challenging environments and it is fully compliant with EN 13485. It comes supplied with PC software, a USB cable, an AA battery and a calibration protocol.

Testo part number: 0563 7352

Key Features

  • Minimum temperature measurement: -200˚C
  • Max temperature measurement: 1760˚C
  • Compatible probes: Pt100, Type K, Type T, Type J, Type S
  • Three conventional inputs
  • Up to three wireless radio connections
  • 10,000-reading internal memory
  • USB cable and PC software provided
  • Best accuracy: ±0.05˚C (Pt100)
  • Best resolution: 0.001˚C (Pt100)
  • Min, max, mean and Delta T readings
  • IP65 ingress protection rated
  • EN13485-approved

What's In The Box?

  • Testo 735-2 Multi-Channel Thermometer
  • PC software
  • USB data transmission cable
  • Battery
  • Calibration protocol
  • Instructions for Testo 735-2
Specification

Temperature - Pt100

  • Measuring range: -200 to +800 °C
  • Accuracy: ±0.2 °C (-100 to +199.9 °C); ±0.2 % of mv (Remaining Range)
  • Resolution: 0.05 °C

Temperature - TC Type K (NiCr-Ni)

  • Measuring range: -200 to +1370 °C
  • Accuracy: ±0.3 °C (-60 to +60 °C); ±(0.2 °C + 0.3 % of mv) (Remaining Range)
  • Resolution: 0.1 °C

Temperature - TC Type T (Cu-CuNi)

  • Measuring range: -200 to +400 °C
  • Accuracy: ±0.3 °C (-60 to +60 °C); ±(0.2 °C + 0.3 % of mv) (Remaining Range)
  • Resolution: 0.1 °C

Temperature - TC Type J (Fe-CuNi)

  • Measuring range: -200 to +1000 °C
  • Accuracy: ±0.3 °C (-60 to +60 °C); ±(0.2 °C + 0.3 % of mv) (Remaining Range)
  • Resolution: 0.1 °C

Temperature - TC Type S (Pt10Rh-Pt)

  • Measuring range: 0 to +1760 °C
  • Accuracy: ±1 °C (0 to +1760 °C)
  • Resolution: 1 °C

General technical data

  • Dimensions: 220 x 74 x 46 mm
  • Operating temperature: -20 to +50 °C
  • Housing: ABS / TPE / Metal
  • Protection class: IP65
  • Standards: EN 13485
  • Battery type: Alkali manganese, mignon, type AA
  • Storage temperature: -30 to +70 °C
  • Weight: 428 g
