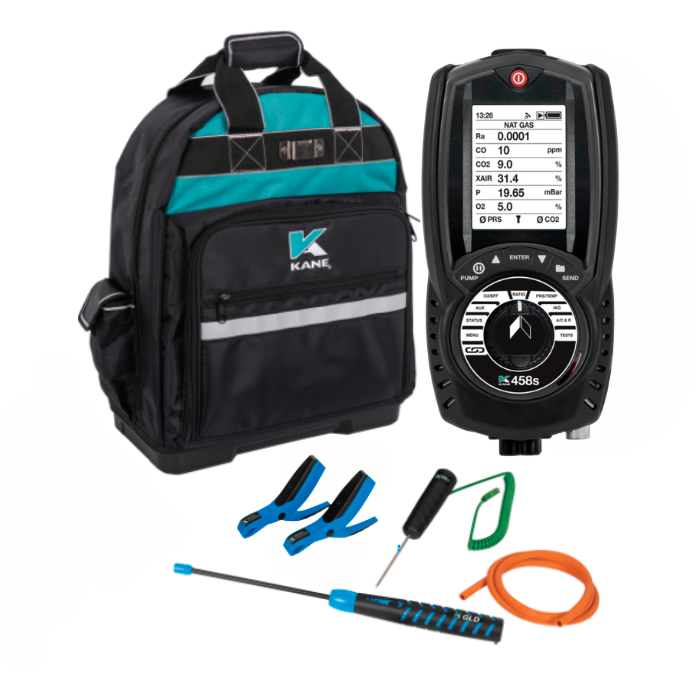

KANE 458s Link Flue Gas Analyser PRO Kit 2

Kane 458s Link Flue Gas Analyser PRO Kit 2

The Kane 458s Link Flue Gas Analyser PRO Kit 2 allows for the measurement collection of a wide range of variables including carbon monoxide (CO) concentration in flues, carbon dioxide (CO2), ambient CO build-up, differential pressure and temperature.

The KANE 458s Link Flue Gas Analyser PRO Kit 2 comes equipped with a number of useful instruments including the Kane IRP-3 wireless printer and Kane backlog, suitable for transporting the analyser and all accessories easily and safely. Two WPCP Wireless clamp-on pipe probes allowing for real time results to be shown on the analyser with data measurements being saved and sent via Bluetooth to a printer or smart device. Also included with the PRO kit 2 is a Kane KAL1 air liquid temperature probe and a GLD/450plus gas leak detector can detect combustible gases and other fluids, concentrations as small as 50ppm can be detected.

Kane 458s Flue Gas Analyser

The Kane 458s Flue Gas Analyser allows for the use of the flue gas analyser to conduct a number of aspects of combustions, including CO/CO2 ratio, oxygen content, excess air and efficiency and also tightness and let by. With wireless communication, the 458s is hydrogen (H2) ready (up to 20% blend) with a fully upgradable sensor. With the addition of an optional sensor that allows for the calculation of NO, NO2 SO2 and high range CO.

The Kane 458s is capable of detecting a number of different fuel types including natural gas, LPG, Wood pellets, butane, light oil and propane. With an innovative purge pump system that ensures the Kane 458s CO sensor is protected from over range. CO measurement function is deployed using the automatic boiler commissioning test sequence that allows the user to certify new boilers according to the requirements of Technical Bulletin 143. With a large screen showing six lines of text showing multiple test parameters with test results instantly available in a physical copy thanks to the included Kane IRP-3 Infrared Printer.

Kane Link

The Kane 458s is compatible with Kane Link, allowing for wireless connection to all Kane products which feature Kane Link. Kane Link will allow for the easy balancing of heating systems, check A/C units or kitchen fans, test rooms for CO and many more applications. Kane Link allows for the collection of data and store it on the same device,

Kane Live

The Kane Live App is compatible with Android devices and free to download from the Google Play store. The multilingual Lopo allows for test results to viewed in real time and tag them with real time GPS data and printouts even when on site. Printouts can be shared with colleagues or customers with downloaded analyser logs as CSV files

Kane 458s comparison table

The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:

Key Features

• Carbon monoxide measurement 0 to 20%
• Carbon dioxide measurement 0 to 2000ppm
• Kane IRP-3 infrared printer included
• KAL1 air liquid temperature probe included
• 2 x WPCP Wireless clamp-on pipe probes
• Analyser has built-in wireless communication
• Measures differential pressure and temperature
• Hydrogen ready (H2 up to 20% blend)
• Calculate CO/CO2 ratio
• Calculate oxygen content
• Calculate excess air
• Efficiency calculation
• Let by/tightness testing
• Automatic commissioning test sequence for boilers
• Purge pump system protects CO sensor from over range
• Suitable for wide variety of fuels
• 20106 Backpack
• Kane 10 Year Warranty

Kane part number: 458S Pro Kit 2

* Selecting any additional filters may affect lead times

Kane Flue Gas Analyser Series

The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. However the also available Kane 458 Combustion Flue Gas Analyser includes more advanced features such as CO safety checks and an optional NO sensor. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
