- The KANE 458s Link Flue Gas Analyser
- CP2T combustion probe
- USB charger
- Kane IRP-3 printer
- Kane79 CO meter
- CPS1 room CO test probe stand with carry bag
- Large Kane carry bag
- Kane 458s Flue gas analyser measures CO, CO2, differential pressure and other parameters
- Kit includes the Kane 79 Wireless Link CO monitor
- CPS1 room CO test probe stand with carry bag for safe CO room safety tests
- Qualifies for KANE CARE after sales support
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

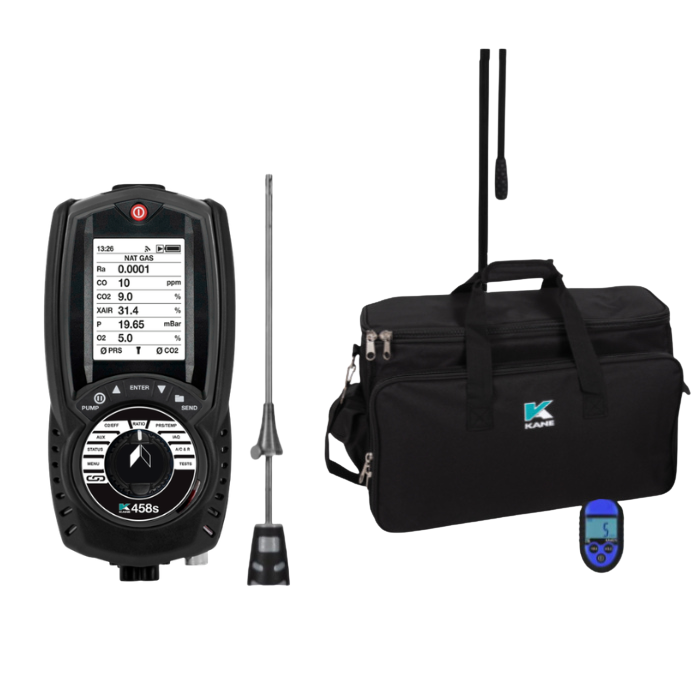

KANE 458s Link Flue Gas Analyser CMDDA1 Kit
The Kane 458s Link Flue Gas Analyser CMDDA1 Kit allows for the monitoring off ambient CO remotely thanks to the included a Kane79 Wireless link CO monitor, with wireless connectivity allowing up to four locations to be tested simultaneously, it is possible to purchase further units to enhance the testing capabilities of the CMDDA1 kit (the kit is supplied with one Kane79). The kit also includes a CPS1 Room CO Test probe with carry bag, designed to assist when CO room safety tests are being performed when testing for CO. The mounting bracket allows for the magnetic attachment of the analyser. The included Kane IRP-3 printer allows for wireless printing straight from the device.
Kane 458s Flue Gas Analyser
The 458s analyser is compatible with many common fuel types including natural gas, LPG, wood pellets, light oil, butane and propane, making it the ideal tool for measuring domestic and industrial appliances. The addition of ambient air quality sensors also makes this analyser a great choice for those working within fumes investigation and catering engineering. With a Kane 458s, functionality is seamless and the six line display providing easy to read test measurements. A hold data function allows for values to be temporarily be frozen on the screen.
Capable of performing a number of safety and commissioning functions, the 458s analyser is able to perform Let-by testing, CO safety, combustion efficacy and performance. Differential pressure and temperature can also be measured as well as CO, CO2, NO (optional sensor) and O2 thanks to the integrated sensors. With a hard plastic body and. Scratch and drop resistant, the Kane 458s if protected both in the field and in transport. Further protection is offered with the included Kane carry case.
Kane Link
The Kane 458s is compatible with Kane Link allowing for wireless connection to all Kane products which feature Kane Link. Kane Link will allow for the easy balancing of heating systems, check A/C units or kitchen fans, test rooms for CO and many more applications. Kane Link allows for the collection of data and store it on the same device,
Kane Live
The Kane Live App is compatible with Android devices and free to download from the Google Play store. The multilingual Lopo allows for test results to viewed in real time and tag them with real time GPS data and printouts even when on site. Printouts can be shared with colleagues or customers with downloaded analyser logs as CSV files
Kane Care
5 Year Service Plan (Option)
With KANE’s 5 Year Service Plan, you can be assured that the first 4 service and recalibration are taken care of providing you with 5 years of cover for your new analyser with no further costs to worry about.
By selecting this option, not only will you save over £100 on recalibration costs, but you will also benefit from the following:
- No additional service and calibration costs for the first 5 years
- Free collection and delivery options for annual service and recalibration
- SAME DAY service and recalibration
- No quibble repairs and no hidden costs
- Theft protection – in the unfortunate event that your analyser is stolen, KANE will replace it for FREE!
Complete peace of mind for less than 22p per day.
Simply check the box ‘Add KANE 5 Year Service Plan’ when you place your order, and your new analyser with ship with a 5 year service pack.
After Sales Support
This product also qualifies for Kane Care after sales support, guaranteeing you a 10 year 'No Quibble' warranty for your annual service, same day service & recertification and free tracked, next day delivery to Kane with returns.
All Kane Flue Gas Analysers come with the after sales support as standard.
For more information, please visit Kane.co.uk.
Kane 458s comparison table
The Kane 458s is available as a standalone product or as part of a kit. The table below shows a comparison table with all the different options available:
Standalone Analyser | Standard Kit | PRO Kit | Pro Kit 2 | CPA1 Kit | CPA1 Kit 2 | Oil Kit | COM-CAT Kit | CMDDA1 Kit | |
---|---|---|---|---|---|---|---|---|---|
Kane 458s Flue Gas Analyser | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Wireless Connectivity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Probe | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Pressure Connectors | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CO Sensor Purge Pump Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
KANE IRP-3 Infra-red printer | - | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Air/liquid temperature probe | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
GLD450 Plus Gas Leak Detector | - | - | ✔ | ✔ | ✔ | ✔ | - | - | - |
Pipe Clamp Temperature Probes | - | - | 2 | - | 2 | - | - | - | - |
Pressure connection hose | - | - | ✔ | - | ✔ | - | - | - | - |
ASP3 Appliance Sampling Probe Kit | - | - | - | - | ✔ | ✔ | - | - | - |
Oil Gauge test kit | - | - | - | - | - | - | ✔ | - | - |
Kane MSP Smoke Test Kit | - | - | - | - | - | - | ✔ | - | - |
Calibration Report | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Carry Case | - | ✔ | ✔ | - | ✔ | - | ✔ | ✔ | ✔ |
WPCP Wireless Clamp on pipe probes | - |
- |
- | 2 | - | 2 | - | - | - |
Kane 20106 Backpack | - | - | - | ✔ | - | ✔ | - | - | - |
DTHA 2 Airflow | - | - | - | - | - | - | - | ✔ | - |
Temperature & RH Probe | - | - | - | - | - | - | - | ✔ | - |
20128 extender | - | - | - | - | - | - | - | ✔ | - |
Kane 79 CO Monitor | - | - | - | - | - | - | - | - | ✔ |
CPS1 room CO test probe | - | - | - | - | - | - | - | - | ✔ |
Kane Flue Gas Analyser Series
The Kane 458s Flue Gas Analyser includes more advanced features than the Kane 258 and 358 analsyers, such as CO safety checks and an optional NO sensor. The Kane 358 Flue Gas Analyser is a highly useful tool capable of completing a variety of tasks crucial for commissioning and performing maintenance on gas systems & boilers. Whilst with less features, the 258 is a more affordable package and an ideal entry level Flue Gas Analyser.
Kane 258 | Kane 358 | Kane 458s | |
---|---|---|---|
Features | Yes | Yes | Yes |
Temperature Measurment | Yes | Yes | Yes |
Wireless Connectivity | Yes (Option) | Yes (Option) | Yes |
Pressure Measurment | - | Yes | Yes |
Test Sequences | - | Yes | Yes |
Room CO | - | - | Yes |
Sensor Upgrades | - | - | Yes |
KANE LINK | - | - | Yes |
Indoor Air Quality | - | - | Yes (Option) |
Applications | |||
Combustion Performance Checks | Yes | Yes | Yes |
Combustion Efficiency Checks | Yes | Yes | Yes |
Flue Draughts | - | Yes | Yes |
Boiler Commissioning Test | - | Yes | Yes |
Let By & Tightness Tests | - | Yes | Yes |
CO safety checks | - | - | Yes |
Measures | |||
CO 0 - 2,000pm | Yes | Yes | Yes |
O2 0 - 21% | Yes | Yes | Yes (option) |
Differential Temperature | - | Yes | Yes |
Differential pressure meter +/- 80mbrar | - | Yes | Yes |
CO2 direct with an Infra-Red sensor 0 - 20% | - | - | Yes |
NO 0 - 600ppm | - | - | Yes (option) |
CO 0 - 10,000ppm | - | - | Yes (option) |
Calculates | |||
CO2 0 - 20% | Yes | Yes | Yes |
CO / CO2 ratio | Yes | Yes | Yes |
Excess Air | Yes | Yes | Yes |
Combustion Efficiency | Yes | Yes | Yes |
O2 | - | - | Yes |
Contents | |||
FGA CP2 Probe | Yes | Yes | Yes |
USB Charger | Yes | Yes | Yes |
IRP-3 Infrared Printer | Yes (option) | Yes (option) | Yes (option) |
Carry Bag | Yes (option) | Yes (option) | Yes (option) |
Pressure Connectors | - | - | Yes |
GLD Gas Leak Detector | - | Yes (option) | Yes (option) |
KAL1 & KPCP Pipe Clamp Temperature Probes | - | Yes (option) | Yes (option) |
HARHOSE Pressure tubing | - | Yes (option) | Yes (option) |
KANEMSP & SP9 Smoke Pump & Papers | - | Yes (option) | Yes (option) |
ASP3 Oven & Grill Probes | - | Yes (option) | Yes (option) |
Oil Pressure test set | - | Yes (option) | Yes (option) |
Key Features
- Carbon monoxide measurement 0 to 20%
- Carbon dioxide measurement 0 to 2000ppm
- Kane IRP-3 infrared printer included
- Kane79 CO meter
- CPS1 room CO test probe stand with carry bag
- Analyser has built-in wireless communication
- Measures differential pressure and temperature
- Hydrogen ready (H2 up to 20% blend)
- Calculate CO/CO2 ratio
- Calculate oxygen content
- Calculate excess air
- Efficiency calculation
- Let by/tightness testing
- Automatic commissioning test sequence for boilers
- Purge pump system protects CO sensor from over range
- Suitable for wide variety of fuels
- Kane 10 Year Warranty
Kane part number: 458s CMDDA1 Kit
